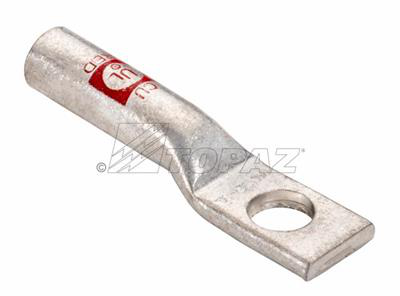

One Hole - Long Barrel Compression Lugs, 3/0 Wire, 3/8" Bolt Size, Orange Color Code
SKU: #173292
Part: #3008
UPC: 751338410572
One Hole - Long Barrel Compression Lugs, 3/0 Wire, 3/8" Bolt Size, Orange Color Code
SKU: #173292
Part: #3008
UPC: 751338410572
Total Price: $3 per each Sold in increments of 1 each
Description
One Hole - Long Barrel Compression Lugs, 3/0 Wire, 3/8" Bolt Size, Orange Color Code - Copper Compression Lugs
Topaz One Hole Long Barrel Compression Lugs are designed for reliable electrical connections in wire and cable applications. Fabricated from high conductivity copper tubing and tin plated for corrosion resistance, these lugs are suitable for grounding and direct burial installations. They are color coded for easy identification and UL listed, making them a dependable choice for electrical distributors and switchgear suppliers.
Specifications
- Manufacturer: Southwire
- Manufacturer Part #: 3008
- Cable Size: 3/0 AWG
- Bolt Size: 3/8"
- Number of Holes: 1
- Amperage Rating: 486 AMP
- Material: Copper
- Color: Orange
- Product Weight: 0.0920 lb
Features
- High conductivity copper tubing construction
- Tin plated finish for corrosion resistance
- Color coded for easy wire size identification
- Withstands high mechanical stress
- UL listed for safety and reliability
- Suitable for direct burial in earth or concrete
- Ideal for grounding applications
