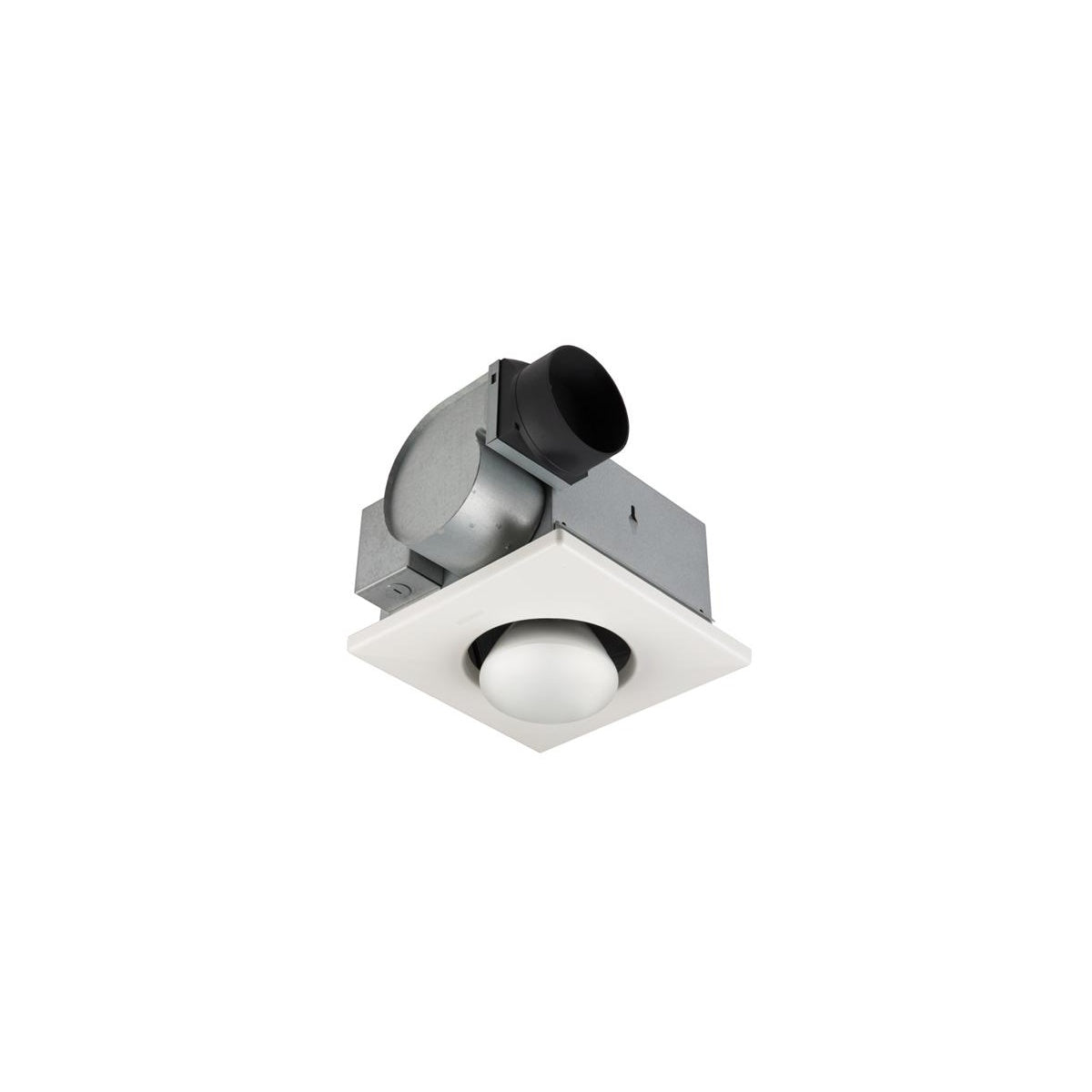

One-Bulb Heater/Fan, 250W Bulb, 70 CFM Ventilation Fans

The NuTone One-Bulb Heater/Fan model 9417DN provides silent warmth combined with powerful ventilation, ideal for smaller bathrooms and insulated ceilings. This compact unit offers energy-saving infrared heat along with ventilation, making it a practical solution for electrical distributors and lighting solutions providers seeking reliable wire and cable compatible heating and ventilation products. The heater and fan operate separately or in combination, delivering up to 70 CFM airflow while maintaining a low sound level of 4.0 sones, certified by the Home Ventilating Institute (HVI).

Specifications

• Model Number: 9417DN
• Manufacturer: NuTone
• Power: 250W BR40-size infrared bulb (bulb not included)
• Voltage: 120V
• Current: 2.5 Amps
• Airflow: 70 CFM
• Sound Level: 4.0 sones
• Duct Size: 4" round
• Weight: 7.4 lbs
• UL Listed
• Suitable for insulated ceilings (Type I.C.)

Features

• Corrosion-resistant steel housing with adjustable mounting brackets spanning up to 24"
• Housing can be vertically adjusted after ceiling installation
• Plug-in, permanently lubricated motor assembly for easy maintenance
• Quiet polymeric blower wheel and polymeric damper/duct connector with tapered sleeve to eliminate metallic clatter
• Heater and ventilator functions controllable separately or in combination
• Compatible with multiple wall control models for time and function management

Downloads & Links

• Selection Guide
• Spec Sheet
• Installation Guide
