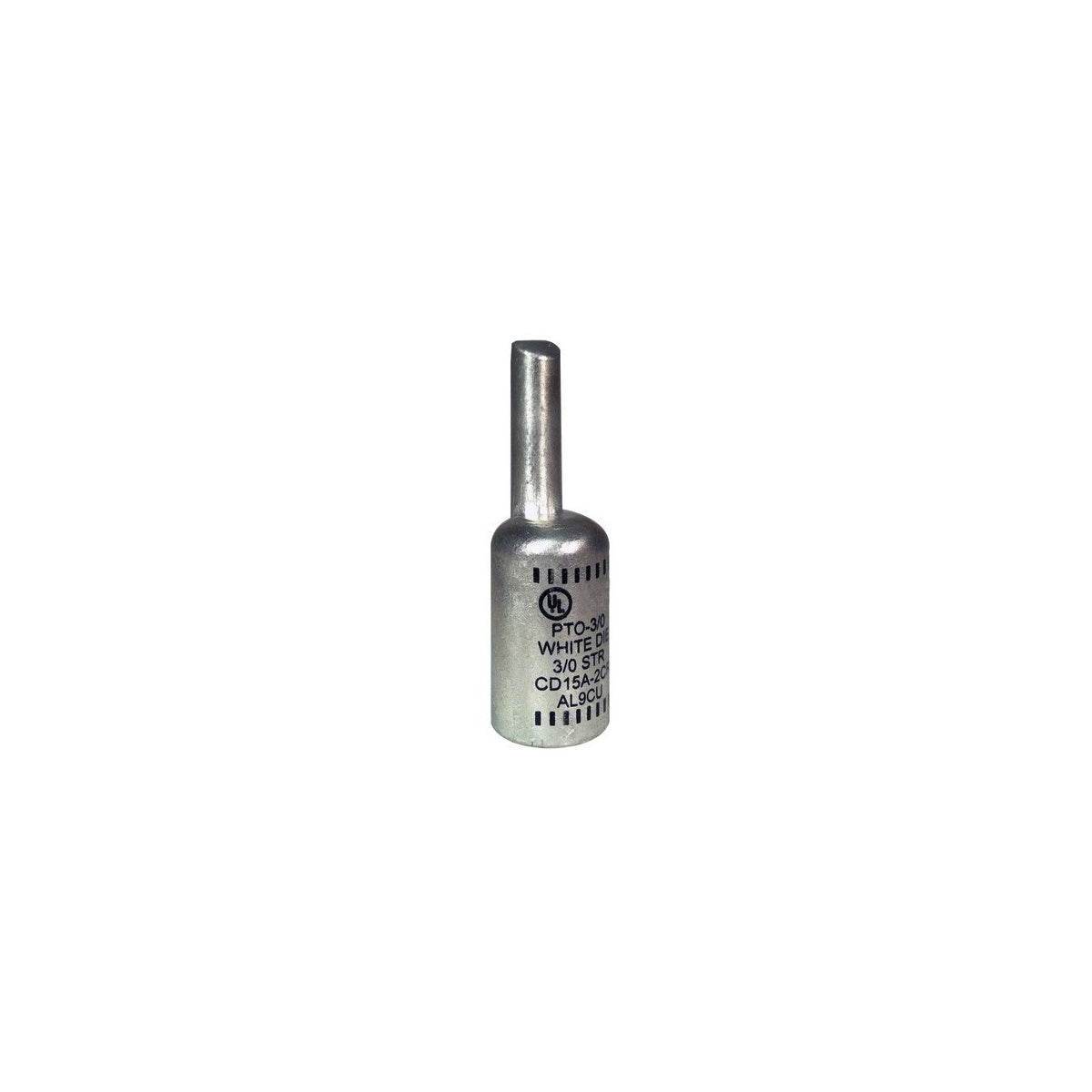

Offset Solid Pin Terminal Connectors 250 MCM To 3/0
SKU: #277381
Part: #90988
UPC: 601986909884
Offset Solid Pin Terminal Connectors 250 MCM To 3/0
SKU: #277381
Part: #90988
UPC: 601986909884
Total Price: $17.29 per piece Sold in increments of 1 piece
Description
Offset Solid Pin Terminal Connectors 250 MCM To 3/0 – Electrical Wire and Cable Connector
Offset Solid Pin Terminal Connectors 250 MCM to 3/0 are designed for reliable cable terminations, specifically facilitating connections between aluminum and copper conductors. These connectors are suitable for electrical distributors and switchgear suppliers seeking durable solutions for wire and cable installations in lighting solutions and electrical systems.
Specifications
- Material: 6061-T6 Aluminum Alloy
- Voltage Rating: 600 V
- Wire Range: #6 thru 750 MCM (Conductor Size), #4 thru 500 MCM (Pin Size)
- Color Coding: Red
- Product Weight: 0.2400 lb
- Manufacturer Part #: 90988
- UL Certified: Yes
- cUL Certified: Yes
- RoHS Compliant: Yes
Features
- Manufactured from high strength, high conductivity aluminum alloy
- Electro tin plated for enhanced corrosion resistance
- AL9CU rated for use with both copper and aluminum conductors
- Oxide inhibitor coated barrel to prevent oxidation
- EDPM rubber insulating cover for electrical insulation and durability
