Morris Products
Offset Solid Pin Terminal Connectors 2/0 To #1
SKU: #277371
Part: #90985
UPC: 601986909853
Morris Products
Offset Solid Pin Terminal Connectors 2/0 To #1
SKU: #277371
Part: #90985
UPC: 601986909853
Next day delivery
Description

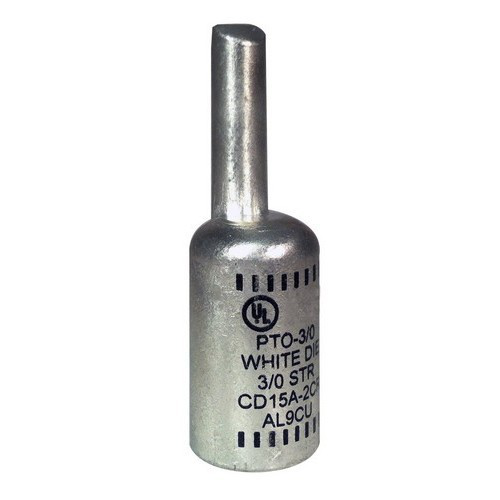

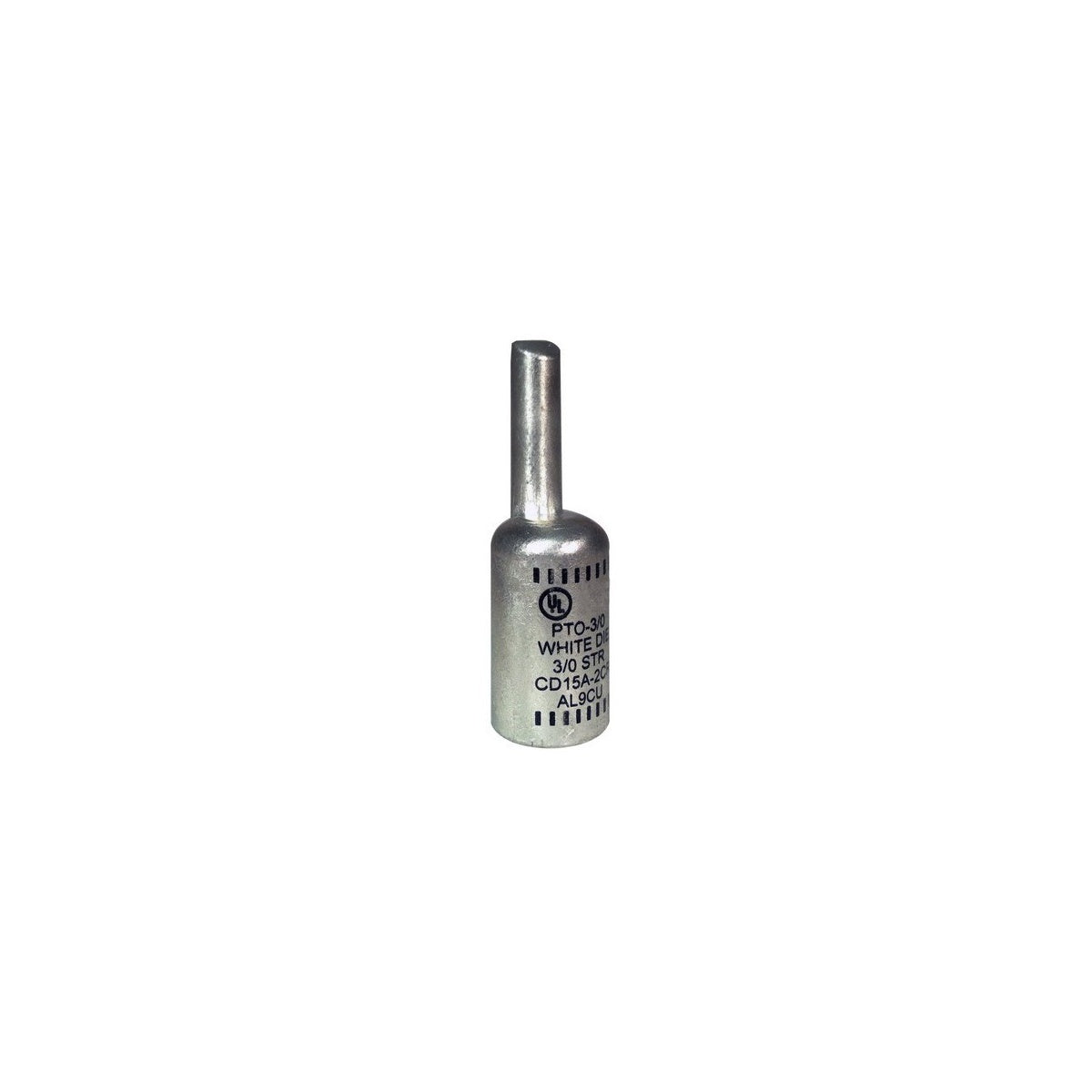

Offset Solid Pin Terminal Connectors 2/0 To #1 – Electrical Wire and Cable Connector
Offset Solid Pin Terminal Connectors 2/0 To #1 are designed for reliable electrical connections between aluminum and copper conductors. These connectors are suitable for use in electrical distribution systems, lighting solutions, and wire and cable installations where secure, bi-metallic terminations are required. Manufactured by Morris Products, these connectors provide compatibility for aluminum to copper cable terminations, making them a practical choice for switchgear suppliers and electrical distributors.
Specifications
- Material: 6061-T6 Aluminum
- Color Coding: Olive
- Voltage Rating: 600 V
- Wire Range: 2/0 AWG Cable to #1 Pin
- Product Weight: 0.15 lb
- UL Certified: Yes
- cUL Certified: Yes
- RoHS Compliant: Yes
Features
- Manufactured from high strength, high conductivity aluminum alloy
- Electro tin plated for corrosion resistance
- AL9CU rated for use with both copper and aluminum conductors
- Oxide inhibitor coated barrel to prevent oxidation
- EDPM rubber insulating cover for enhanced insulation
