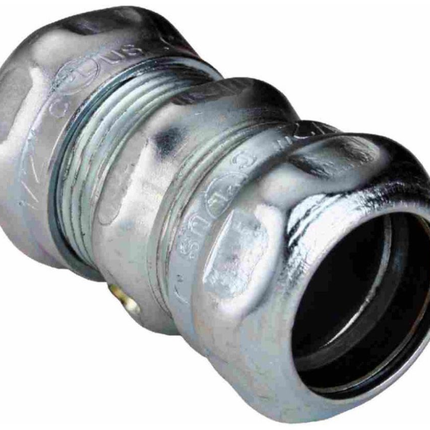

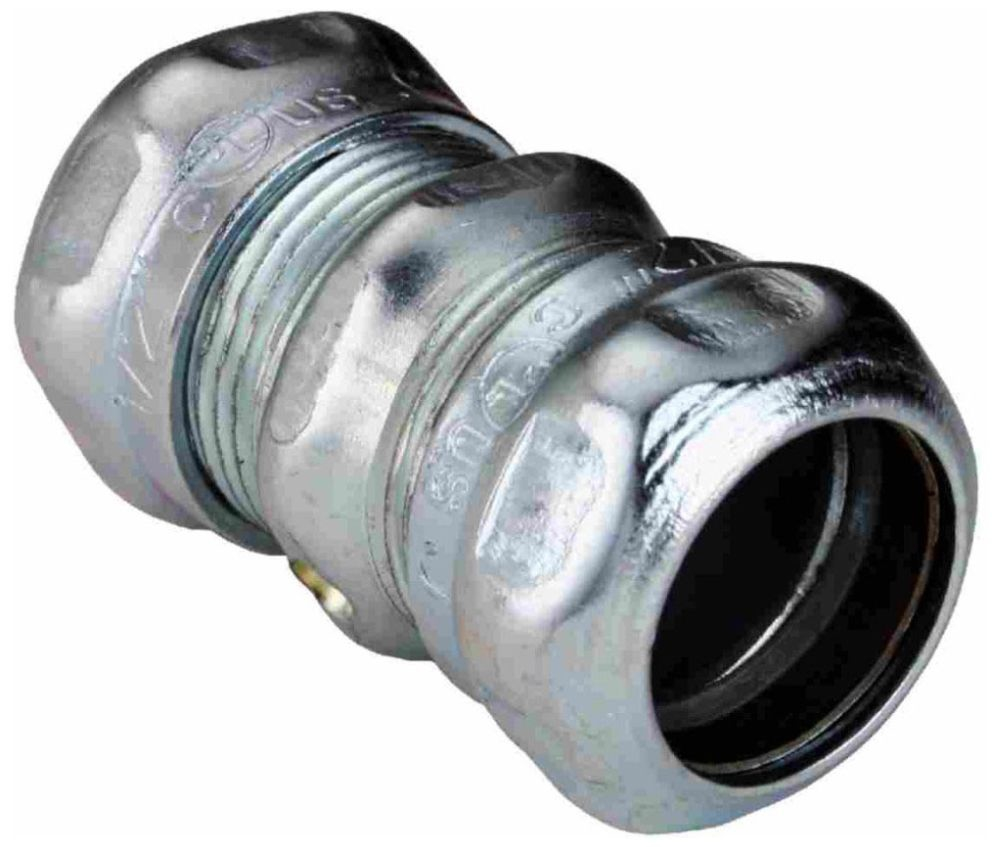

OF7613, EMT Coupling – Steel EMT Compression Coupling

The OF7613 EMT Coupling by Orbit Industries is a steel compression coupling designed to connect two EMT thinwall conduits, extending the raceway system. This product is suitable for electrical distributors and lighting solutions providers requiring reliable wire and cable conduit connections. It ensures mechanical protection and secure conduit joints, supporting applications above 600V. The coupling is electroplated with zinc for corrosion resistance, making it appropriate for various commercial and industrial electrical installations.

Specifications

• Manufacturer: Orbit Industries
• Manufacturer Part #: OF7613
• Material: Zinc Electroplated Steel
• Length: 1.732 Inch
• Diameter: 1.378 inches
• Product Weight: 3.2300 lbs
• Trade Size: 1 inch
• UL Certification: UL file E310660 (1/2” to 2”), UL file E310658 (2-1/2” to 4”)

Features

• Steel construction for mechanical protection
• Electroplated zinc finish for corrosion resistance
• Concrete-tight when taped
• Suitable for applications above 600V
• Compression type coupling for secure conduit connection
• Sizes 2-1/2" to 4" also compatible with rigid and IMC conduits

Downloads & Links

• Specification/Technical
• CAD Drawing
• Catalog
