Oe Box Vapor Boxes for Devices. Flange forms a protective barrier against air infiltration. 2 Hour Fire Rating. Three Gang. Screw On. 59 cu.
SKU: #390641
Part: #F103F
UPC: 018997069016
Oe Box Vapor Boxes for Devices. Flange forms a protective barrier against air infiltration. 2 Hour Fire Rating. Three Gang. Screw On. 59 cu.
SKU: #390641
Part: #F103F
UPC: 018997069016
Description

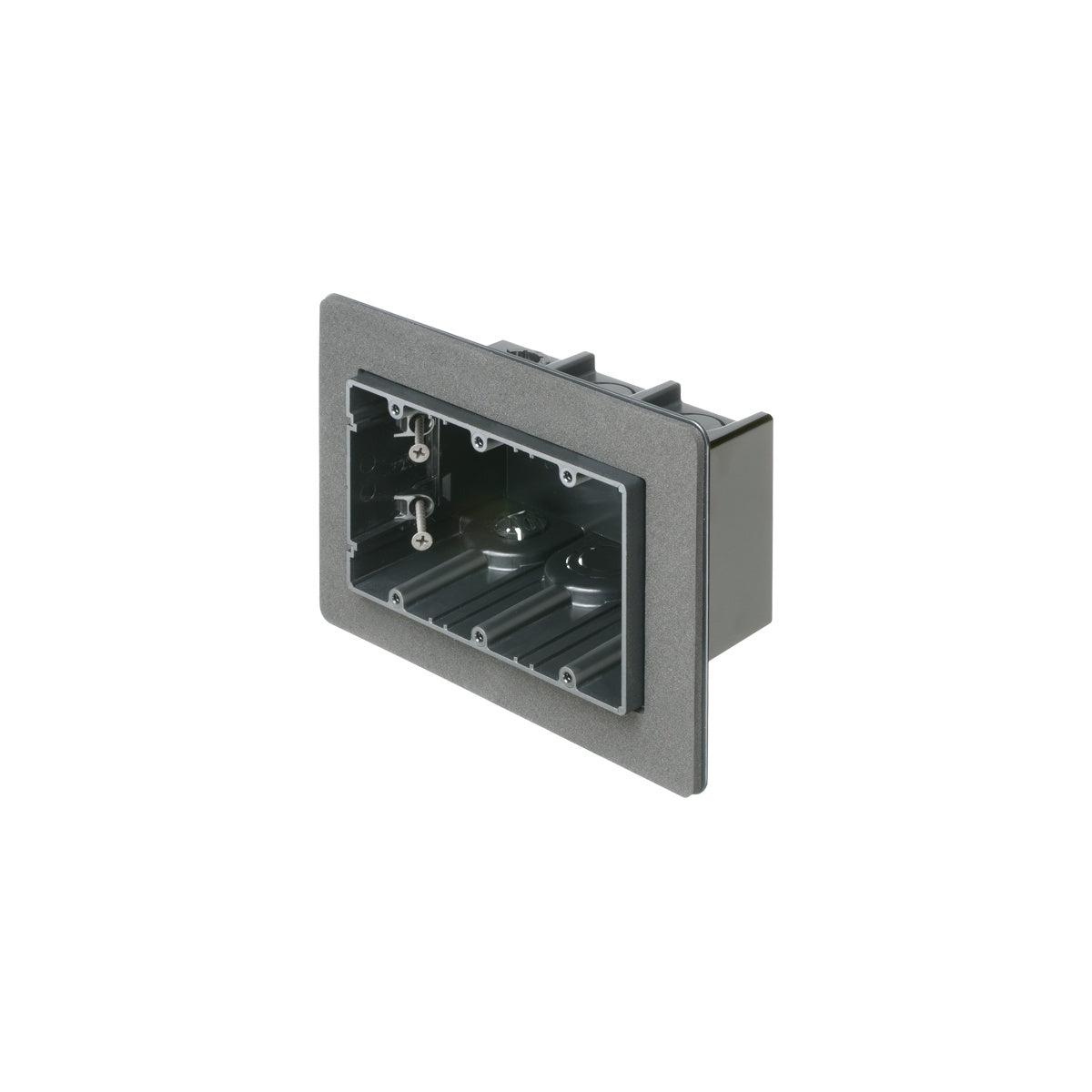

Oe Box Vapor Boxes for Devices - Vapor Barrier Electrical Box
The Oe Box Vapor Boxes for Devices by Arlington Industries are non-metallic, plastic electrical boxes designed to prevent air infiltration in new construction. Featuring an integrated flange with gasket material, these vapor boxes provide a protective barrier against air leakage, enabling compliance with residential building codes. Ideal for use by electrical distributors and lighting solutions providers, these boxes are suitable for multi-gang device installations and compatible with standard NM cable connectors.
Specifications
- Manufacturer: Arlington Industries
- Manufacturer Part #: F103F
- Material: Plastic
- Color: Black
- Product Weight: 0.5080 lbs
- UPC: 018997069016
- Size: Three-gang
- Volume: 59 cubic inches
- Mounting: Screw-on
- Fire Rating: 2 Hour
Features
- Built-in flange with gasket attached to form an air infiltration barrier
- Non-metallic and non-conductive construction for safety
- Ships with captive mounting screws for secure installation
- Pre-installed NM cable connectors with gasket material
- Designed for new construction with single or double drywall
- UL and CSA Listed for compliance
