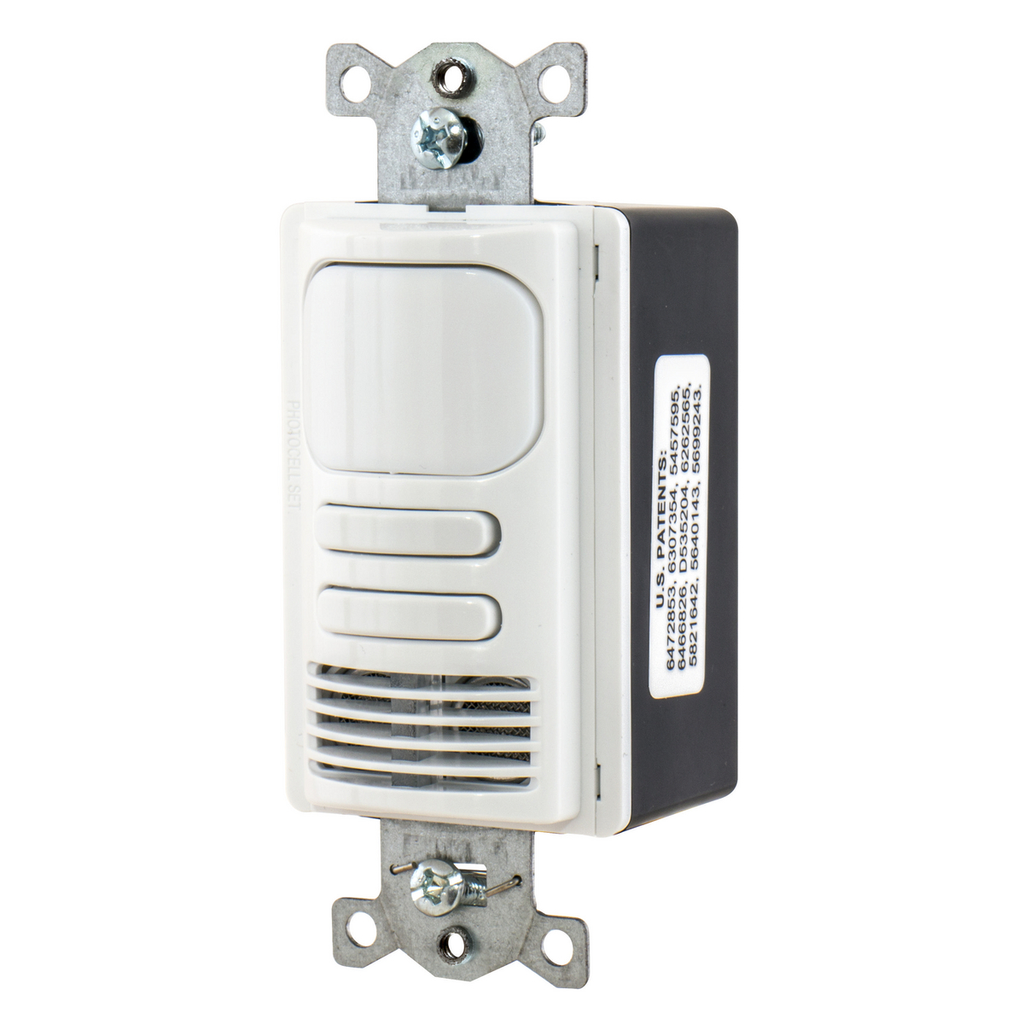

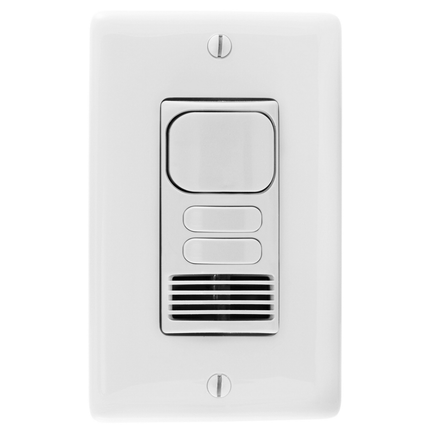

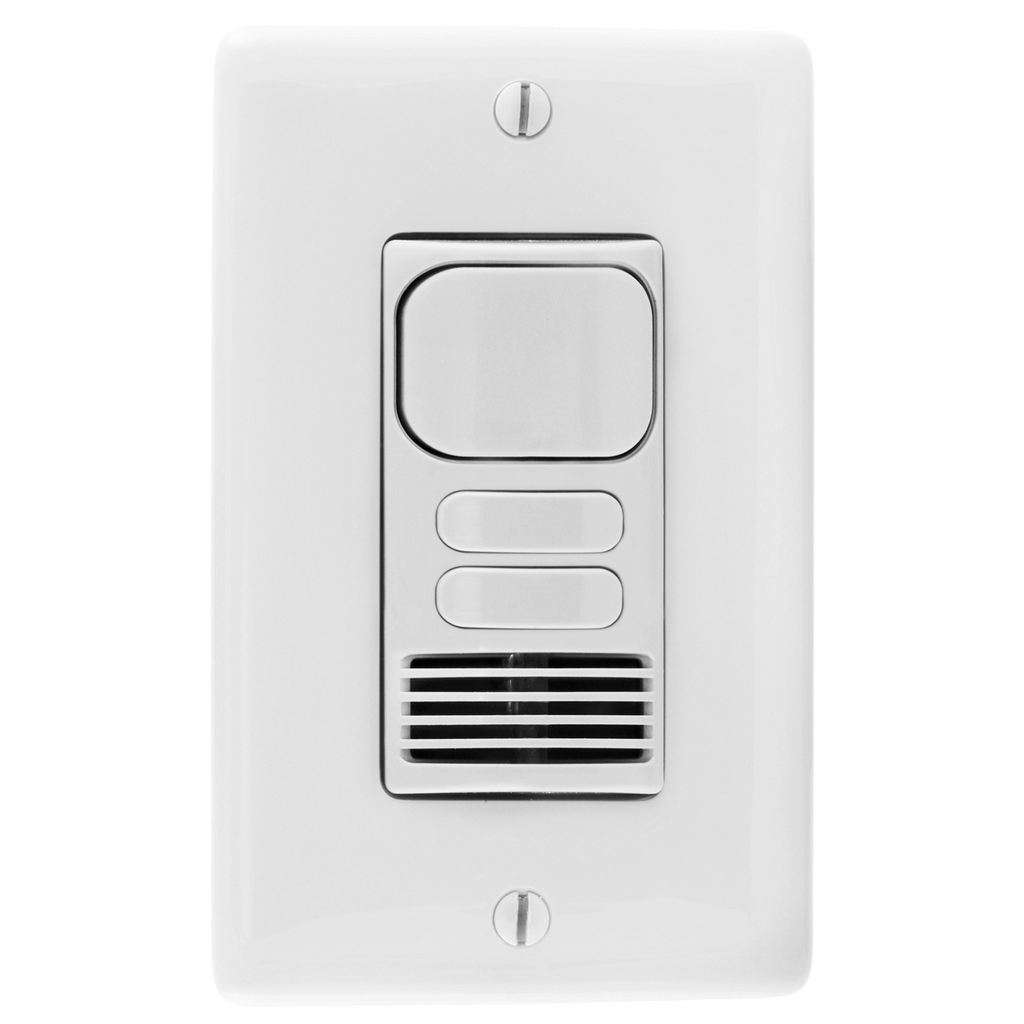

Occupancy/Vacancy Sensors, Wall Switch,Adaptive Dual Technology, 2 Circuit, 120/277V AC, White
SKU: #136871
Part: #AD2000W22
UPC: 783585428499
Occupancy/Vacancy Sensors, Wall Switch,Adaptive Dual Technology, 2 Circuit, 120/277V AC, White
SKU: #136871
Part: #AD2000W22
UPC: 783585428499
Description
Occupancy/Vacancy Sensors Wall Switch with Adaptive Dual Technology
This Hubbell Wiring Device-Kellems occupancy/vacancy sensor wall switch utilizes adaptive dual technology, combining passive infrared and ultrasonic detection to provide reliable occupancy sensing for lighting control. Designed for indoor dry environments, it supports 2-circuit control at 120/277V AC, making it suitable for electrical distributors and lighting solutions that require energy-efficient automation. The device is ideal for decorator-style applications, offering manual and automatic control modes to optimize lighting use and energy savings in commercial and residential settings.
Specifications
- Manufacturer Part #: AD2000W22
- Color: White
- Application: Decorator
- Voltage: 120/277V AC, 50/60Hz
- Load Capacity: 0-800W Incandescent, Electronic Ballast, LED Driver, 1/6 hp at 120V; 0-1800W Electronic/Magnetic Ballast, LED Driver, 1/6 hp at 277V
- Dimensions (Width): 3.4 in
- Weight: 19.0 oz
- Environmental Conditions: Indoor Dry Unless Protected by Additional Means
- Operating Temperature: 32°F to 104°F (0°C to 40°C); 0% to 95% non-condensing relative humidity
- Mounting Height: 42 to 54 inches above floor
- Wire Leads: #18 AWG stranded wire, 6” long with ½” stripped ends
- Housing: High impact plastic (UL-94-5V)
- Mounting Strap: Plated steel
- Lens: Dual element pyrometer and 12 element cylindrical hard lens
- Sensing Indicator: Passive Infrared (Red LED), Ultrasonic (Green LED)
- UPC: 783585428499
- Country of Origin: China
Features
- Adaptive dual technology sensing combining passive infrared and ultrasonic detection for accurate occupancy sensing
- Built-in photocell with manual super saver mode for daylight harvesting
- Impact resistant hard lens, color matched to the switch
- Adjustable ambient light override from 10 to 500 foot candles
- Auto/manual "ON" operating mode with adaptive digital time delay from 4 to 30 minutes
- Coverage area up to 1000 square feet based on passive infrared minor motion pattern
- cULus Listed, Meets ASHRAE 90.1, and CEC Title 24 Certified
