Features

• Sensors combine both PIR and U/S technology for unrivaled performance and reliability. Sensors use PIR technology to initially turn lights ON, and use U/S technology to keep the lights ON. Exclusive false-detection software assures lights are ON only when needed.
• Auto-Adapting: Time delay and sensitivity are continually adjusted to occupancy pattern of use
• Configurable for Manual ON/Auto OFF or Auto ON/Auto OFF
• Delayed OFF Timer: The sensor will turn lights OFF if no motion is detected after a specified time
• Exclusive Walk-through Feature: Provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy
• False Detection Timer: (M/T) The PIR scans for movement and shuts lights off after 31 minutes preventing false triggers from HVAC systems
• Time delay and saved settings are protected during power outages and will return to the last known state
• Output short circuit protection
• Industry-exclusive self-configuring local manual switch input: Momentary or maintained switches are supported
• Presentation Mode feature for slide or film presentations allows push buttons to turn lights OFF and keep them OFF while the room is occupied
• Adjustable Time Delay: 30s, 5min, 10min, 20min, 30min
• Test Mode for simplified commissioning
• Manual Switch and Emergency Override are Class 1 and Class 2 circuits. Class 2 circuits provided for flexibility
• Industry-exclusive "fail-safe" circuitry: In the event of product failure, Return-to-Closed feature causes the relay to default ON which eliminates life safety concerns
• Industry-exclusive H.I.S. (High Inrush Stability) technology designed to handle today’s high inrush electronic ballast loads and offer unmatched durability and service
• Robust and reliable mechanically held 10A latching relay provides dependability and robust performance for all load types and provides energy savings over electronically held relays

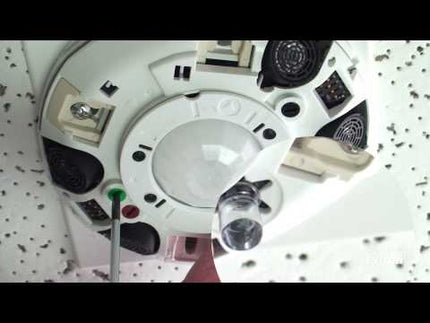

• Lenses are easily replaceable and color-coded red (mid-range) and black (extended range) for contractors and end-users to easily identify lenses from the ground
• Red Visual LED indicator - Blinks when infrared is detecting motion and during photocell manual calibration; solid during device malfunction
• Green Visual LED indicator - Blinks when U/S is detected; solid during auto calibration
• Yellow Visual LED indicator - Blinks during test mode; solid with emergency/BMS input
• The Leviton Provolt™ Series combine line voltage occupancy sensors and photocells into a self-contained unit. The integrated design alleviates the need for separate power pack and occupancy sensor wiring making it a low-cost, efficient energy solution for new construction and retrofits. Do you have a question about an occupancy sensor or vacancy sensor? Contact us to learn more.

Specifications

• Country of Origin: China
• RoHS Compliant: False

Product Features

• Application: Code Compliance, Auto ON/Auto OFF, Manual ON/Auto OFF
• Color: White
• Feature: Line Voltage
• Grade: Commercial
• Mounting: Ceiling Mount
• Product Line: Provolt
• Sensor Technology: Multi-Technology: Passive Infrared (PIR)/Ultrasonic (US)
• Sensor Type: Occupancy, Photocell
• Title 24 Compliant: Yes

Performance Specifications

• Coverage (Sq.Ft.): 2000
• Pattern: 360°

Electrical Specifications

• Current Consumption: 60-30ma
• Frequency: 50/60Hz
• Load Rating: 120V, 50/60Hz: 8A, Electronic Ballast, 800W/VA, Tungsten, Ballast, 1/4 HP Motor - 230V, 50Hz: 6A/6AX, Electronic Ballast, Magnetic Ballast, 1200W/VA, 1/3 HP Motor - 277V, 50/60Hz: 5A, Electronic Ballast, 1200VA, 1/3 HP Motor
• Neutral Wire Connection: Required
• Voltage: 120/230/277 VAC

Standards and Certifications

• Listings: Can be used to comply with IECC, ASHRAE 90.1 and Title 24, Part 6 occupancy/vacancy sensing, automatic shut off and daylight harvesting requirements, UL 773A (Occupancy Standard), UL 924 (Emergency Equipment), cUL listed, CE compliant, NOM certified, RoHS compliant, NY LLC48 compliant

Mechanical Specifications

• Mounting Type: Ceiling Mount
• Size: Width 4.80" (121.92mm), Depth 2.39" (60.71mm)

Type

• Product Type: Occupancy Sensor and Photocell

Environmental Specifications

• Relative Humidity: 0% to 90% non-condensing
• Storage Temperature Range: -15° to 160°F (-26° to 71°C)

Warranty

• Warranty: 5-Year Limited

Downloads

Product Specification

Instruction Sheet

Solution Sheets

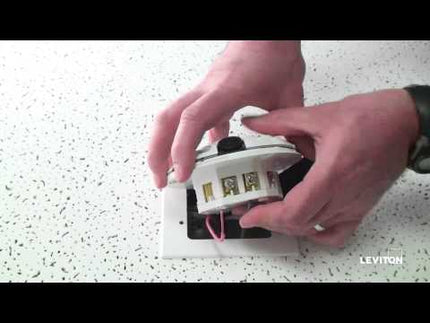

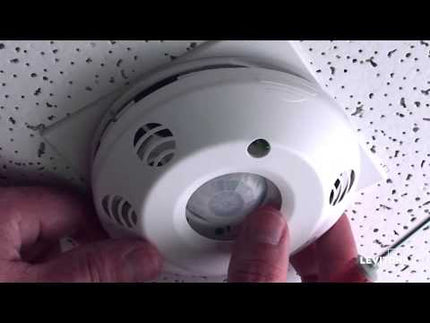

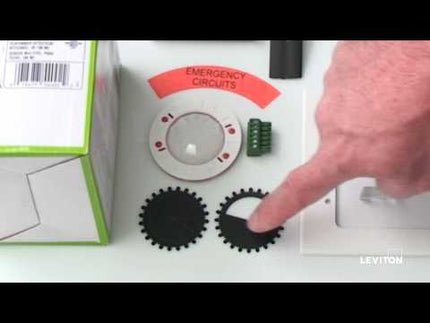

Videos
