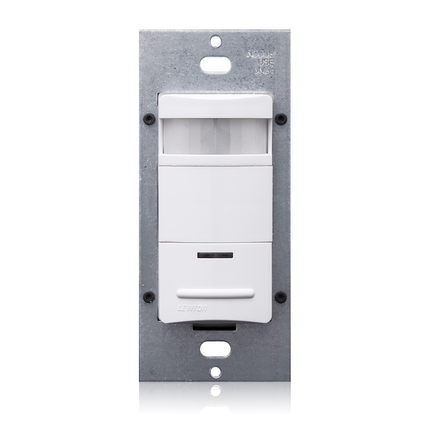

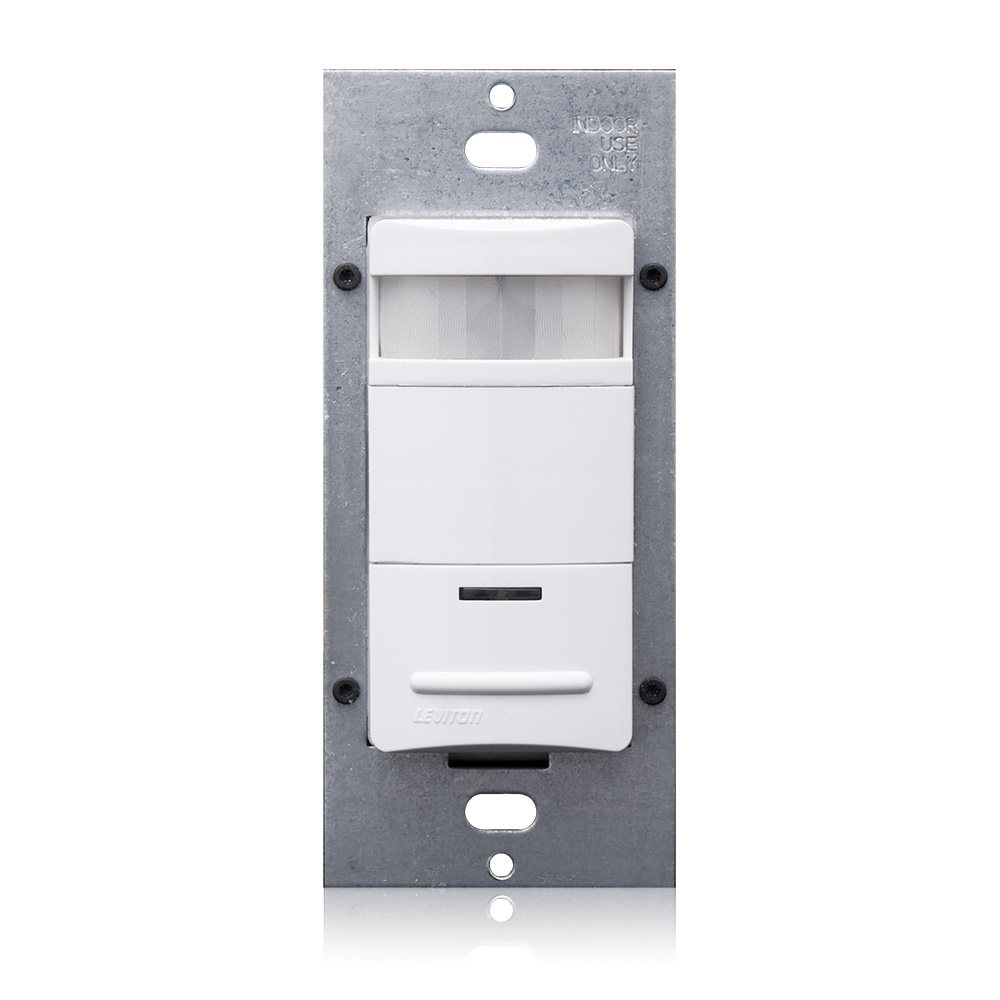

Features

• Fits in standard wallbox and replaces single-pole wall switch. Gangable with other units.
• Low-profile design eliminates obtrusive “scanning-device” look. Elegant Decora styling complements any interior; uses Decora wallplates and coordinates with Leviton’s popular line of Decora wiring devices.
• 180° field-of-view provides approximately 2100 square feet of coverage suitable for small offices, conference rooms, classrooms, lounges and a variety of commercial areas.
• Convenient pushbutton provides manual-ON/OFF light switching at any time.
• Two dual element PIR sensors used to widen detection range.
• Segmented Fresnel lens provides optimum sensitivity and performance. Designed with an extensive “minor motion” area where even slight body movements will be detected.
• Vandal resistant PIR lens.
• Horizontal field-of-view may be adjusted between 180° and 60° of arc by using integral blinders located on either side of the lens. No masking tape required.
• Manual-ON/auto-OFF mode for installations where manual-ON switching is required but auto-OFF switching is still desired for CEC Title 24 energy savings.
• To comply with T24, red LED indicator light flashes when sensor detects motion to verify detection is active.
• Time Delay adjustment for delayed-OFF time set-tings of 30 seconds (for walking test), 10 minutes, 20 minutes, and 30 minutes. Allows customized adjustments to maximize energy savings.
• Light Sensor Adjustable Ambient Light Override ranges from approximately 2 foot-candles (20 lux) to 500+ foot-candles (5000+ lux) to prevent lights from turning ON automatically during periods of ample natural light, increasing energy savings.
• Light sensor enables the load hold-OFF feature once level has been set.
• Vacancy confirmation - when the time out expires and the lights turn OFF a 30 second vacancy confirmation exists to turn the lights back ON.
• False detection circuitry.
• Presentation Mode feature for slide or film presentations allows push buttons to turn lights OFF and keep them OFF while the room is occupied.
• One unit can be used for 120V through 277V lighting. Compatible with both electronic and magnetic ballasts.
• Relay switches at the zero crossing point of the AC power curve to ensure maximum contact life and compatibility with electronic ballasts.
• Exclusive Leviton H.I.S. Circuitry. Specifically designed to handle today’s high inrush electronic ballast loads and offer unmatched durability and service.
• No neutral design is optional for retrofit applications.

Specifications

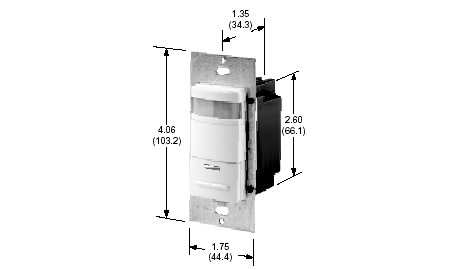

Mechanical Specifications

• Switch Type: Single-Pole
• Neutral Wire Connection: Not Required

Standards and Certifications

• Coverage (Sq.Ft.): 2100
• NAFTA Compliant: Yes
• Color: White
• California Title 24: Yes
• Neutral Wire Connection: Not Required
• Voltage: 120/277 VAC
• Product Line: ODS10
• Technology: Passive Infrared
• Switch Type: Single-Pole

Electrical Specifications

• Frequency: 50/60Hz
• Voltage: 120/277 VAC

Product Features

• Made in USA: Yes
• Coverage (Sq.Ft.): 2100
• Sensor Type: Wall Switch
• Color: White
• Country Of Origin: United States
• Product Line: ODS10
• Technology: Passive Infrared
