Features

• Provides automatic lighting control for two separate banks of fluorescent, incandescent, or low-voltage lighting from a single unit.
• The second relay is a manual-ON only with a maximum 30 minute time-out for maximum energy savings to comply with CEC Title 24.
• Fits in a standard single-gang wall box and replaces two single-pole wall-switches for fast and easy installation; neutral and ground connection required for OSSMD-MD. OSSMD-GD does not require a neutral for installation.
• Low-profile design eliminates obtrusive “scanning-device” look. Elegant Decora wallplates complement any interior for sleek aesthetics; uses Decora wallplates and coordinates with Leviton’s popular line of Decora wiring devices.

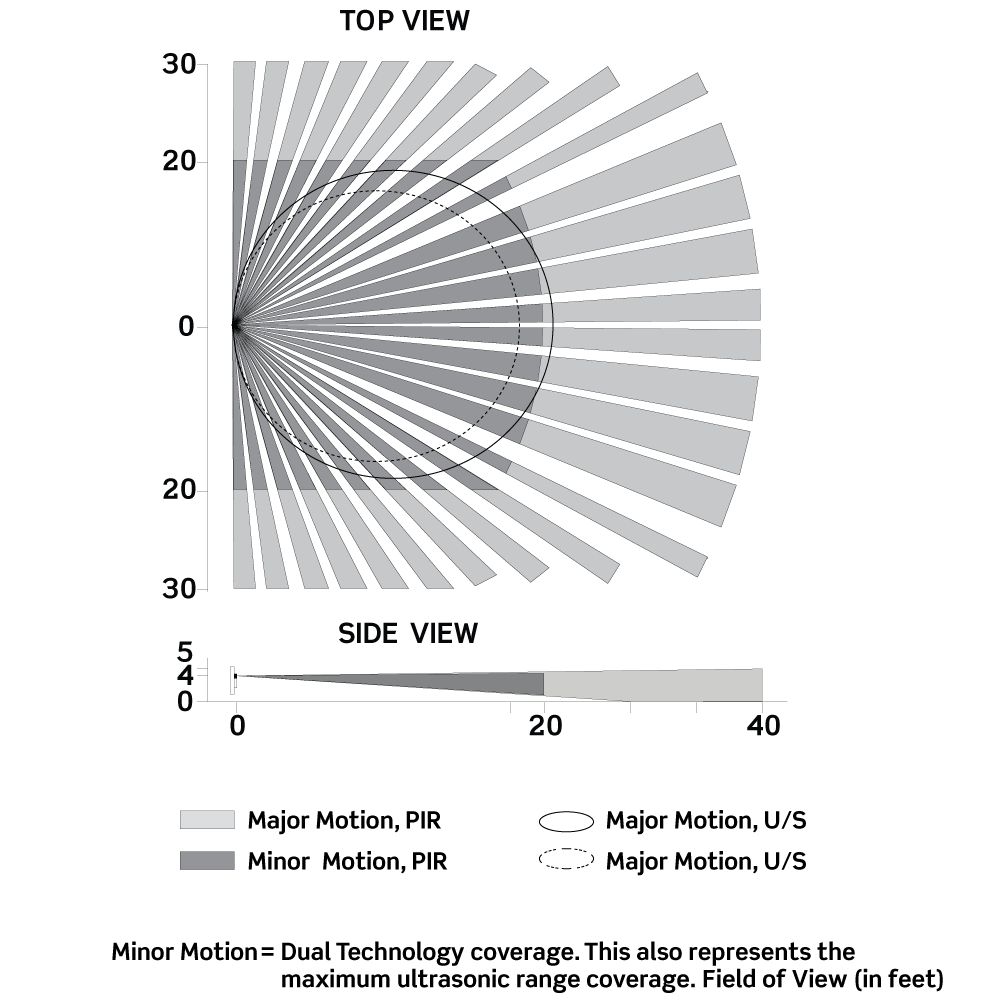

• 180° field-of-view provides approximately 2400 square feet of coverage, suitable for a variety of commercial areas.

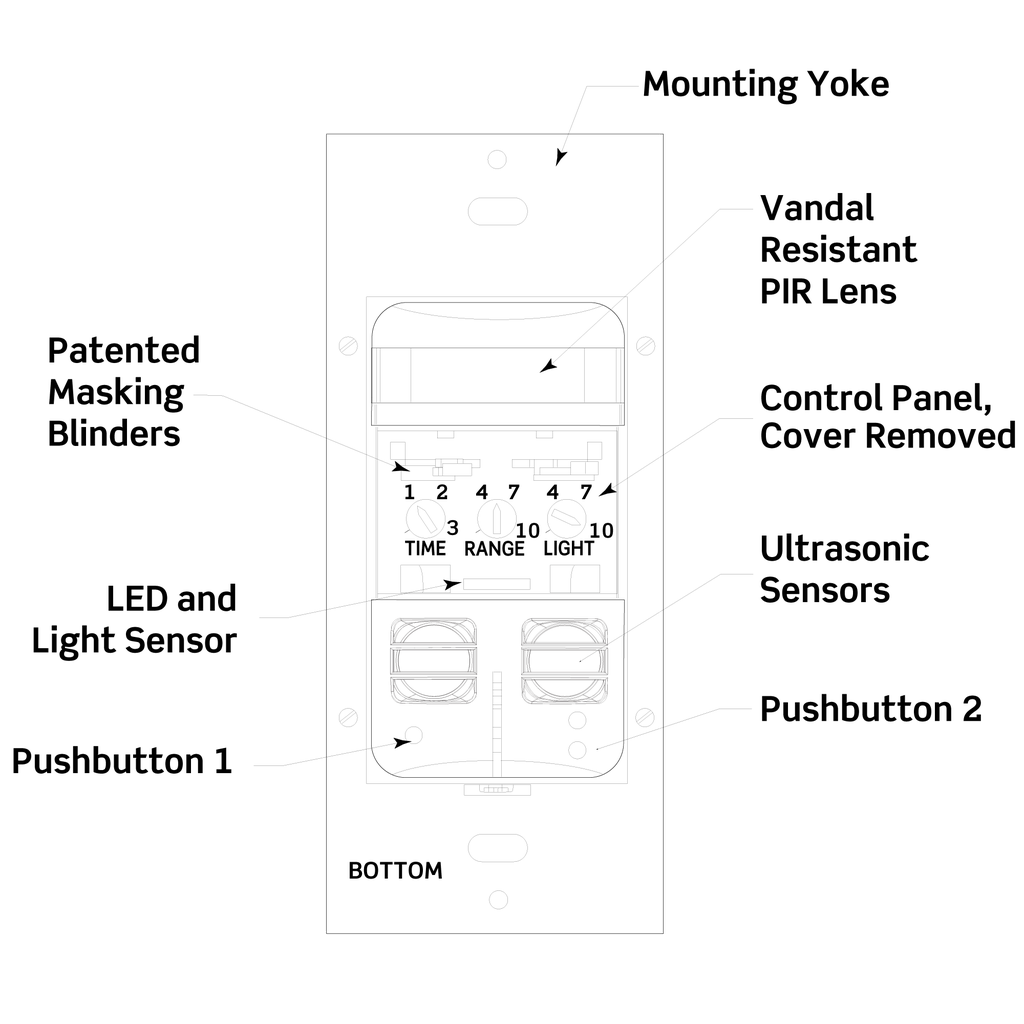

• Convenient pushbuttons provide manual-ON/OFF light switching of each load at any time.
• Segmented Fresnel lens provides optimum sensitivity and performance. Designed with an extensive “minor motion” area where even slight body movements will be detected.
• Vandal resistant PIR lens.
• Adjustable horizontal field-of-view (PIR) may be adjusted between 180° and 60° of arc by using integral blinders located on either side of the lens. No masking tape required.
• Manual-ON/auto-OFF mode for installations where manual-ON switching is required but auto-OFF switching is still desired for CEC Title 24 energy savings.
• To comply with CEC Title 24, LED indicator light flashes when sensor detects motion to verify detection is active. Green flashes for ultrasonic, red flashes for PIR.
• Time delay adjustment for delayed-OFF time settings of 30 seconds (for walking test), 10 minutes, 20 minutes, and 30 minutes. Allows customized adjustments to maximize energy savings.
• Light sensor measures the ambient light in the room when it first detects motion and leaves the lights OFF (hold-off) if there is enough light in the room or turns the lights connected to the first relay ON if there is not enough light in the room.
• Self-Adaptive technology eliminates callbacks for adjustments. Time delay and sensitivity settings are continually adjusted to occupant patterns of use in auto adapt mode.
• Exclusive Walk-Through feature provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy.
• Non-Adaptive Mode disables self-adjusting delayed-OFF time and walk-through feature in applica-tions where these feature are not desired. Optional manual adjustment for delayed-OFF time settings allows customized adjustments to maximize energy savings.
• Vacancy confirmation; when the time out expires and the relay turns OFF, a 30-second vacancy confirmation exists to turn the relays back ON.
• False detection circuitry.
• U/S technology provides excellent minor motion sensitivity.
• Ability to disable PIR or U/S for added flexibility.
• Presentation Mode feature for slide or film presentations allows pushbuttons to turn lights OFF and keep them OFF while the room is occupied.
• Exclusive Leviton High Inrush Stability (H.I.S.) Circuitry. Specifically designed to handle today’s high inrush electronic ballast loads and offer unmatched durability and service.
• One unit can be used for 120V through 277V lighting. Compatible with both electronic and magnetic ballasts.
• True zero-cross relay switches at the zero crossing point of the AC power curve to ensure maximum contactor life and compatibility with electronic ballasts.
• The OSSMD provides automatic lighting control for two separate loads from a single unit. It is compatible with incandescent, fluorescent, low-voltage lighting, and fan loads. The unit features dual manual-override switches that can be used to toggle the ON/OFF status of each lighting load while an area is occupied. The OSSMD can be installed in place of two single-pole wall switches and fits in a standard single-gang wall box. Do you have a question about an occupancy sensor or vacancy sensor? Contact us to learn more.

Color Variations

• Light Almond

Patents

• MX303643
• US8115626
• US8502660

Specifications

• Country of Origin: Mexico
• RoHS Compliant: False

Product Features

• Application: Private and Executive Offices, Conference Rooms, Classrooms, Restrooms, Storage Areas, Training Areas, Multimedia Rooms, Day Care Centers, Lounges, Retrofits, Bi-Level or A/B switching, Multi-location Switching
• Color: Black
• Grade: Commercial
• Mounting: Wall Switch
• Product Line: OSSMD
• Sensor Technology: Multi-Technology: Passive Infrared (PIR)/Ultrasonic (US)
• Sensor Type: Occupancy
• Time Delay: 30s-30m

Performance Specifications

• Coverage (Sq.Ft.): 2400
• Pattern: 180°
• USMCA Compliant: Yes

Electrical Specifications

• Frequency: 50/60Hz
• Load Rating: Primary Relay: LED:10A @ 120V 10A @ 277V Fluorescent: 1200VA @ 120V 2700VA @ 277V Incandescent: 800W @ 120V - Secondary Relay: LED:10A @ 120V 10A @ 277V Fluorescent: 800VA @ 120V 1200VA @ 277V Incandescent: 800W @ 120V Motor: 1/4 HP
• Neutral Wire Connection: Required
• Power Consumption: 120V 210mW, 277V 410mW
• Voltage: 120/230/277 VAC
• Wiring: Primary Relay: No. 16 AWG leads: Line: Black, Load: Blue Ground: Green, White: Neutral (where provided) - Secondary Relay: No. 16 AWG isolated contact leads: (2) Red

Standards and Certifications

• Listings: ETL/cETL listed, CSA, FCC and NOM. Can be used to comply with IECC, ASHRAE 90.1, and Title 24, Part 6 occupancy/vacancy sensing requirements
• Title 24 Compliant: Yes

Mechanical Specifications

• Mounting Type: Wall Switch
• Relay Type: Dual Relay

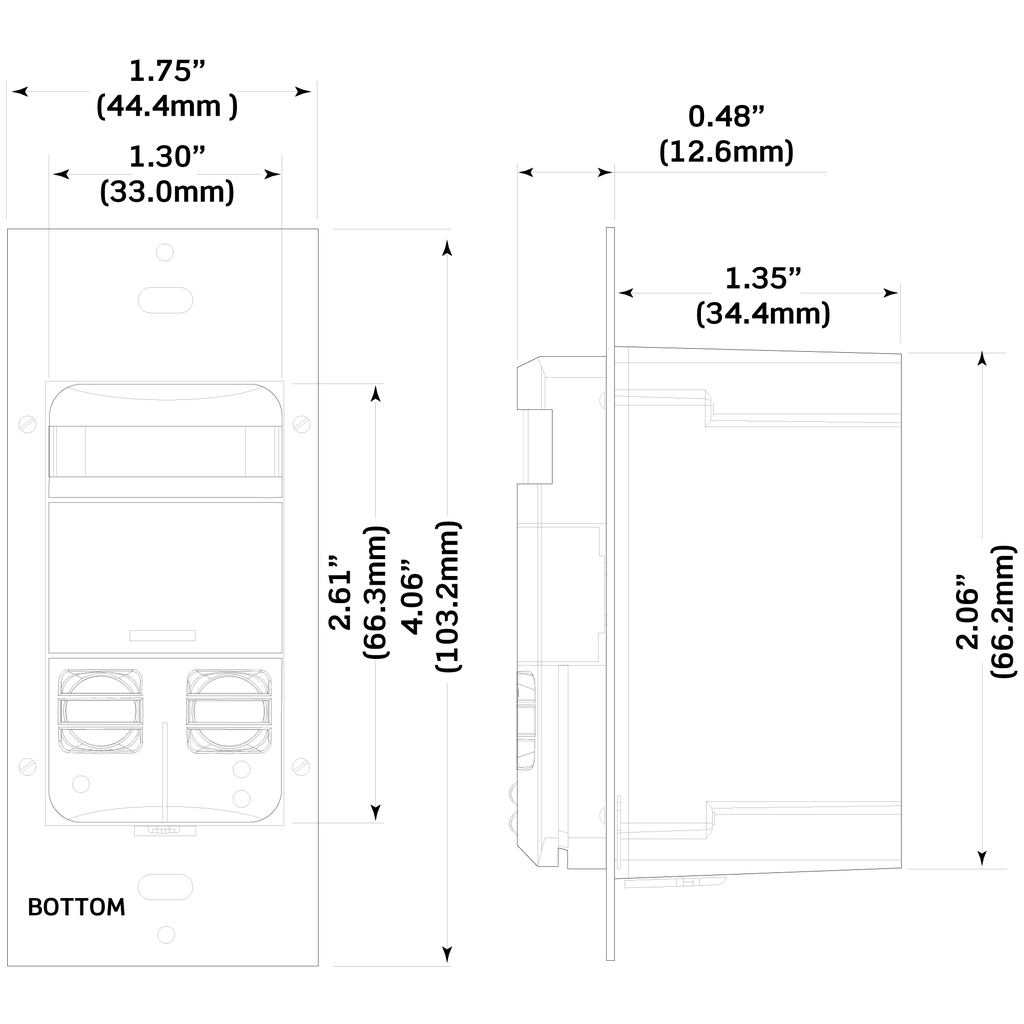

• Size: Height 4.06" (103.2mm), Width 1.75" (44.4mm), Depth 1.83" (47mm), Install Depth 1.35" (34.4mm), Install Height 2.06" (66.2mm)
• Switch Type: Single-Pole, Dual Relay

Environmental Specifications

• Operating Temperature: 32° to 104°F (0° to 40°C)
• Relative Humidity: 20% to 90% non-condensing
• Storage Temperature Range: 14° to 185°F (-10° to 85°C)

Type

• Product Type: Occupancy Sensor

Warranty

• Warranty: 5-Year Limited
