OCCUPANCY SEN WALL MT INFRARED
SKU: #81996
Part: #LOS-WIR-WH
UPC: 027557212434
OCCUPANCY SEN WALL MT INFRARED
SKU: #81996
Part: #LOS-WIR-WH
UPC: 027557212434
Next day delivery
Description

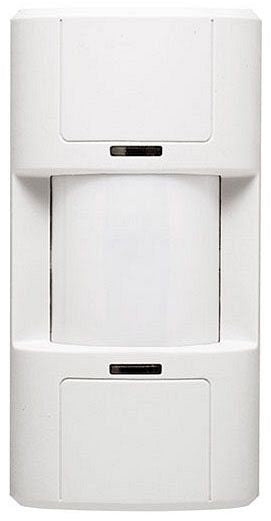

OCCUPANCY SEN WALL MT INFRARED - Wired Occupancy Sensor
The Lutron LOS-WIR-WH is a wired wall-mount occupancy sensor using passive infrared (PIR) technology designed for indoor lighting control applications. It provides reliable occupancy detection with a coverage area of up to 1,600 square feet and a 110° field of view. This sensor is suitable for integration into lighting solutions and control systems offered by electrical distributors and switchgear suppliers, supporting energy-efficient automation in commercial and institutional environments.
Specifications
- Manufacturer: Lutron
- Manufacturer Part #: LOS-WIR-WH
- Mounting Type: Ceiling
- Enclosure Material: Plastic
- Operating Temperature: 32 to 104 degrees Fahrenheit
- Coverage Area: 1,600 ft² (150 m²)
- Field of View: 110°
- Dimensions: Width 2.70 in (69 mm), Height 5.25 in (133 mm), Depth 3.90 in (99 mm)
- Recommended Mounting Height: 8 to 12 ft (2.4 to 3.7 m)
- Power Requirements: 20-24 V DC, Class 2 low-voltage wiring (PELV)
- Product Weight: 0.55 lb
- UPC: 027557212434
Features
- Passive infrared (PIR) motion detection for occupancy sensing
- Flexible wall or ceiling mounting options
- Self-adaptive sensor automatically adjusts sensitivity and timing
- LED indicators for sensor status
- Designed for indoor use only
- Compatible with Lutron lighting control systems and power packs
- Uses IEC PELV / NEC Class 2 low-voltage wiring standards
