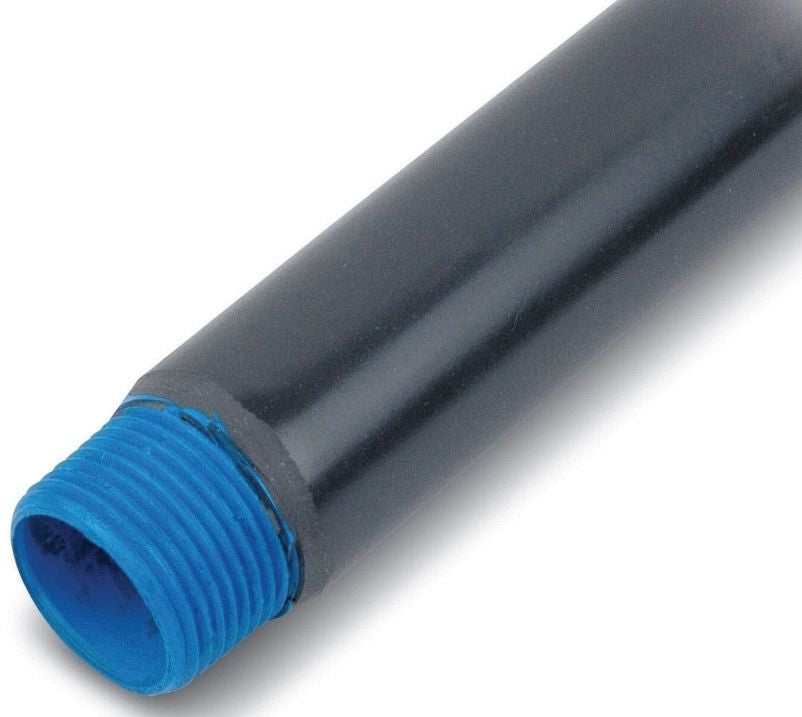

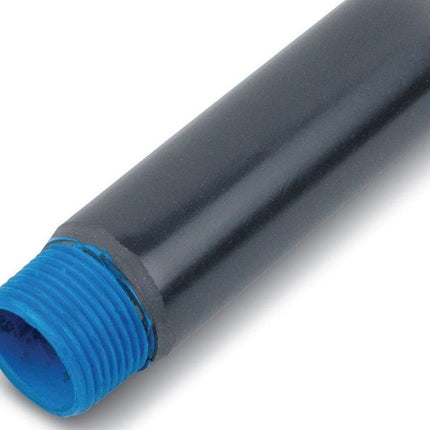

This OCAL Conduit pipe provides reliable protection for electrical wiring in rigid installations. The PVC-coated galvanized conduit offers superior corrosion resistance and durability for industrial and utility applications when used with proper conduit body components and elbow fittings.

• Dimensions: 1 inch trade size for standard electrical connections and coupling compatibility
• Material: PVC coating over rigid galvanized steel for enhanced durability, schedule-rated for professional installations
• Application: Suitable for exposed or embedded electrical installations with proper connector and coupling systems, including flexible options for complex routing
• Protection: Resists corrosion, impact, and environmental damage when used with appropriate box and adapter accessories
• Compliance: Meets industry standards for electrical conduit systems including requirements for couplers and conduit body components

Features

• Blue urethane coating over Hot-Dip Galvanized threads.
• A nominal .002 in. (2 mil) blue urethane on the interior.
• Color coded thread protectors on each end.
• A minimum .040 in. (40 mil) PVC coating on the exterior.

General

• Color: Dark Gray
• Finish: Hot-Dipped Galvanized
• Thread Protector Color: Blue
• Material: Steel

Dimension Information

• Minimum Weight Per Foot (lbs): 1.53
• O.D. Steel Only (mm): 33.4
• Length without Couplings (mm): 3.02
• Cross Section Area (mm): 21.94
• Size (inches): 1
• Pipe Size (Metric Size Designator*): 27
• Nominal Wall Thickness-Steel Only (inches): 0.126
• Nominal Inside Diameter (mm): 27.0
• Nominal Wall Thickness with PVC (mm): 4.21
• O.D. Steel Only (inches): 1.315
• Nominal Wall Thickness with PVC (inches): 0.166
• Nominal Inside Diameter (inches): 1.063
• Length without Couplings: 9' 11"
• Nominal Wall Thickness-Steel Only (mm): 3.20
• O.D. with PVC (inches): 1.395
• Minimum Weight Per Foot (kil): 69.40
• O.D. with PVC (mm): 35.4
• Cross Section Area (square inches): 0.864

Technical Information

Specifications

Packaging

• Outer Package: 750
• Package Length: 120
• T&B Sold in UOM: Feet
• T&B Weight Per UOM: 1.77 lbs. Each
• Inner Package: 10
• Package Width: 19
• Package Height: 8.5
• Order Multiple: 10

Application Support

Notes

• Metric size designator (ANSI C80. 1-1994)
• Coupling(s) shipped with conduit are packaged separately

Certifications

• UL
• RoHS Compliance: No
• CSA
