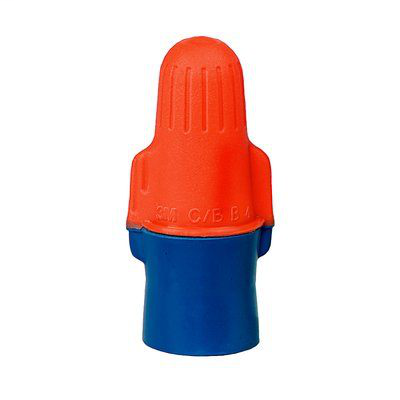

O/B+POUCH, Wire Connector - Performance Plus Wire Connector

The 3M™ Performance Plus™ Wire Connector O/B+ is designed for secure electrical connections in pigtail applications, accommodating copper conductors from 22 to 12 AWG solid and/or stranded. This wire connector provides a reliable, UL Listed solution rated for 600 volts (1000 volts in signs, lighting fixtures, and luminaires) and an operating temperature up to 105°C (221°F). It is ideal for electrical distributors and lighting solutions requiring dependable wire and cable connections.

Specifications

• Manufacturer: 3M
• Product Weight: 0.3240 lbs
• Connection Type: Wire
• Conductor Size: 12 American Wire Gauge (AWG)
• Color: Blue/Orange (as per O/B+ designation)
• Insulation Material: Polypropylene
• Material: Flame retardant polypropylene and thermoplastic elastomer
• Max. Operating Temperature: 105 degrees Celsius (221°F)
• Maximum Voltage Rating: 600 V (1000 V in signs, lighting fixtures, and luminaires)
• Connector Style: Twist On
• Flame Retardant: Yes
• UL Listed per UL Standard 486C, CSA Certified
• UPC: 054007431527
• Manufacturer Part #: O/B+POUCH

Features

• Flexible spring design with generous room for expansion and a strong bite for a secure connection
• Wide wire range reduces the number of connectors needed, with three Performance Plus connectors replacing eight standard connectors
• Flexible skirt helps prevent copper exposure for enhanced safety
• Corrosion-resistant spring coating ensures long-term reliability
• Meets UL and CSA standards for safety and performance
• Flame retardant polypropylene and thermoplastic elastomer construction
• Designed for easy installation with smooth twist-on action
