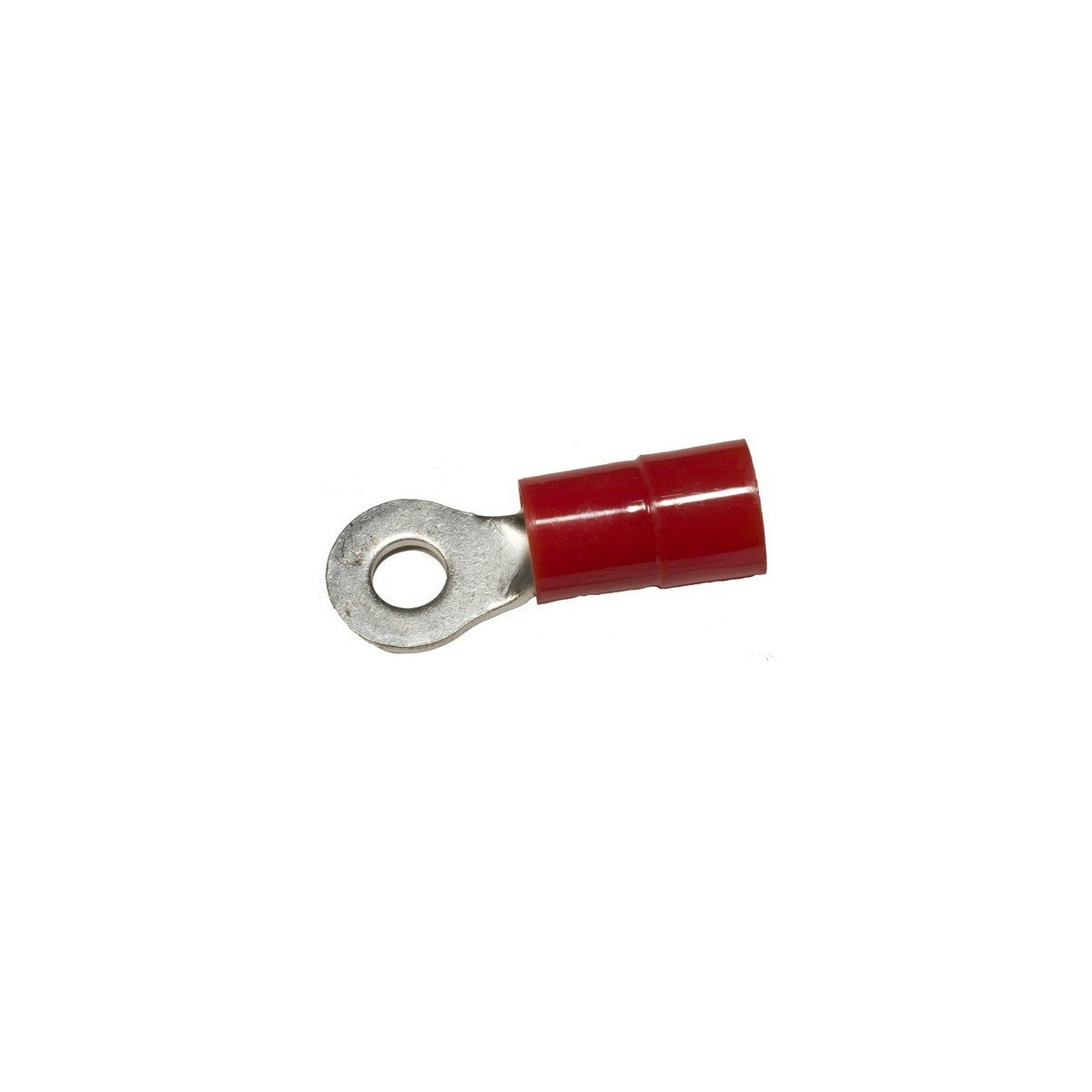

Nylon Insulated Ring Terminals - 8AWG Wire, #10 Stud for Electrical Connections

This nylon insulated ring terminal is designed for reliable electrical connections in wire and cable assemblies. Manufactured by Morris Products, it is suitable for use by electrical distributors and switchgear suppliers seeking durable, corrosion-resistant terminals for 8 AWG wire applications. The terminal features a copper construction with electro-tin plating to ensure conductivity and resistance to corrosion, making it ideal for lighting solutions and general electrical wiring tasks.

Specifications

• Material: Copper
• Insulation Type: Nylon
• Color: Red
• Wire Range: 8 AWG
• Stud Size: #10
• Finish: Electro-tin plated
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Amp Rating: 70 Amps (8 AWG)
• Dimensions (inches): Length 1.232, Width 0.472, Depth 0.315
• Product Weight: 0.0110 lbs
• Certifications: UL, cUL, RoHS

Features

• Color-coded red insulation for easy wire gauge identification
• Manufactured from high strength copper alloy for durability
• Electro-tin plating provides corrosion resistance
• Expanded insulation funnel entry eliminates strand hang-up and improves crimping reliability
• Wire range stamped on surface for quick identification
• Brazed seam construction prevents splitting under maximum pressure
• Serrated barrel and flared sleeve position enhance electrical contact and mechanical stress relief at insulation and barrel junction
