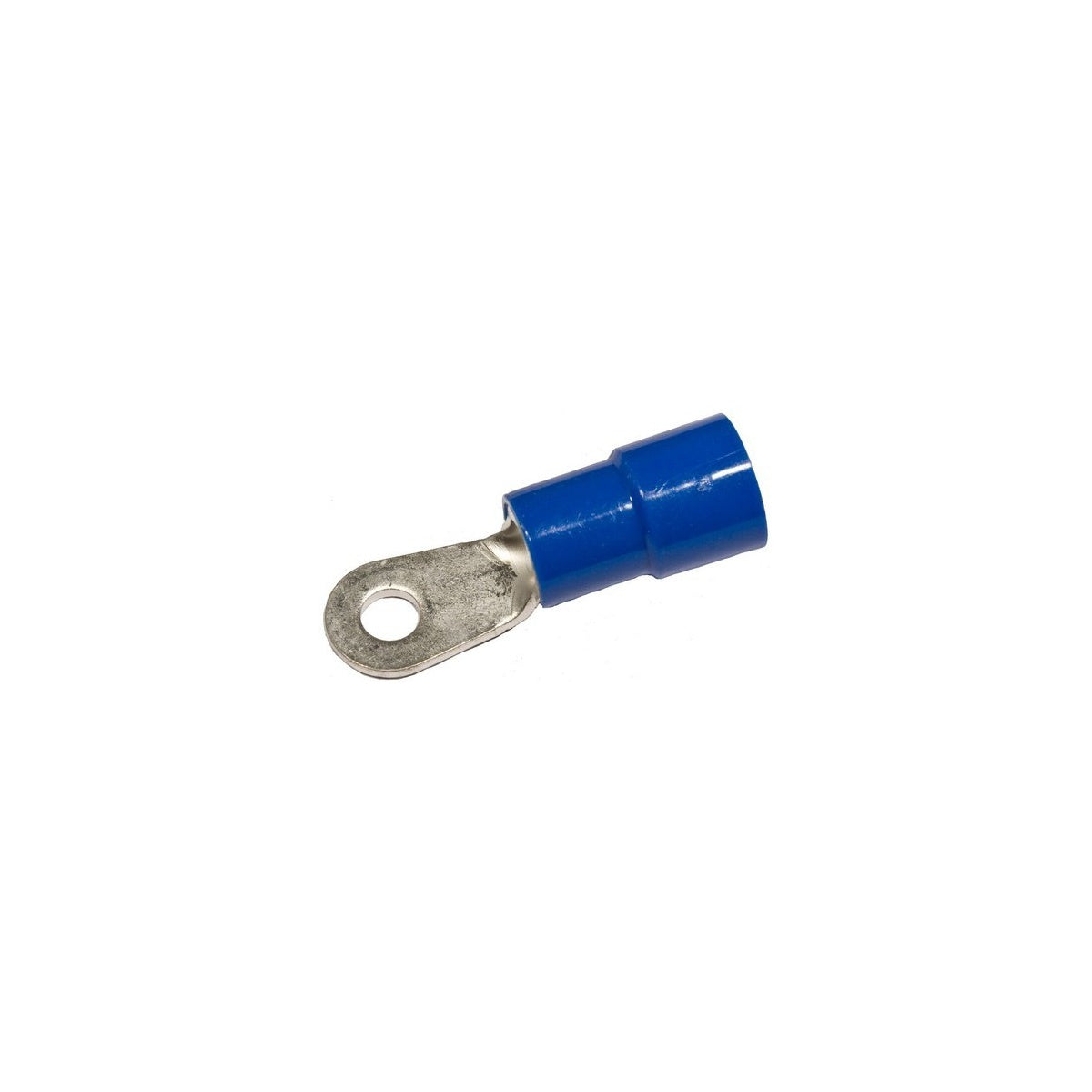

Nylon Insulated Ring Terminals - 6AWG Wire, 5/16" Stud Electrical Connector

This nylon insulated ring terminal is designed for secure electrical connections in wire and cable applications. Manufactured from high-strength copper alloy with electro-tin plating, it offers corrosion resistance and reliable conductivity. The product is suitable for use by electrical distributors and switchgear suppliers requiring durable and efficient wire termination solutions.

Specifications

• Material: Copper
• Insulation Type: Nylon
• Color: Blue
• Wire Range: 6 AWG
• Stud Size: 5/16"
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Current Rating: 95 Amps (6 AWG)
• Finish: Electro-tin plated
• Dimensions (L x W x D): 1.713" x 0.63" x 0.433"
• Product Weight: 0.0230 lbs
• Certifications: UL, cUL, RoHS Compliant

Features

• Color-coded nylon insulation for easy identification
• Expanded insulation funnel entry reduces strand hang-up and improves crimp reliability
• Brazed seam construction prevents splitting under maximum pressure
• Serrated barrel and flared sleeve position provide excellent electrical contact and mechanical stress relief
• Wire range stamped on the surface for quick interpretation
