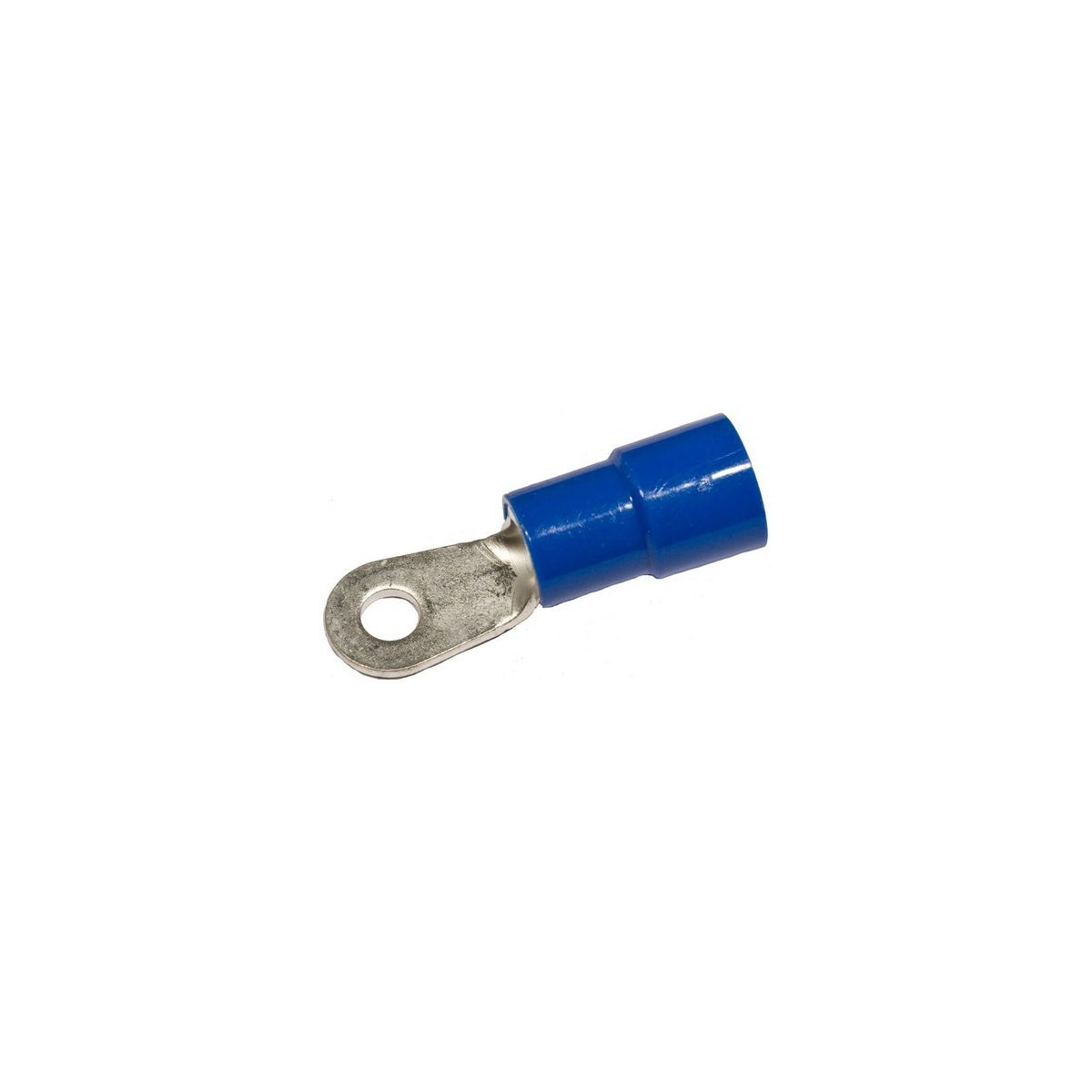

Nylon Insulated Ring Terminals - 6AWG Wire, 3/8" Stud for Electrical Connections

This Nylon Insulated Ring Terminal is designed for secure and reliable electrical connections in wire and cable applications. Manufactured by Morris Products, it is suitable for use by electrical distributors and switchgear suppliers requiring high-quality terminals for 6 AWG wire with a 3/8" stud size. The terminal features a copper alloy construction with electro-tin plating for corrosion resistance and durability in lighting solutions and general electrical installations.

Specifications

• Material: Copper
• Insulation Type: Nylon
• Color: Blue
• Wire Range: 6 AWG
• Stud Size: 3/8"
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Amp Rating: 95 Amps (6 AWG)
• Finish: Electro-tin plated
• Dimensions (inches): Length 1.713, Width 0.63, Depth 0.433
• UL Certified: Yes
• cUL Certified: Yes
• RoHS Compliant: Yes

Features

• Color-coded blue insulation for easy identification
• Manufactured from high strength copper alloy for durability
• Electro-tin plating provides corrosion resistance
• Expanded insulation funnel entry reduces strand hang-up and improves crimping reliability
• Wire range stamped on the surface for quick interpretation
• Brazed seam construction prevents splitting under maximum pressure
• Serrated barrel and flared sleeve position provide excellent contact and mechanical stress relief at insulation and barrel junction
