Nylon Insulated Ring Terminals - 6AWG Wire, #10 Stud for Electrical Connections

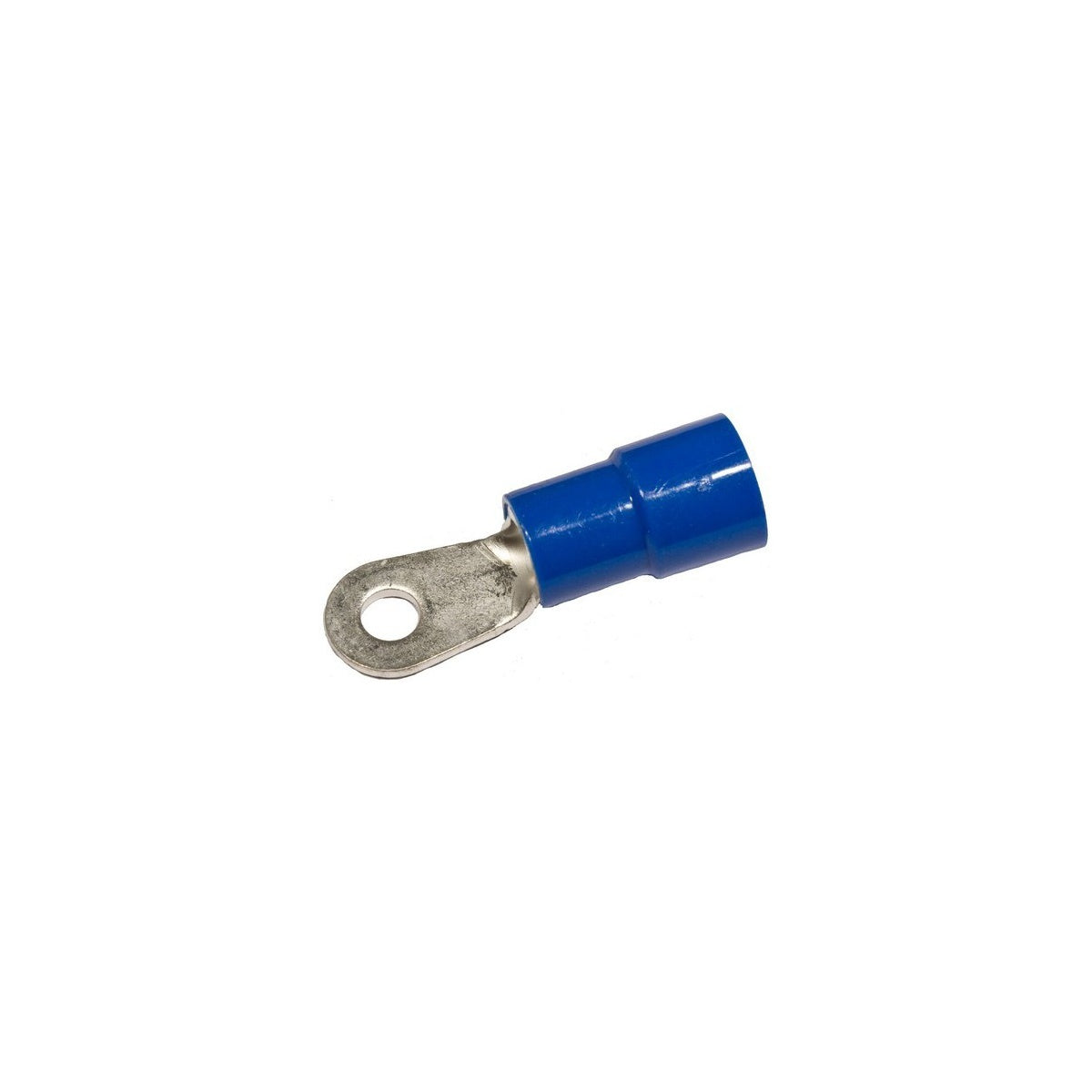

This nylon insulated ring terminal is designed for secure and reliable electrical connections in wire and cable applications. Manufactured by Morris Products, it is suitable for use by electrical distributors and switchgear suppliers requiring durable and corrosion-resistant terminals. The terminal supports 6 AWG wire and fits a #10 stud, making it ideal for various lighting solutions and electrical wiring installations.

Specifications

• Material: Copper
• Insulation Type: Nylon
• Color: Blue
• Wire Range: 6 AWG
• Stud Size: #10
• Finish: Electro-tin plated
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Amp Rating: 70 Amps (8 AWG equivalent)
• Dimensions (inches): Length 1.606, Width 0.472, Depth 0.433
• Product Weight: 0.0220 lbs
• Certifications: UL, cUL, RoHS

Features

• Color-coded blue nylon insulation for easy identification
• Manufactured from high-strength copper alloy for durability
• Electro-tin plating provides corrosion resistance
• Expanded insulation funnel entry reduces strand hang-up and improves crimping reliability
• Wire range clearly stamped on surface for quick interpretation
• Brazed seam construction prevents splitting under maximum pressure
• Serrated barrel and flared sleeve position offer excellent electrical contact and mechanical stress relief at the insulation and barrel junction
