Nylon Insulated Ring Terminals - 6AWG Wire, 1/4" Stud

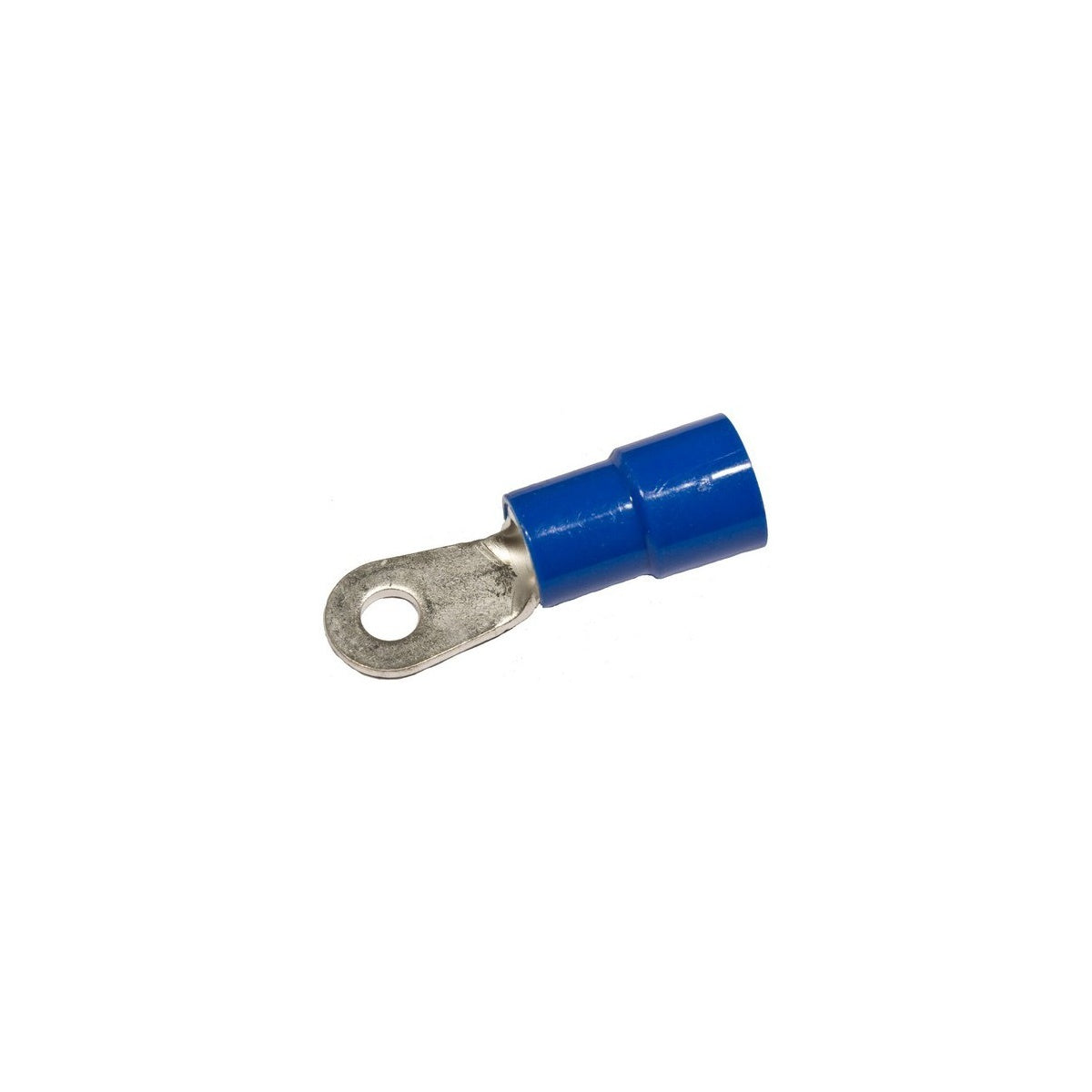

This nylon insulated ring terminal is designed for secure electrical connections in wire and cable applications. Manufactured by Morris Products, it is suitable for use by electrical distributors and switchgear suppliers requiring reliable, corrosion-resistant terminals for 6 AWG wire with a 1/4" stud size. The terminal features copper construction with electro-tin plating and blue nylon insulation for easy identification and enhanced durability.

Specifications

• Material: Copper
• Insulation Type: Nylon
• Finish: Electro-tin plated
• Color: Blue
• Wire Range: 6 AWG
• Stud Size: 1/4"
• Temperature Rating: 105°C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Amp Rating: 95 Amps
• Dimensions (L x W x D): 1.606" x 0.472" x 0.433"
• Product Weight: 0.0210 lbs
• Certifications: UL, cUL, RoHS

Features

• Color-coded blue nylon insulation for easy identification
• Manufactured from high-strength copper alloy for durability
• Electro-tin plating provides corrosion resistance
• Expanded insulation funnel entry eliminates strand hang-up, improving crimping reliability
• Wire range stamped on surface for quick identification
• Brazed seam prevents splitting under maximum pressure
• Serrated barrel and flared sleeve position enhance contact and mechanical stress relief at insulation and barrel junction
