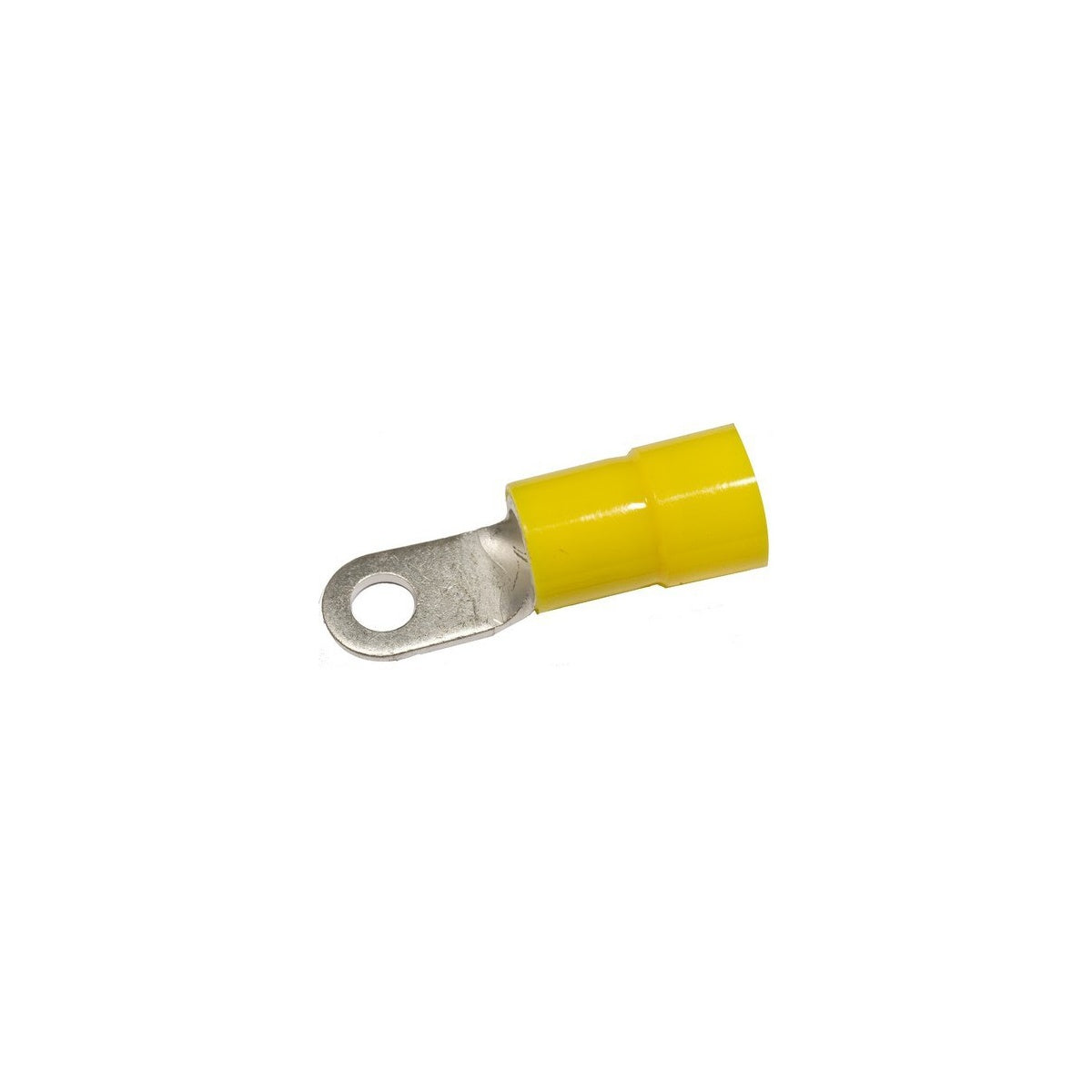

Nylon Insulated Ring Terminals - 4AWG Wire, #8 Stud Electrical Connector

This nylon insulated ring terminal is designed for secure electrical connections in wire and cable applications. Manufactured from high-strength copper alloy with electro-tin plating, it offers corrosion resistance and reliable termination. Ideal for electrical distributors and switchgear suppliers, it supports 4 AWG wire with a #8 stud size, suitable for various lighting solutions and electrical installations.

Specifications

• Material: Copper
• Insulation Type: Nylon
• Color: Yellow
• Wire Range: 4 AWG
• Stud Size: #8
• Finish: Electro-tin plated
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-O
• Amp Rating: 125 Amps
• Length (L): 1.78 inches (45.2 mm)
• Width (W): 0.48 inches (12.2 mm)
• Diameter (D): 0.512 inches (13.0 mm)
• Inner Diameter (d1): 0.303 inches (7.7 mm)
• Inner Diameter (d2): 0.169 inches (4.3 mm)
• Dimension E: 0.945 inches (24.1 mm)
• Dimension F: 0.614 inches (15.1 mm)
• Thickness (T): 0.067 inches (1.7 mm)
• Product Weight: 0.0340 lbs

Features

• Color coded insulation for easy identification
• Manufactured from high-strength copper alloy
• Electro-tin plated for corrosion resistance
• Expanded insulation funnel entry eliminates strand ‚ÄúHang Up‚Äù and improves crimping reliability
• Wire range stamped on surface for easy interpretation
• Brazed seam prevents splitting under maximum pressure
• Serrated barrel and flared sleeve position provide excellent contact and mechanical stress relief at insulation and barrel junction
• UL, cUL, and RoHS certified
