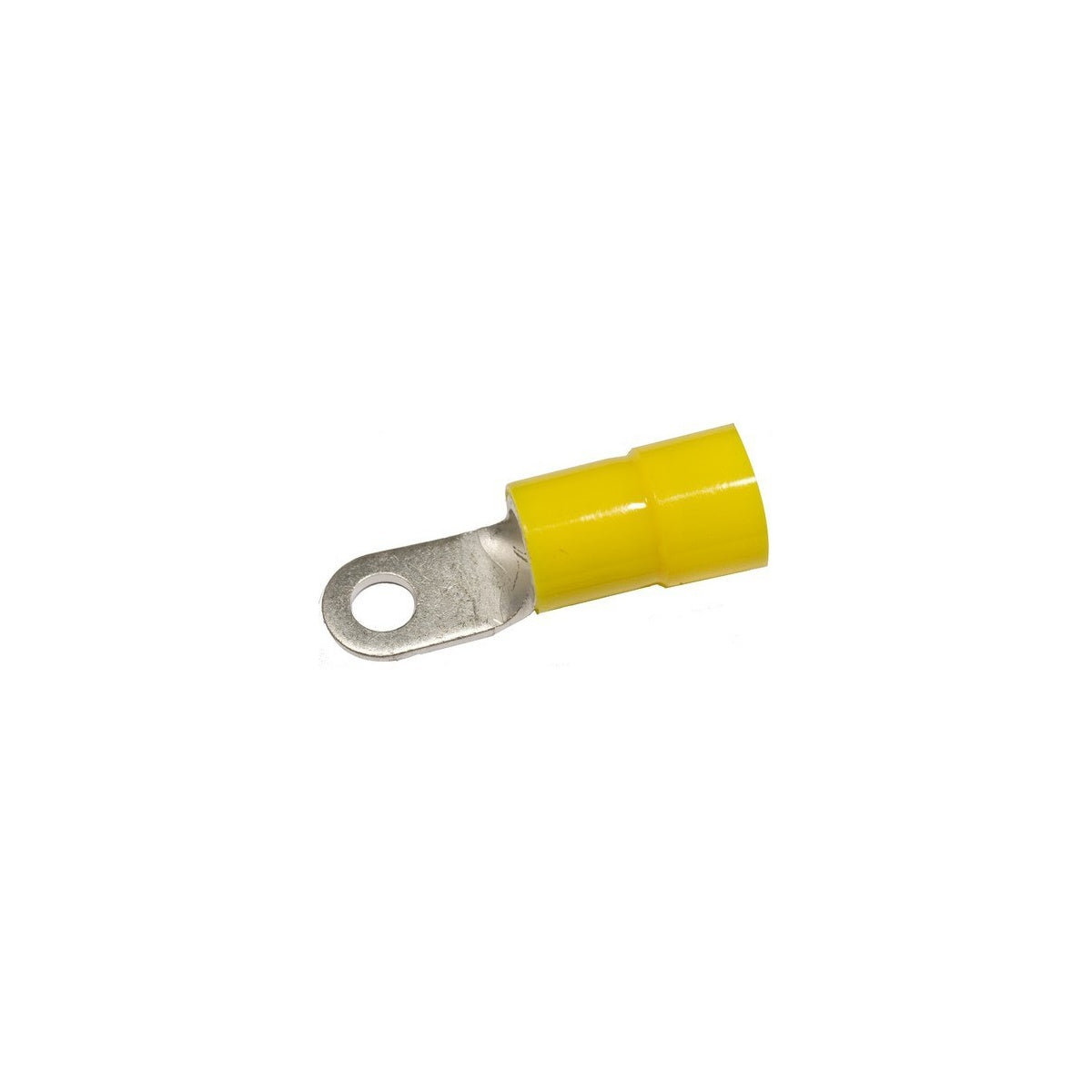

Nylon Insulated Ring Terminals - 4AWG Wire, 7/16" Stud

This nylon insulated ring terminal is designed for secure electrical connections in wire and cable applications. Manufactured by Morris Products, it provides reliable termination for 4 AWG wire and is suitable for use by electrical distributors and switchgear suppliers requiring durable and corrosion-resistant connectors.

Specifications

• Material: Copper
• Insulation Type: Nylon
• Color: Yellow
• Wire Range: 4 AWG
• Stud Size: 7/16"
• Finish: Electro-tin plated
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Amp Rating: 125 Amps
• Dimensions (L x W x D): 2.146" x 0.866" x 0.512"
• Product Weight: 0.0430 lbs
• Certifications: UL, cUL, RoHS

Features

• Color-coded insulation for easy identification
• Manufactured from high-strength copper alloy for durability
• Electro-tin plating provides corrosion resistance
• Expanded insulation funnel entry eliminates strand hang-up, improving crimping rates and termination reliability
• Wire range stamped on the surface for quick interpretation
• Brazed seam prevents splitting under maximum pressure
• Serrated barrel and flared sleeve position ensure excellent contact and mechanical stress relief at insulation and barrel junction
