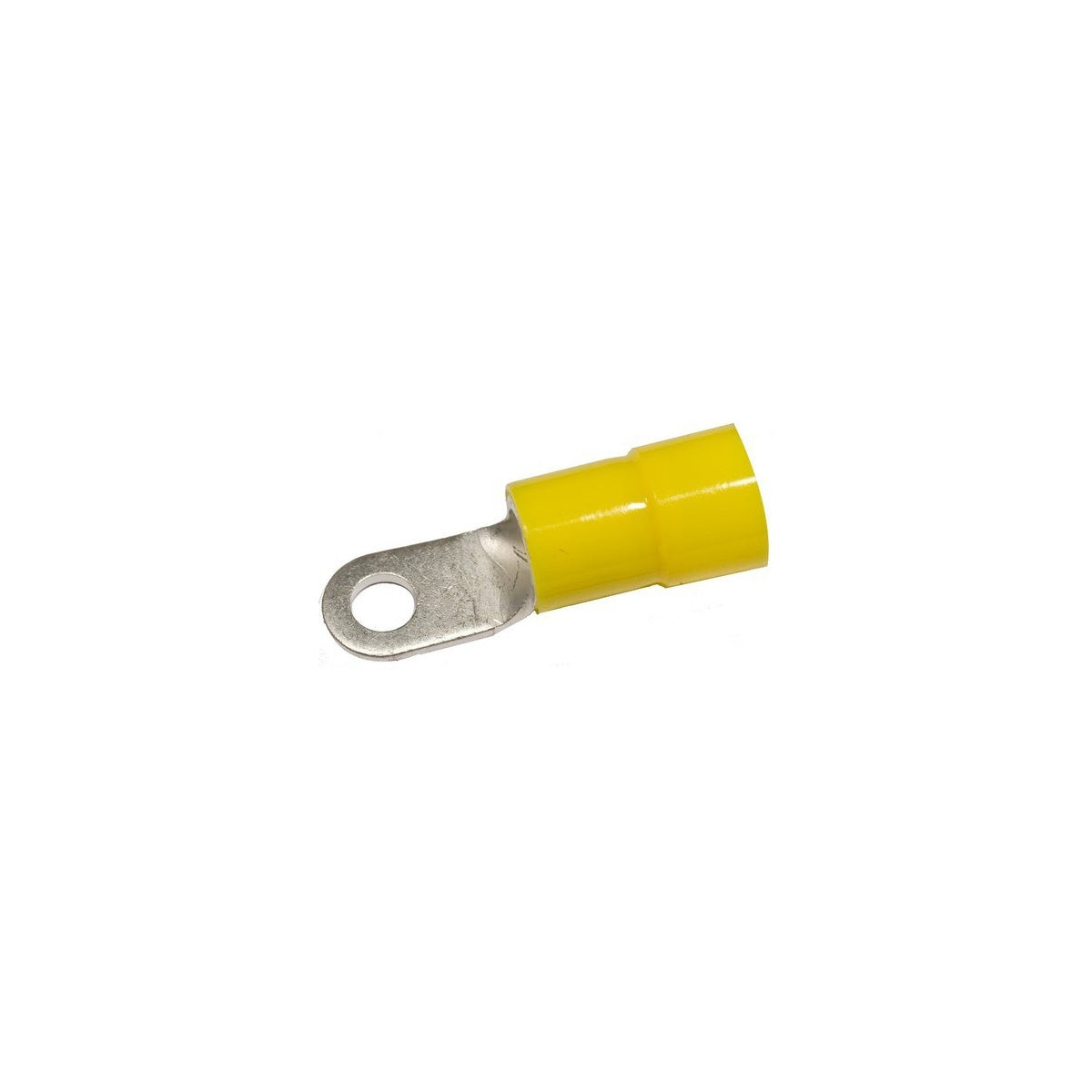

Nylon Insulated Ring Terminals - 4AWG Wire, 5/16" Stud

This nylon insulated ring terminal is designed for secure electrical connections in wire and cable applications. Manufactured by Morris Products, it is suitable for use by electrical distributors and switchgear suppliers requiring reliable lighting solutions and wiring components. The terminal features a 4 AWG wire range with a 5/16" stud size, providing a robust connection with corrosion resistance and mechanical stress relief.

Specifications

• Material: Copper
• Insulation Type: Nylon
• Color: Yellow
• Wire Range: 4 AWG
• Stud Size: 5/16"
• Finish: Electro-tin plated
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Amp Rating: 125 Amps
• Length (L): 1.791 inches (45.5 mm)
• Width (W): 0.65 inches (16.5 mm)
• Depth (D): 0.512 inches (13 mm)
• Diameter 1 (d1): 0.303 inches (7.7 mm)
• Diameter 2 (d2): 0.331 inches (8.4 mm)
• Dimension E: 0.945 inches (24.1 mm)
• Dimension F: 0.531 inches (13.5 mm)
• Thickness (T): 0.067 inches (1.7 mm)
• UL Certified: Yes
• cUL Certified: Yes
• RoHS Compliant: Yes

Features

• Color coded nylon insulation for easy identification
• Manufactured from high-strength copper alloy for durability
• Electro-tin plating provides corrosion resistance
• Expanded insulation funnel entry eliminates strand hang-up and improves crimping reliability
• Wire range stamped on surface for easy interpretation
• Brazed seam prevents splitting under maximum pressure
• Serrated barrel and flared sleeve position ensure excellent contact and mechanical stress relief at insulation and barrel junction

Downloads & Links

• Spec Sheet
