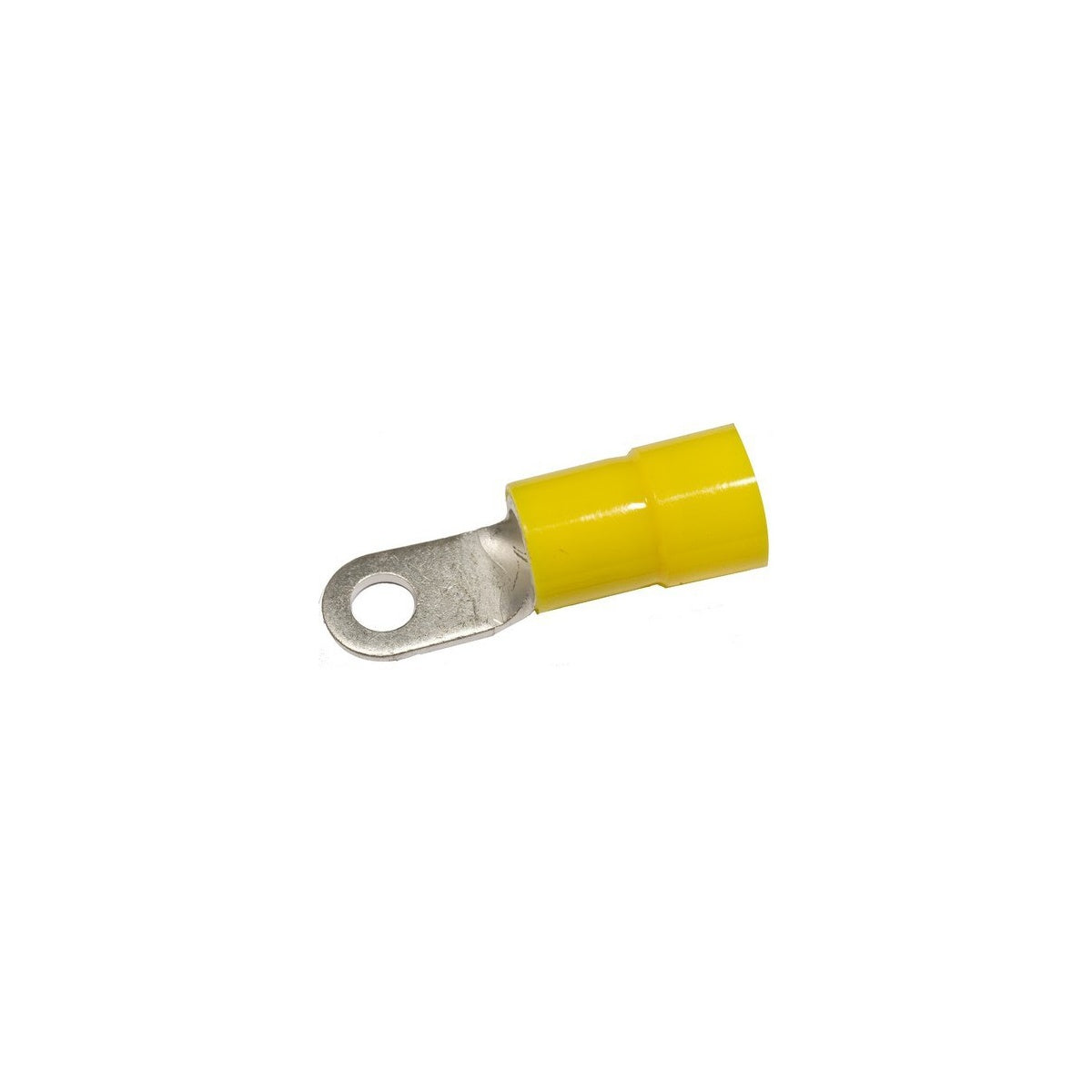

Nylon Insulated Ring Terminals - 4AWG Wire, #10 Stud

This nylon insulated ring terminal is designed for secure electrical connections in wire and cable applications. Manufactured from high-strength copper alloy with electro-tin plating, it offers corrosion resistance and reliable performance. Suitable for use by electrical distributors and switchgear suppliers, it supports 4 AWG wire and a #10 stud size, making it ideal for various industrial and commercial electrical installations.

Specifications

• Material: Copper
• Insulation Type: Nylon
• Finish: Electro-tin plated
• Color: Yellow
• Wire Range: 4 AWG
• Stud Size: #10
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-O
• Amp Rating: 125 Amps
• Length: 1.78 inches (45.2 mm)
• Width: 0.48 inches (12.2 mm)
• Diameter (D): 0.512 inches (13 mm)
• Hole Diameter (d1): 0.303 inches (7.7 mm)
• Hole Diameter (d2): 0.209 inches (5.3 mm)
• Dimension E: 0.945 inches (24.1 mm)
• Dimension F: 0.614 inches (15.1 mm)
• Thickness (T): 0.067 inches (1.7 mm)
• Certifications: UL, cUL, RoHS compliant

Features

• Color-coded yellow nylon insulation for easy identification
• Manufactured from high strength copper alloy for durability
• Electro-tin plating provides corrosion resistance
• Expanded insulation funnel entry reduces strand hang-up and improves crimping reliability
• Wire range stamped on surface for quick identification
• Brazed seam prevents splitting under maximum pressure
• Serrated barrel and flared sleeve position ensure excellent electrical contact and mechanical stress relief at insulation and barrel junction
