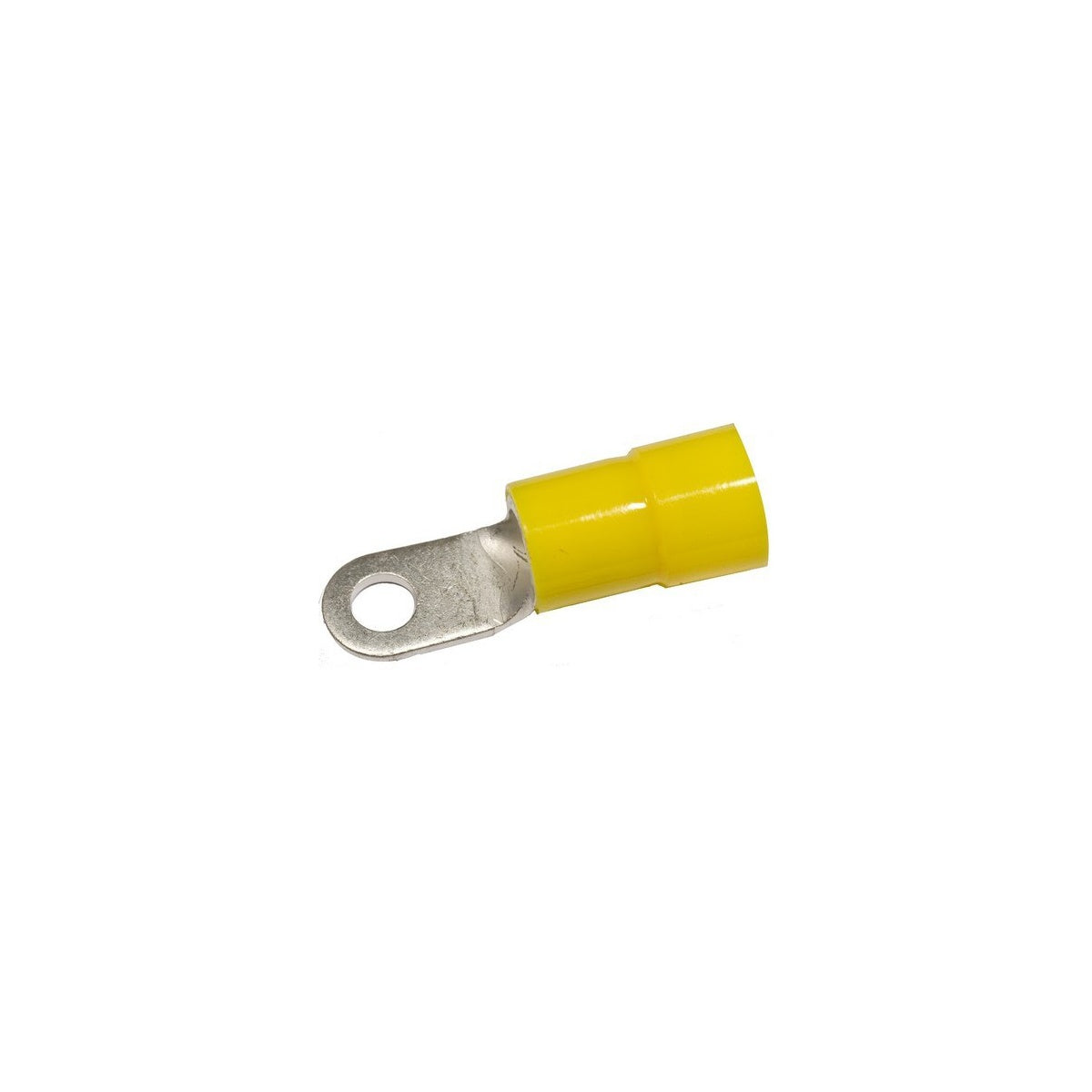

Nylon Insulated Ring Terminals - 4AWG Wire, 1/4" Stud - Wire and Cable Connector

This nylon insulated ring terminal is designed for secure electrical connections in wire and cable applications. Manufactured from high-strength copper alloy with electro-tin plating, it offers corrosion resistance and reliable performance. Suitable for use by electrical distributors and switchgear suppliers, it supports 4 AWG wire and features a 1/4" stud size for compatibility with various electrical systems.

Specifications

• Material: Copper
• Insulation Type: Nylon
• Finish: Electro-tin plated
• Color: Yellow
• Wire Range: 4 AWG
• Stud Size: 1/4"
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Amp Rating: 125 Amps
• Length: 1.772 inches (45.0 mm)
• Width: 0.48 inches (12.2 mm)
• Depth: 0.512 inches (13.0 mm)
• UL Certified: Yes
• cUL Certified: Yes
• RoHS Compliant: Yes

Features

• Color-coded insulation for easy identification
• Expanded insulation funnel entry eliminates strand hang-up and improves crimping reliability
• Brazed seam prevents splitting under maximum pressure
• Serrated barrel and flared sleeve provide excellent electrical contact and mechanical stress relief
• Wire range stamped on surface for easy interpretation
