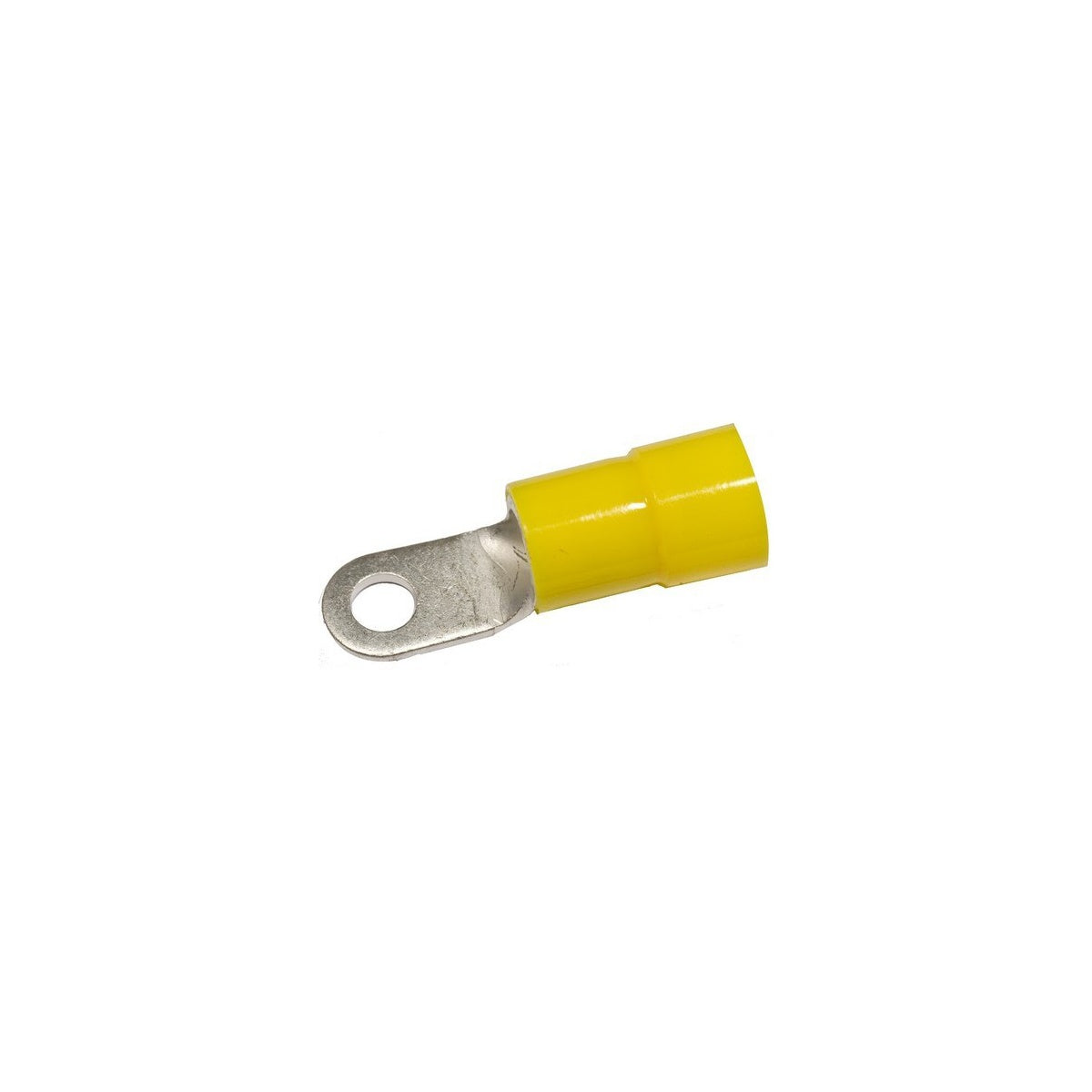

Nylon Insulated Ring Terminals - 4AWG Wire, 1/2" Stud for Electrical Wire Connections

This nylon insulated ring terminal is designed to provide reliable electrical connections for 4 AWG wire applications. Manufactured from high-strength copper alloy with electro-tin plating, it offers corrosion resistance and mechanical durability. Suitable for electrical distributors and lighting solutions requiring secure wire terminations, this terminal supports up to 125 amps and 600 volts, making it ideal for wire and cable installations in various switchgear and electrical systems.

Specifications

• Material: Copper
• Insulation Type: Nylon
• Color: Yellow
• Wire Range: 4 AWG
• Stud Size: 1/2"
• Finish: Electro-tin plated
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Amp Rating: 125 Amps
• Length: 2.146 inches (54.5 mm)
• Width: 0.866 inches (22 mm)
• Diameter (d2): 0.512 inches (13 mm)

Features

• Color-coded yellow nylon insulation for easy identification
• Expanded insulation funnel entry to eliminate strand hang-up and improve crimping reliability
• Brazed seam construction to prevent splitting under maximum pressure
• Serrated barrel and flared sleeve provide excellent electrical contact and mechanical stress relief
• Wire range stamped on surface for quick verification
• Electro-tin plating for enhanced corrosion resistance
• UL, cUL, and RoHS certified
