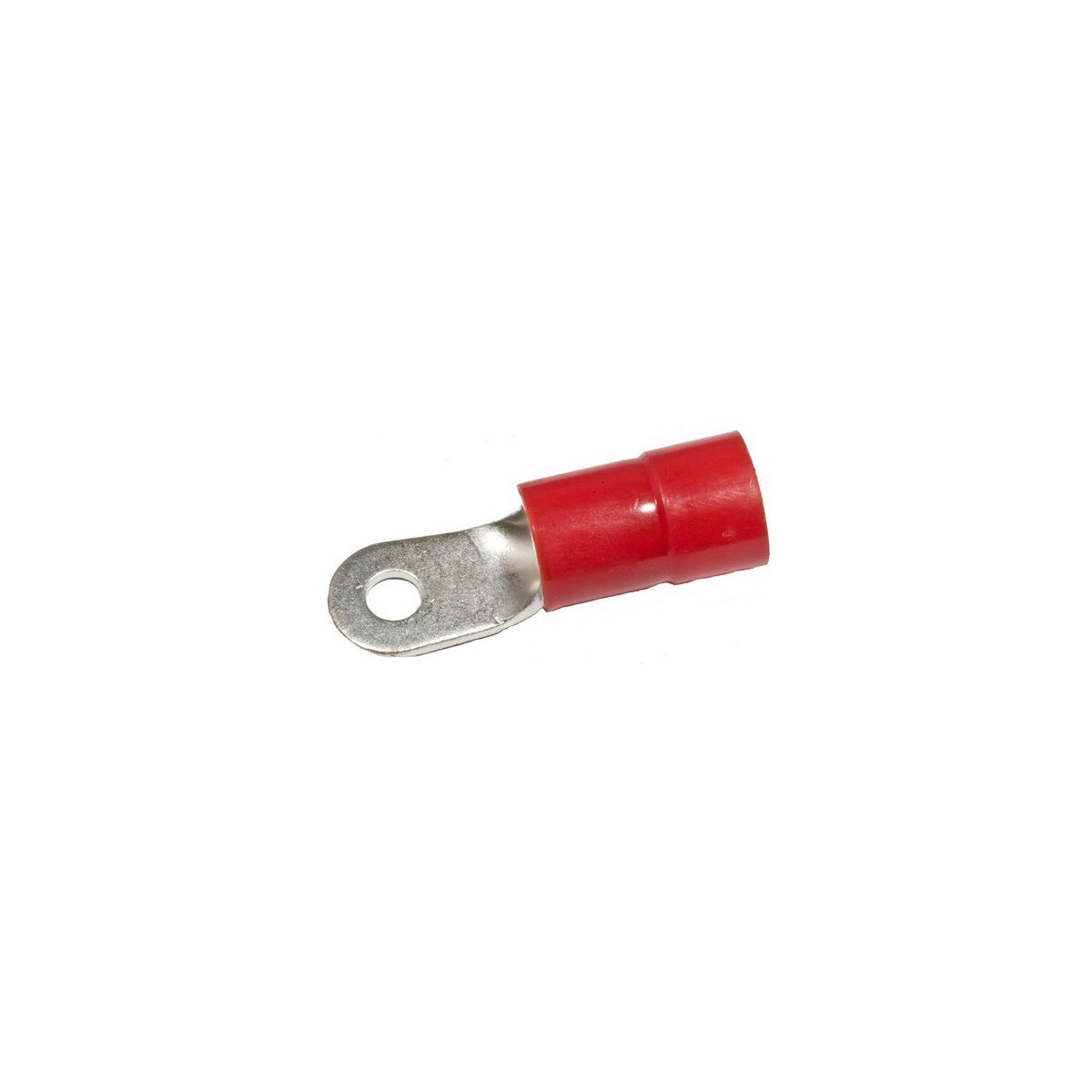

Nylon Insulated Ring Terminals - 2AWG Wire, 7/16" Stud for Electrical Connections

This Nylon Insulated Ring Terminal is designed for secure electrical connections in wire and cable applications. Manufactured by Morris Products, it is suitable for use by electrical distributors and switchgear suppliers requiring reliable, corrosion-resistant terminals with clear wire identification. The terminal supports 2 AWG wire and features a 7/16" stud size, making it ideal for various lighting solutions and electrical installations.

Specifications

• Material: Copper
• Insulation Type: Nylon
• Finish: Electro-tin plated
• Color: Red
• Wire Range: 2 AWG
• Stud Size: 7/16"
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Amp Rating: 170 Amps
• Dimensions (L x W x D): 2.193" x 0.866" x 0.571"
• UL Certified: Yes
• cUL Certified: Yes
• RoHS Compliant: Yes

Features

• Color-coded insulation for easy identification
• Manufactured from high strength copper alloy for durability
• Electro-tin plating provides corrosion resistance
• Expanded insulation funnel entry reduces strand hang-up and improves crimping reliability
• Wire range stamped on the surface for quick interpretation
• Brazed seam prevents splitting under maximum pressure
• Serrated barrel and flared sleeve position ensure excellent contact and mechanical stress relief at insulation and barrel junction
