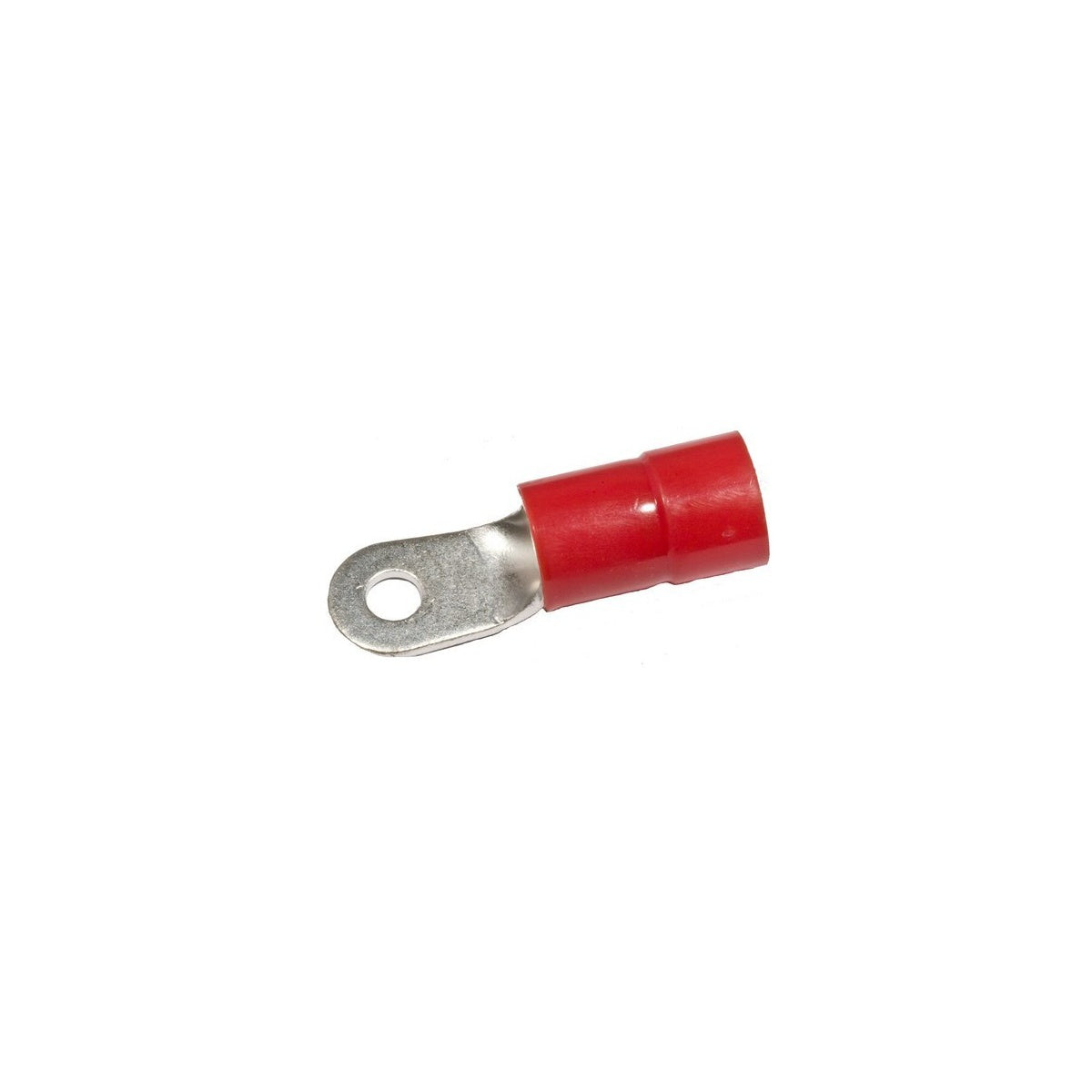

Nylon Insulated Ring Terminals - 2AWG Wire, 5/16" Stud Electrical Connector

This nylon insulated ring terminal is designed for secure and reliable electrical connections in wire and cable applications. Manufactured by Morris Products, it is suitable for electrical distributors and switchgear suppliers requiring high-quality connectors with corrosion resistance and mechanical durability. The terminal is color-coded red for easy identification and supports 2 AWG wire with a 5/16" stud size, making it ideal for lighting solutions and general electrical wiring tasks.

Specifications

• Material: Copper
• Insulation Type: Nylon
• Finish: Electro-tin plated
• Color: Red
• Wire Range: 2 AWG
• Stud Size: 5/16"
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Amp Rating: 170 Amps (2 AWG)
• Dimensions (inches): L 2.047, W 0.602, D 0.571, d1 0.37, d2 0.331, E 1.063, F 0.685, T 0.071
• Certifications: UL, cUL, RoHS

Features

• Color-coded insulation for easy identification
• Manufactured from high strength copper alloy
• Electro-tin plated for corrosion resistance
• Expanded insulation funnel entry prevents strand ‚Äúhang up‚Äù and improves crimping reliability
• Wire range stamped on surface for easy interpretation
• Brazed seam prevents splitting under maximum pressure
• Serrated barrel and flared sleeve position provide excellent contact and mechanical stress relief at insulation and barrel junction
