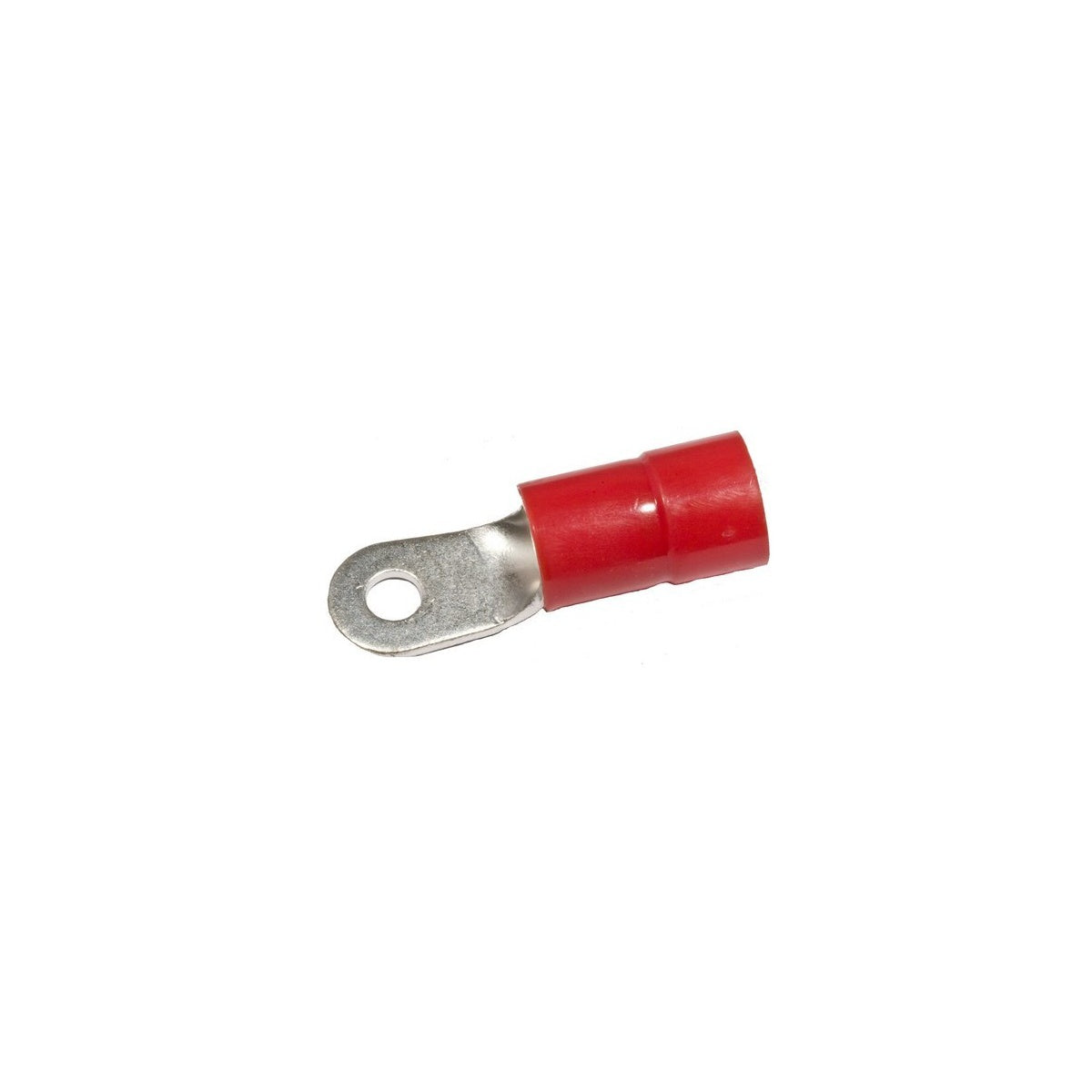

Nylon Insulated Ring Terminals - 2AWG Wire, 3/8" Stud Electrical Connector

The Nylon Insulated Ring Terminal by Morris Products is designed for secure electrical connections in wire and cable applications. This terminal is suitable for use by electrical distributors and switchgear suppliers requiring reliable, corrosion-resistant connectors for 2 AWG wire. Its nylon insulation provides clear color coding for easy identification, while the copper construction ensures optimal conductivity and mechanical strength.

Specifications

• Material: Copper
• Insulation Type: Nylon
• Finish: Electro-tin plated
• Color: Red
• Wire Range: 2 AWG
• Stud Size: 3/8"
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Current Rating: 170 Amps (2 AWG)
• Dimensions (L x W x D): 2.047" x 0.602" x 0.571"
• UPC: 601986114240

Features

• Color-coded nylon insulation for quick identification
• Manufactured from high-strength copper alloy for durability
• Electro-tin plating provides corrosion resistance
• Expanded insulation funnel entry reduces strand hang-up and improves crimp reliability
• Wire range stamped on the surface for easy interpretation
• Brazed seam prevents splitting under maximum pressure
• Serrated barrel and flared sleeve position ensure excellent electrical contact and mechanical stress relief at insulation and barrel junction
• UL, cUL, and RoHS certified
