Nylon Insulated Ring Terminals - 2AWG Wire, 1/4" Stud Electrical Connector

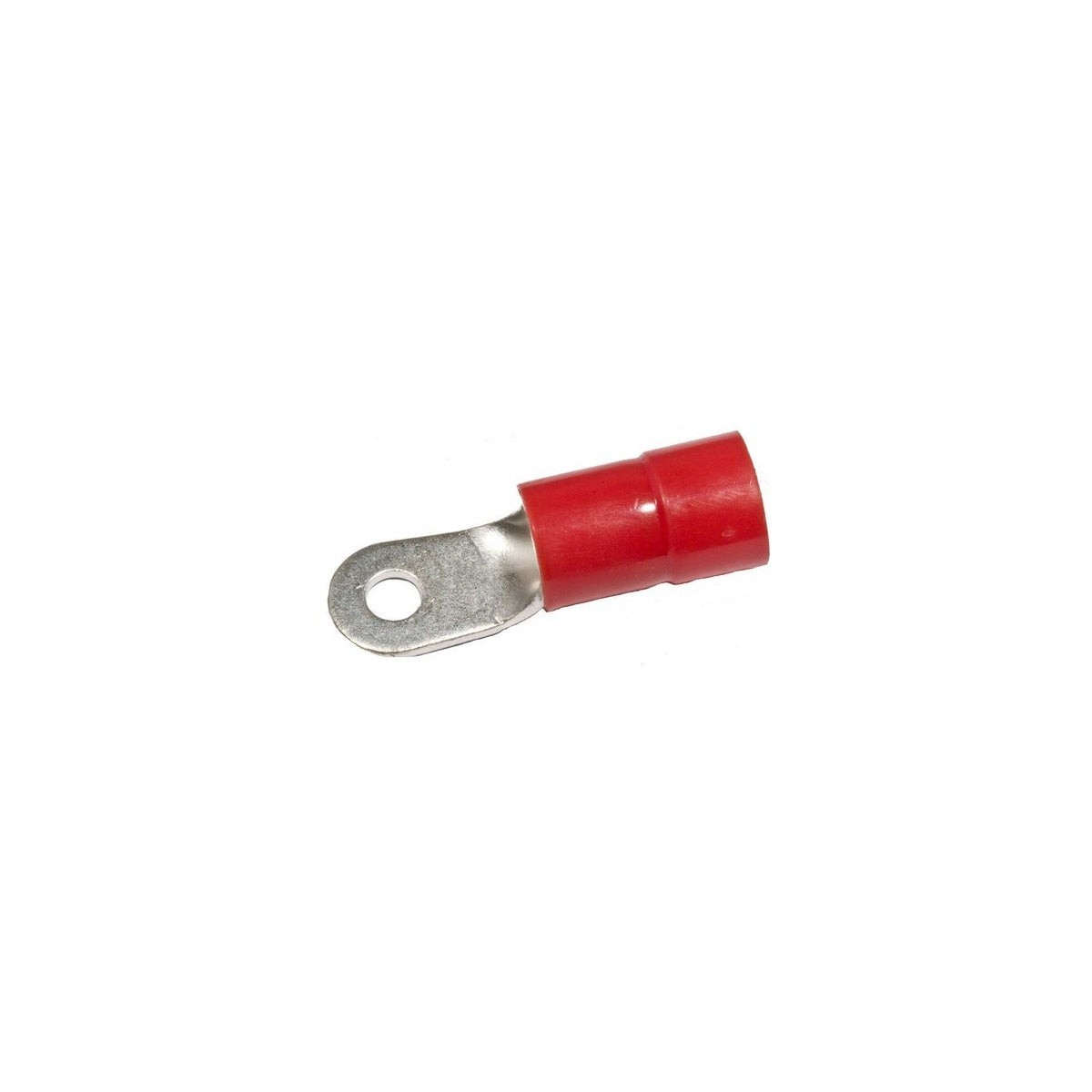

This Nylon Insulated Ring Terminal is designed for secure electrical connections in wire and cable assemblies. Manufactured by Morris Products, it is suitable for electrical distributors and switchgear suppliers requiring reliable, corrosion-resistant terminals with clear wire size identification. The terminal features a red nylon insulation for easy color coding and is intended for use with 2 AWG wire and a 1/4" stud size, supporting applications up to 600 volts.

Specifications

• Material: Copper
• Insulation Type: Nylon
• Finish: Electro-tin plated
• Color: Red
• Wire Range: 2 AWG
• Stud Size: 1/4"
• Temperature Rating: 105°C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-O
• Amp Rating: 170 Amps
• Dimensions (L x W x D in inches): 2.047 x 0.602 x 0.571
• Product Weight: 0.0480 lbs
• Certifications: UL, cUL, RoHS

Features

• Color coded nylon insulation for easy identification
• Manufactured from high strength copper alloy for durability
• Electro-tin plating provides corrosion resistance
• Expanded insulation funnel entry eliminates strand hang-up and improves crimping reliability
• Wire range stamped on surface for quick interpretation
• Brazed seam prevents splitting under maximum pressure
• Serrated barrel and flared sleeve position provide excellent electrical contact and mechanical stress relief
