Nylon Insulated Multiple-Stud Ring Terminals - Electrical Wire and Cable Connectivity

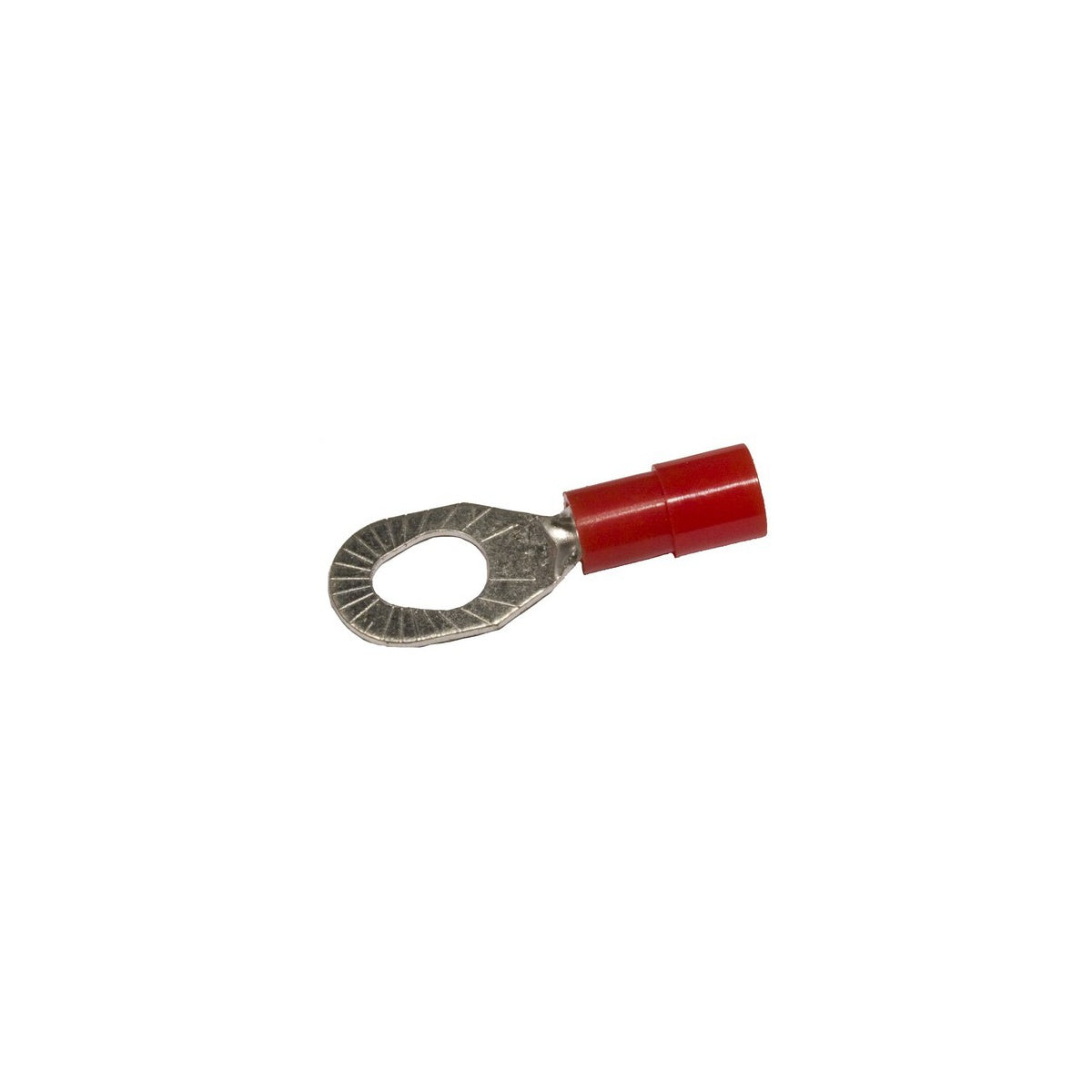

This nylon insulated multiple-stud ring terminal is designed for secure electrical connections in wire and cable applications. Suitable for wire sizes 22-16 AWG and stud sizes #6, #8, and #10, it provides reliable termination for electrical distributors and switchgear suppliers requiring durable and corrosion-resistant components. The terminal features a red nylon insulation for easy identification and enhanced mechanical protection.

Specifications

• Material: Copper
• Insulation Type: Nylon
• Finish: Electro-tin plated
• Color: Red
• Wire Range: 22-16 AWG
• Stud Size: #6, #8, #10
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Amp Rating: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps
• Dimensions (L x W x D): 0.996" x 0.339" x 0.157"

Features

• Color-coded insulation for easy identification
• Manufactured from high-strength copper alloy for durability
• Electro-tin plated finish for corrosion resistance
• Expanded insulation funnel entry eliminates strand hang-up, improving crimping rates and termination reliability
• Wire range stamped on surface for easy interpretation
• Brazed seam prevents splitting under maximum pressure
• Serrated barrel and flared sleeve position provide excellent electrical contact and mechanical stress relief at insulation and barrel junction
• UL, cUL, and RoHS certified
