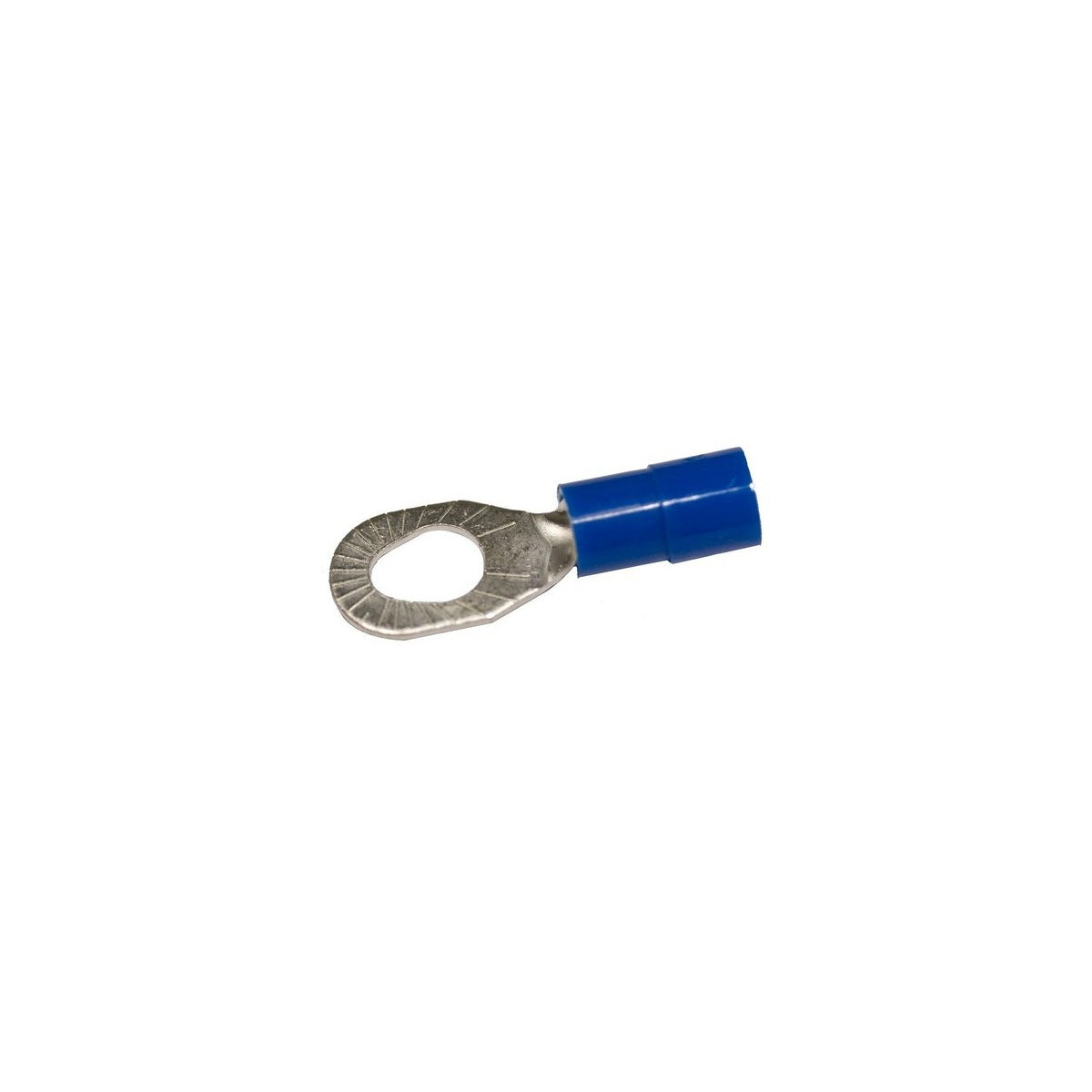

Nylon Insulated Multiple-Stud Ring Terminals - Electrical Wire and Cable Connector

This nylon insulated multiple-stud ring terminal is designed for secure electrical connections in wire and cable applications. It is suitable for wire ranges 16-14 AWG and stud sizes #6, #8, and #10. Manufactured by Morris Products, this terminal provides reliable mechanical and electrical performance for electrical distributors, lighting solutions, and switchgear suppliers.

Specifications

• Material: Copper
• Insulation Type: Nylon
• Finish: Electro-tin plated
• Color: Blue
• Wire Range: 16-14 AWG
• Stud Size: #6, #8, #10
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Amp Rating: 18 Amps (16 AWG), 30 Amps (14 AWG)
• Dimensions (inches): Length 0.996, Width 0.339, Depth 0.177
• Product Weight: 0.0040 lbs
• Certifications: UL, cUL, RoHS

Features

• Color-coded nylon insulation for easy identification
• Manufactured from high strength copper alloy for durability
• Electro-tin plating provides corrosion resistance
• Expanded insulation funnel entry reduces strand hang-up and improves crimping reliability
• Wire range stamped on surface for easy interpretation
• Brazed seam prevents splitting under maximum pressure
• Serrated barrel and flared sleeve position ensure excellent contact and mechanical stress relief at insulation and barrel junction
