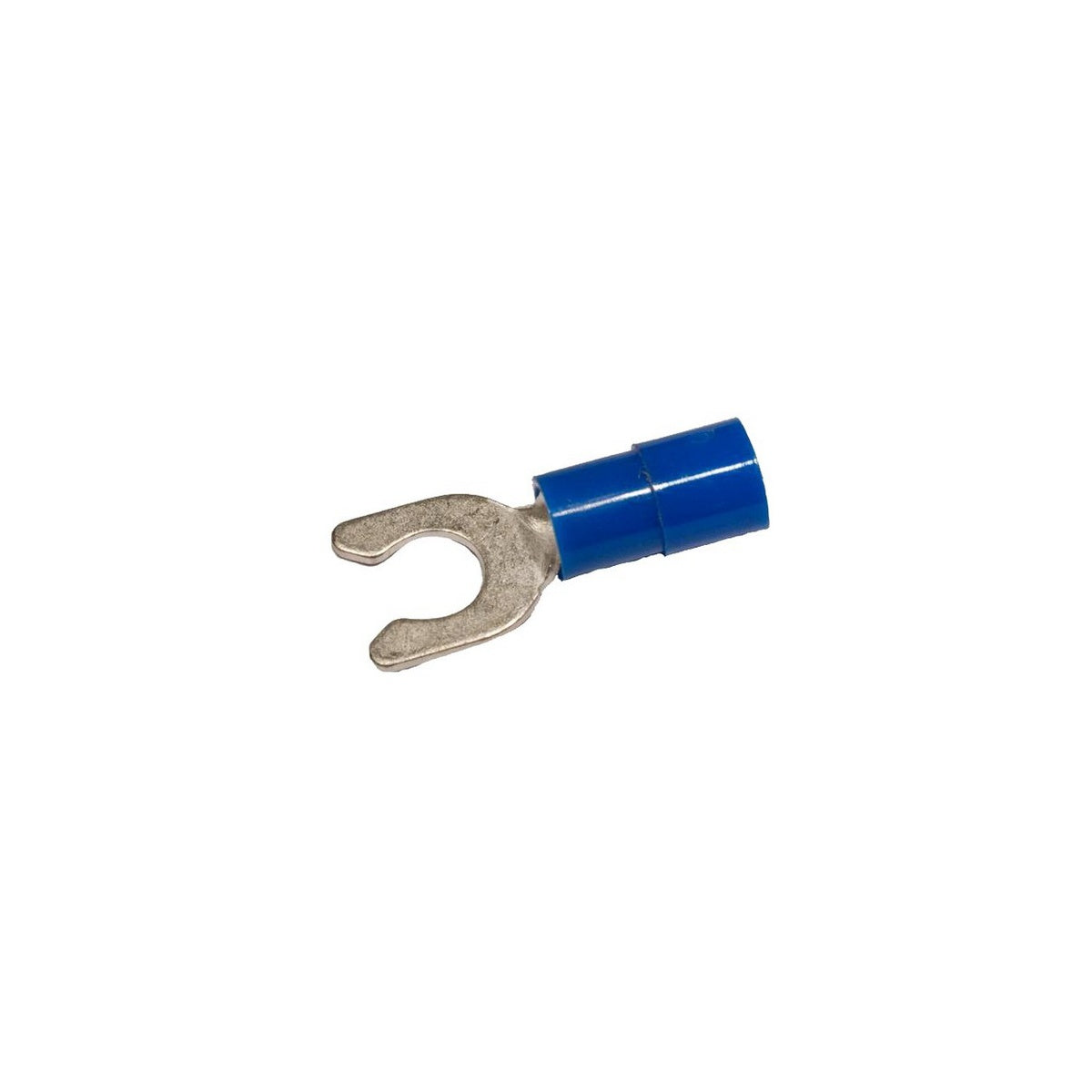

Nylon Insulated Locking Fork/Spade Terminals - 16-14 Wire, #8 Stud Electrical Connector

This nylon insulated locking fork/spade terminal is designed for reliable electrical connections in wire and cable applications. Suitable for use by electrical distributors and switchgear suppliers, it supports wire sizes 16-14 AWG and features a #8 stud size. The terminal is constructed from copper with electro-tin plating for corrosion resistance and includes blue nylon insulation for easy identification.

Specifications

• Material: Copper Tubular/Copper Plate
• Insulation Type: Nylon
• Finish: Electro-Tin Plated
• Color: Blue
• Wire Range: 16-14 AWG
• Stud Size: #8
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Amp Rating: 18 Amps (16 AWG), 30 Amps (14 AWG)
• Dimensions (L x D x D1 x D2 x E x F x W x T in inches): 0.866 x 0.161 x 0.091 x 0.169 x 0.433 x 0.256 x 0.319 x 0.031
• UL Certified: Yes
• cUL Certified: Yes
• RoHS Compliant: Yes

Features

• Color coded blue nylon insulation for easy identification
• Manufactured from high strength copper alloy for durability
• Electro-tin plating provides corrosion resistance
• Easy entry expanded insulation reduces strand hang-up, improving crimping rates and termination reliability
• Wire range stamped on the surface for quick wire size identification
• Brazed seams prevent terminal splitting under maximum pressure
• Serrated barrel and flared insulation sleeve enhance electrical contact and provide mechanical stress relief at the insulation-barrel junction
