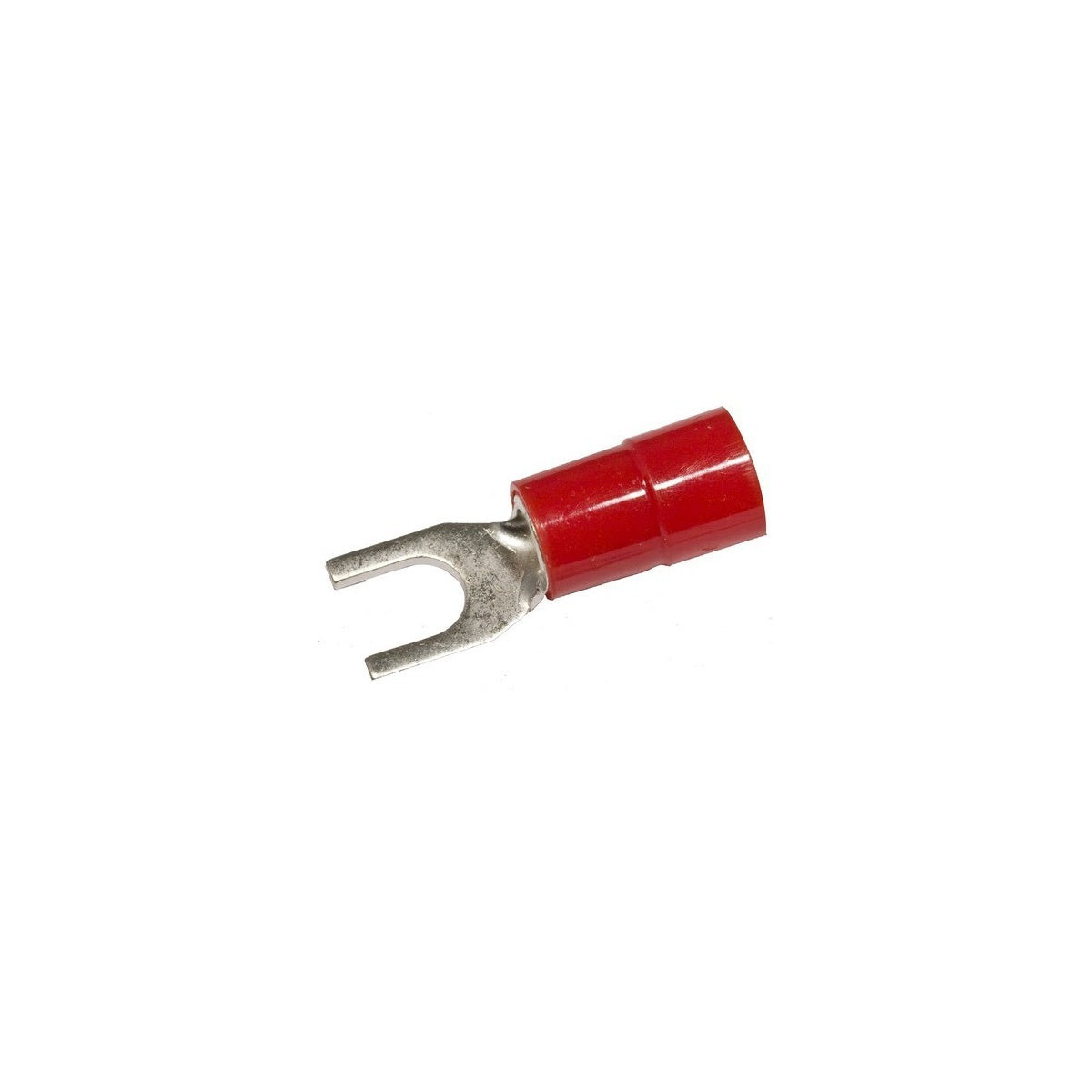

Nylon Insulated Fork/Spade Terminals - 8 AWG Wire, #10 Stud for Electrical Connections

This nylon insulated fork/spade terminal is designed for reliable electrical connections in wire and cable applications. Manufactured from high-strength copper alloy with electro-tin plating, it ensures corrosion resistance and mechanical durability. The red nylon insulation provides color-coded identification, suitable for use in electrical distributor and lighting solutions where secure terminal connections are required. It is rated for 600 V and 105°C, supporting up to 70 amps for 8 AWG wire.

Specifications

• Material: Copper Tubular/Copper Plate
• Insulation Type: Nylon
• Finish: Electro-Tin Plated
• Color: Red
• Wire Range: 8 AWG
• Stud Size: #10
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Amp Rating: 70 Amps
• Dimensions (L x D x D1 x D2 x E x F x W x T in inches): 1.114 x 0.315 x 0.177 x 0.209 x 0.63 x 0.319 x 0.413 x 0.047

Features

• Color-coded insulation for easy identification
• Manufactured from high strength copper alloy for durability
• Electro-tin plated finish for corrosion resistance
• Easy entry expanded insulation eliminates strand ‚ÄúHang Up‚Äù to increase crimping rates and termination reliability
• Wire range stamped on surface for clear interpretation
• Brazed seams prevent splitting under maximum pressure
• Serrated barrel and flared insulation sleeve provide excellent contact and mechanical stress relief at insulation and barrel junction
• UL, cUL, and RoHS certified

Downloads & Links

• Spec Sheet
