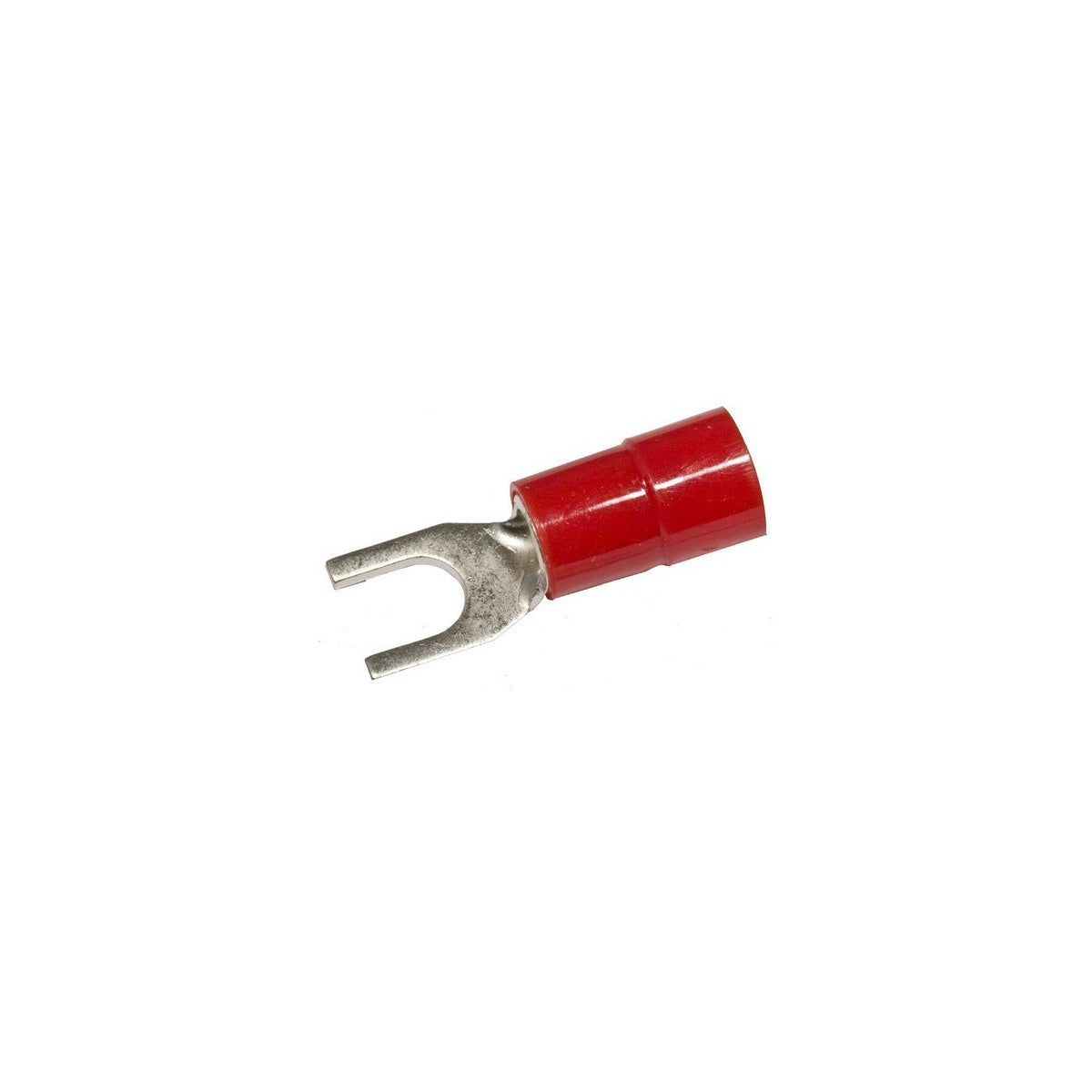

Nylon Insulated Fork/Spade Terminals - 6 AWG Wire, 5/16" Stud for Electrical Connections

This nylon insulated fork/spade terminal is designed for secure and reliable electrical connections in wire and cable assemblies. Suitable for use by electrical distributors and switchgear suppliers, it features a 6 AWG wire range and a 5/16" stud size, making it compatible with a variety of industrial and commercial electrical applications.

Specifications

• Material: Copper Tubular/Copper Plate
• Insulation Type: Nylon
• Finish: Electro-Tin Plated
• Color: Blue
• Wire Range: 6 AWG
• Stud Size: 5/16"
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-O
• Amp Rating: 95 Amps
• Length: 1.555 inches (39.5 mm)
• Diameter (D): 0.433 inches (11.0 mm)
• Diameter (D1): 0.228 inches (5.8 mm)
• Diameter (D2): 0.315 inches (8.0 mm)
• Dimension E: 0.846 inches (21.5 mm)
• Dimension F: 0.421 inches (10.7 mm)
• Dimension W: 0.543 inches (13.8 mm)
• Thickness (T): 0.059 inches (1.5 mm)

Features

• Color coded blue nylon insulation for easy identification
• Manufactured from high strength copper alloy for durability
• Electro-tin plated surface for corrosion resistance
• Easy entry expanded insulation design eliminates strand hang-up, improving crimping rates and termination reliability
• Wire range stamped on the surface for quick identification
• Brazed seams prevent splitting under maximum pressure
• Serrated barrel and flared insulation sleeve provide excellent electrical contact and mechanical stress relief at the insulation and barrel junction
• UL, cUL, and RoHS certified for compliance and safety
