Nylon Insulated Fork/Spade Terminals - 22-16 Wire, #4 Stud for Electrical Connections

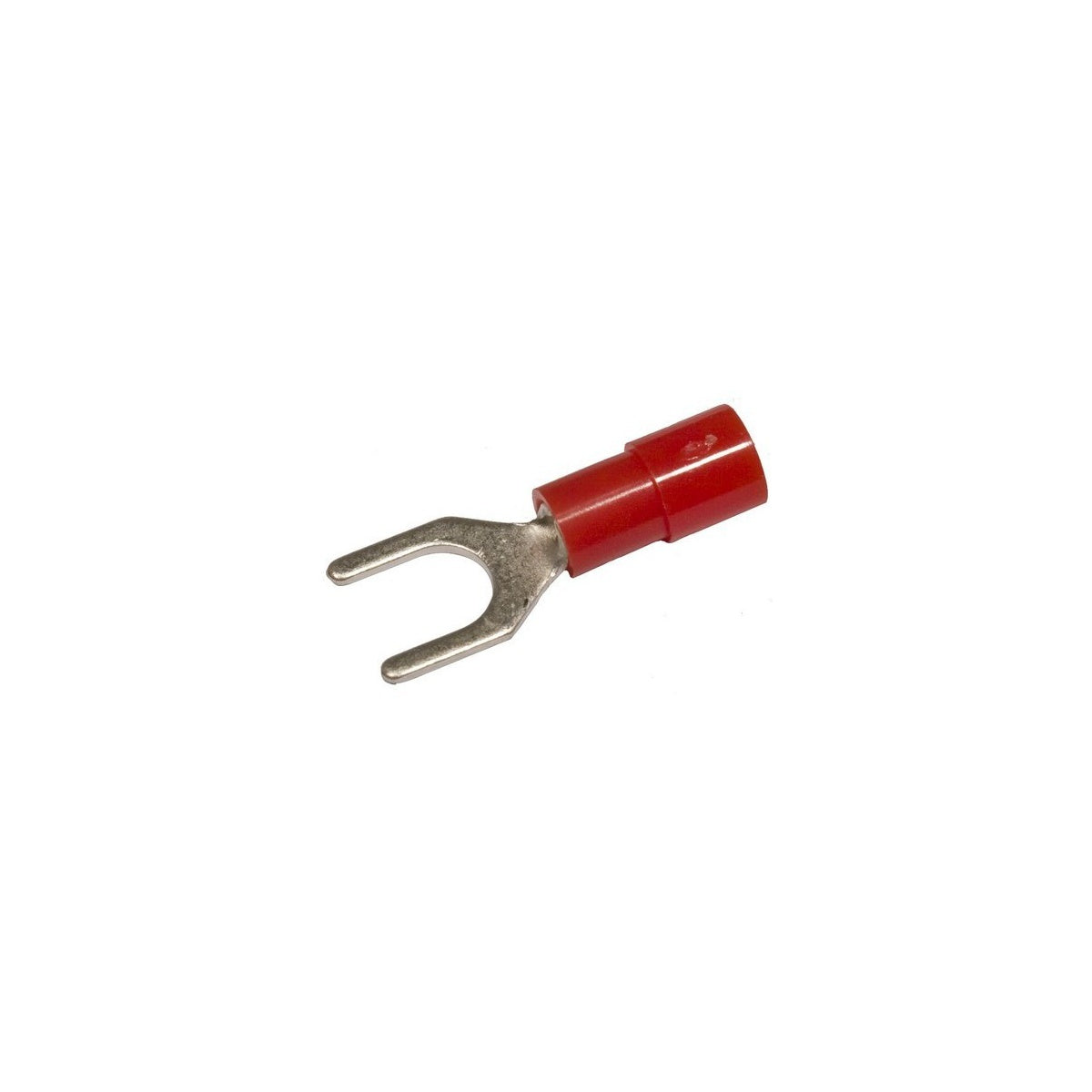

This nylon insulated fork/spade terminal is designed for secure electrical connections in wire and cable applications. Manufactured by Morris Products, it is suitable for use by electrical distributors and switchgear suppliers requiring reliable, corrosion-resistant terminals for 22-16 AWG wire ranges and #4 stud sizes. The terminal features durable copper construction with nylon insulation for mechanical and electrical stress relief.

Specifications

• Material: Copper Tubular/Copper Plate
• Insulation Type: Nylon
• Finish: Electro-Tin Plated
• Color: Red
• Wire Range: 22-16 AWG
• Stud Size: #4
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Amp Rating: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps
• Dimensions (inches): Length 0.866, Diameter 0.157, D1 0.067, D2 0.126, E 0.433, F 0.256, W 0.224, T 0.03

Features

• Color coded red nylon insulation for easy identification
• Manufactured from high strength copper alloy for durability
• Electro-tin plated surface for corrosion resistance
• Easy entry expanded insulation eliminates strand hang-up, improving crimping rates and termination reliability
• Wire range stamped on the surface for quick interpretation
• Brazed seams prevent splitting under maximum pressure
• Serrated barrel and flared insulation sleeve provide excellent contact and mechanical stress relief at insulation and barrel junction
• UL, cUL, and RoHS certified
