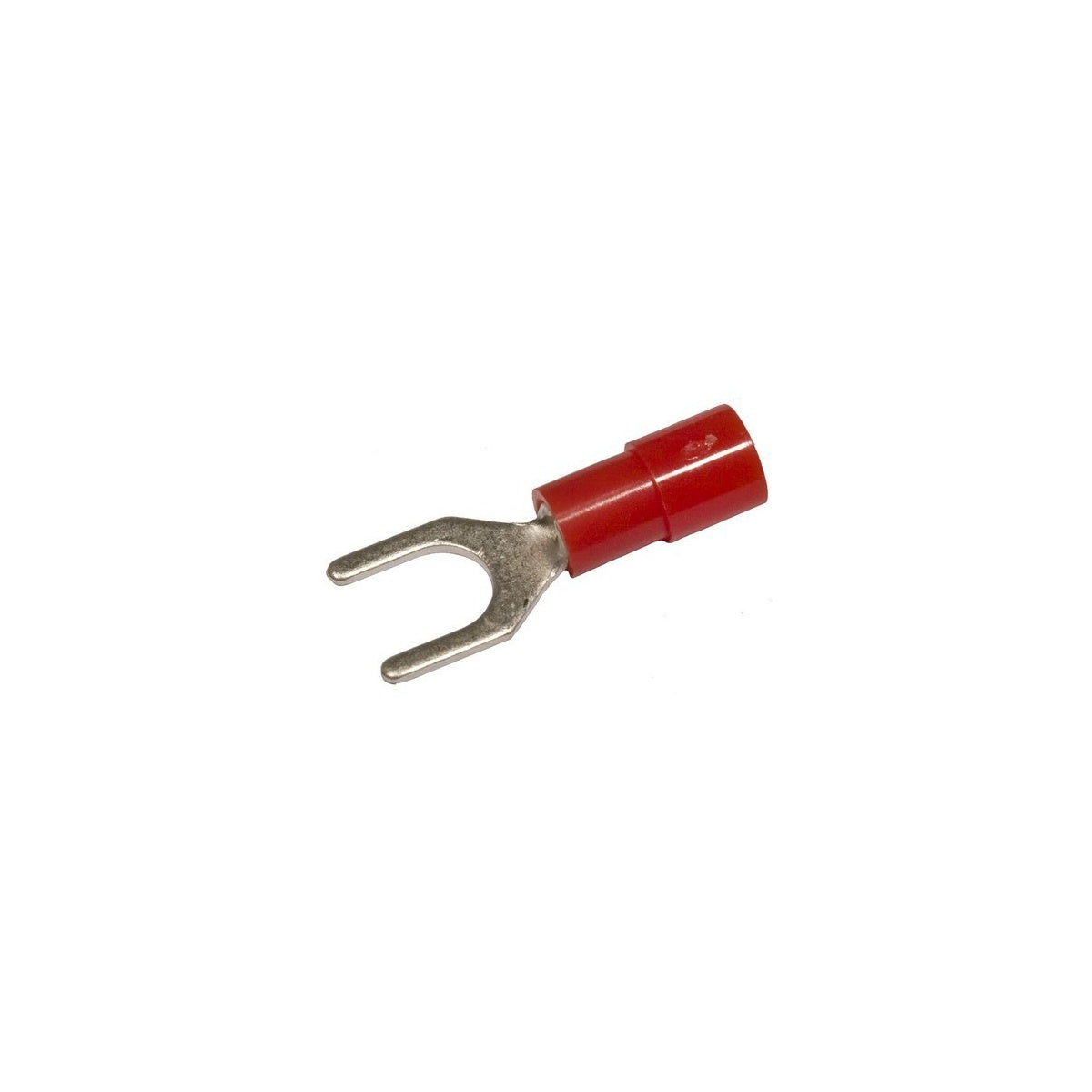

Nylon Insulated Fork/Spade Terminals - 22-16 Wire, 1/4" Stud for Electrical Wire and Cable Connections

This nylon insulated fork/spade terminal is designed for secure and reliable electrical connections in wire and cable installations. Manufactured by Morris Products, it is suitable for use by electrical distributors and switchgear suppliers requiring durable and corrosion-resistant terminals compatible with 22-16 AWG wire sizes. The red color-coded nylon insulation provides easy identification and mechanical stress relief.

Specifications

• Material: Copper Tubular/Copper Plate
• Insulation Type: Nylon
• Finish: Electro-Tin Plated
• Color: Red
• Wire Range: 22-16 AWG
• Stud Size: 1/4"
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Amp Rating: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps
• Dimensions (inches): Length 1.102, Diameter 0.157, D1 0.067, D2 0.252, E 0.433, F 0.433, W 0.472, T 0.03
• Product Weight: 0.0040 lbs
• Certifications: UL, cUL, RoHS Compliant

Features

• Color coded insulation for easy identification
• Manufactured from high strength copper alloy for durability
• Electro-tin plating provides corrosion resistance
• Easy entry expanded insulation eliminates strand hang-up, improving crimping reliability
• Wire range stamped on the surface for clear interpretation
• Brazed seams prevent splitting under maximum pressure
• Serrated barrel and flared insulation sleeve ensure excellent contact and mechanical stress relief at insulation and barrel junction

Downloads & Links

• Spec Sheet
