Nylon Insulated Fork/Spade Terminals - 16-14 Wire, #8 Stud for Electrical Connections

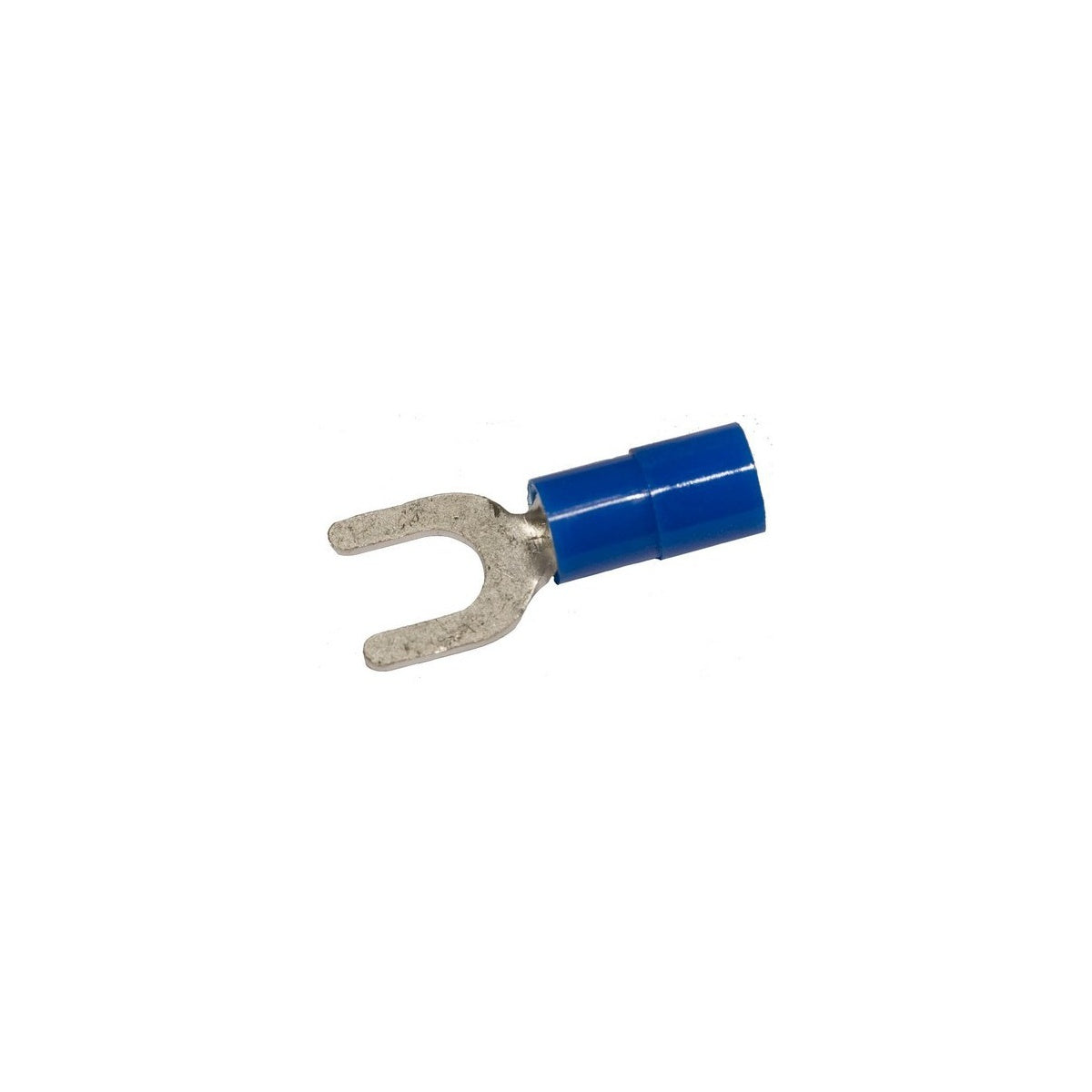

This nylon insulated fork/spade terminal is designed for secure and reliable electrical connections in wire and cable applications. Manufactured by Morris Products, it is suitable for use by electrical distributors and switchgear suppliers seeking durable and corrosion-resistant terminals for 16-14 AWG wires with a #8 stud size. The terminal features color-coded blue nylon insulation for easy identification and is electro-tin plated for enhanced corrosion resistance.

Specifications

• Material: Copper Tubular/Copper Plate
• Insulation Type: Nylon
• Finish: Electro-Tin Plated
• Color: Blue
• Wire Range: 16-14 AWG
• Stud Size: #8
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-O
• Amp Rating: 18 Amps (16 AWG), 30 Amps (14 AWG)
• Dimensions (inches): Length 0.866, Diameter 0.177, D1 0.091, D2 0.169, E 0.433, F 0.256, W 0.311, T 0.031
• UPC: 601986116268
• Manufacturer Part #: 11626

Features

• Color-coded insulation for easy identification
• High strength copper alloy construction for durability
• Electro-tin plating provides corrosion resistance
• Easy entry expanded insulation eliminates strand hang-up, improving crimping reliability
• Wire range stamped on the surface for quick interpretation
• Brazed seams prevent splitting under maximum pressure
• Serrated barrel and flared insulation sleeve ensure excellent contact and mechanical stress relief at insulation and barrel junction
• UL, cUL, and RoHS certified

Downloads & Links

• Spec Sheet
