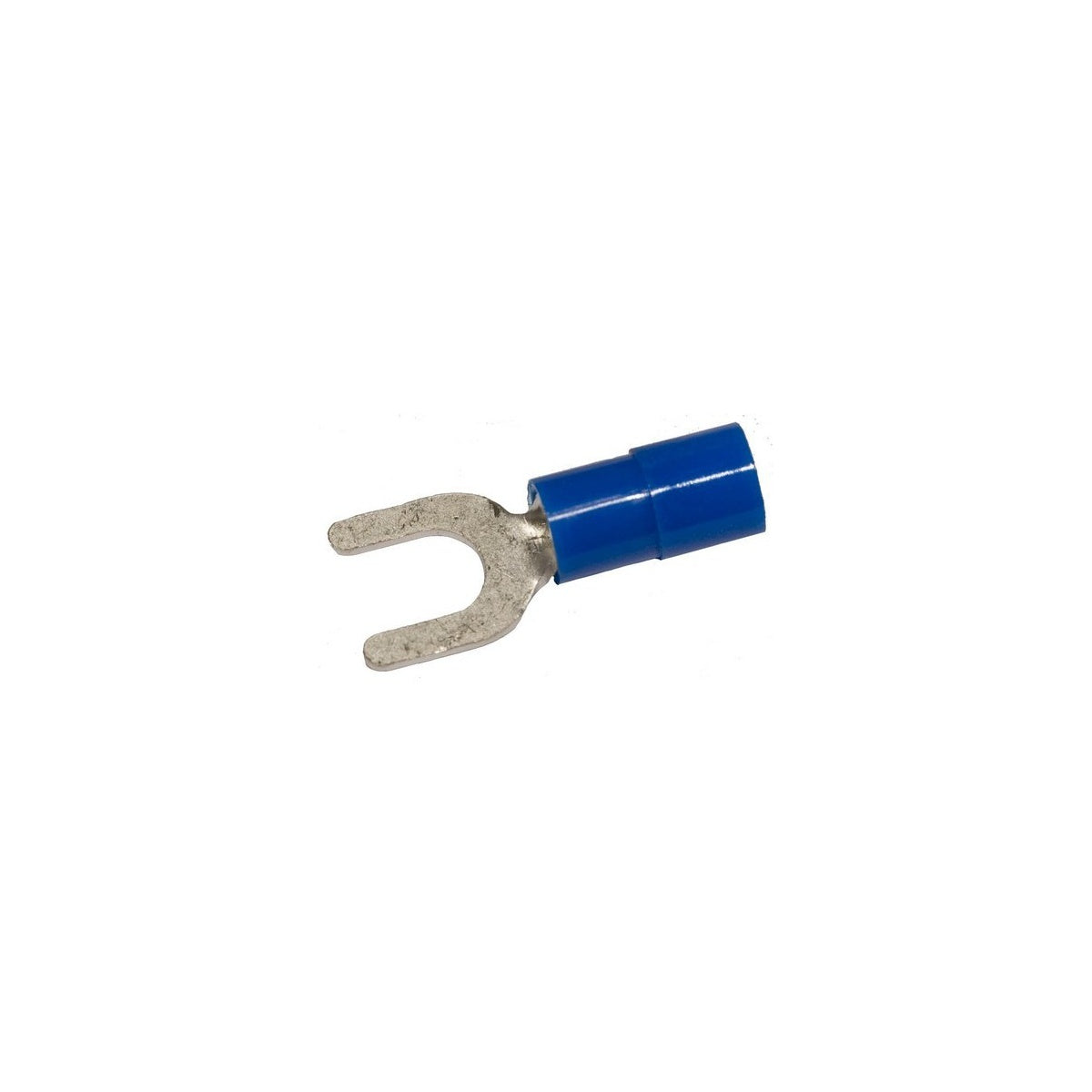

Nylon Insulated Fork/Spade Terminals - 16-14 Wire, #6 Stud | Electrical Wire Terminals

The Nylon Insulated Fork/Spade Terminal is designed for secure and reliable electrical connections in wire and cable applications. Manufactured by Morris Products, this terminal is suitable for use by electrical distributors and switchgear suppliers requiring durable and corrosion-resistant wiring solutions. It supports wire sizes 16-14 AWG and fits a #6 stud, making it ideal for various lighting solutions and electrical installations.

Specifications

• Material: Copper Tubular/Copper Plate
• Insulation Type: Nylon
• Finish: Electro-Tin Plated
• Color: Blue
• Wire Range: 16-14 AWG
• Stud Size: #6
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Amp Rating: 16 AWG - 18 Amps, 14 AWG - 30 Amps
• Length: 0.866 inches (22.0 mm)
• Diameter (D): 0.177 inches (4.5 mm)
• Diameter (D1): 0.091 inches (2.3 mm)
• Diameter (D2): 0.146 inches (3.7 mm)
• Dimension E: 0.433 inches (11.0 mm)
• Dimension F: 0.256 inches (6.5 mm)
• Dimension W: 0.283 inches (7.2 mm)
• Thickness (T): 0.031 inches (0.8 mm)

Features

• Color-coded nylon insulation for easy identification
• Manufactured from high-strength copper alloy for durability
• Electro-tin plating provides corrosion resistance
• Easy entry expanded insulation reduces strand hang-up and improves crimping reliability
• Wire range clearly stamped on the surface for quick interpretation
• Brazed seams prevent splitting under maximum pressure
• Serrated barrel and flared insulation sleeve ensure excellent electrical contact and mechanical stress relief at the insulation-barrel junction
• UL, cUL, and RoHS certified for compliance and safety
