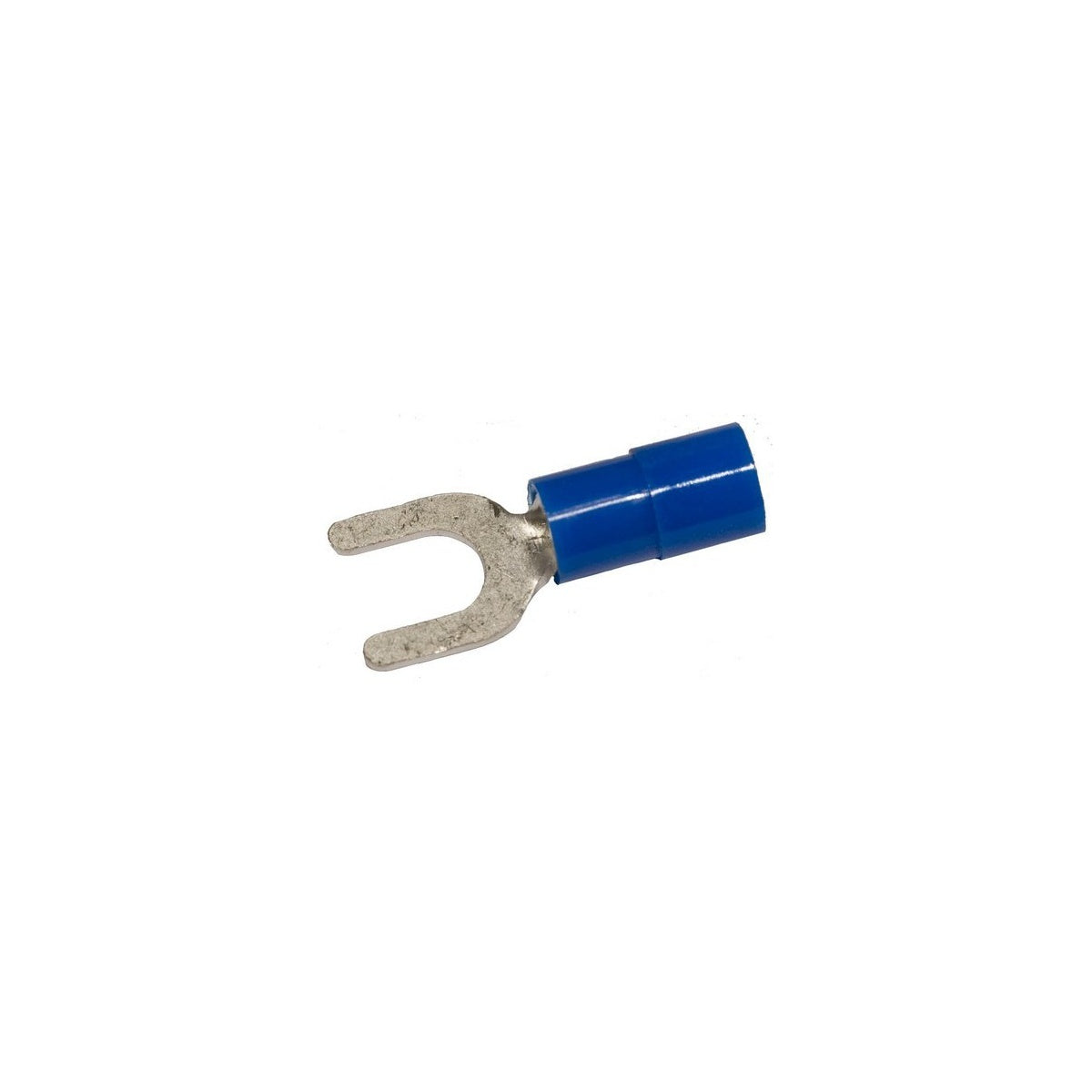

Nylon Insulated Fork/Spade Terminals - 16-14 Wire, #4 Stud Electrical Connectors

This nylon insulated fork/spade terminal is designed for secure and reliable electrical connections in wire and cable applications. Suitable for use by electrical distributors and switchgear suppliers, this terminal supports wire sizes 16-14 AWG and fits a #4 stud. Its copper construction with electro-tin plating ensures corrosion resistance and optimal conductivity, making it appropriate for various lighting solutions and electrical installations.

Specifications

• Material: Copper Tubular/Copper Plate
• Insulation Type: Nylon
• Finish: Electro-Tin Plated
• Color: Blue
• Wire Range: 16-14 AWG
• Stud Size: #4
• Temperature Rating: 105°C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Amp Rating: 18 Amps (16 AWG), 30 Amps (14 AWG)
• Dimensions (inches): Length 0.866, Diameter 0.177, D1 0.091, D2 0.126, E 0.433, F 0.256, W 0.224, T 0.031

Features

• Color-coded nylon insulation for easy identification
• High strength copper alloy construction
• Electro-tin plated for corrosion resistance
• Easy entry expanded insulation eliminates strand hang-up, improving crimping rates and termination reliability
• Wire range stamped on the surface for quick interpretation
• Brazed seams prevent splitting under maximum pressure
• Serrated barrel and flared insulation sleeve provide excellent contact and mechanical stress relief at insulation and barrel junction
