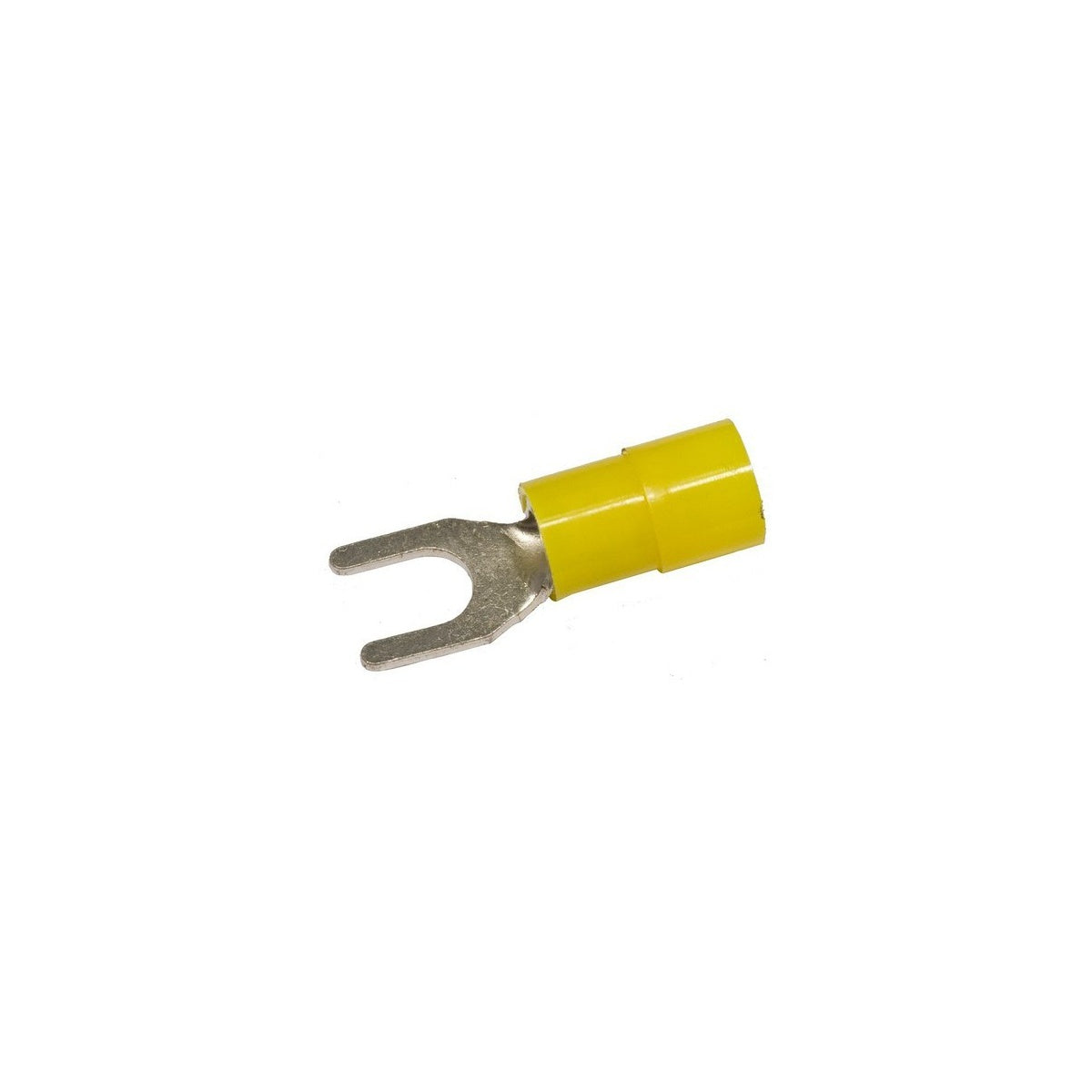

Nylon Insulated Fork/Spade Terminals - 12-10 Wire, #8 Stud for Electrical Connections

This nylon insulated fork/spade terminal is designed for secure and reliable electrical connections in wire and cable assemblies. Manufactured by Morris Products, it is suitable for use by electrical distributors and switchgear suppliers requiring durable and corrosion-resistant terminations for 12-10 AWG wires with a #8 stud size. The terminal features color-coded insulation for easy identification and is optimized for efficient crimping and mechanical stress relief.

Specifications

• Material: Copper Tubular/Copper Plate
• Insulation Type: Nylon
• Finish: Electro-Tin Plated
• Color: Yellow
• Wire Range: 12-10 AWG
• Stud Size: #8
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-O
• Amp Rating: 35 Amps (12 AWG), 50 Amps (10 AWG)
• Dimensions (inches): L 1.004, D 0.252, D1 0.134, D2 0.169, E 0.512, F 0.276, W 0.327, T 0.039
• Packaging: Bag Qty 100, Master Bag Qty 1000
• Certifications: UL, cUL, RoHS Compliant

Features

• Color-coded nylon insulation for easy wire gauge identification
• High-strength copper alloy construction for electrical conductivity and durability
• Electro-tin plating provides corrosion resistance
• Easy entry expanded insulation design eliminates strand hang-up, improving crimping reliability
• Wire range stamped on the terminal surface for quick verification
• Brazed seams prevent splitting under maximum pressure
• Serrated barrel and flared insulation sleeve ensure excellent contact and mechanical stress relief at the insulation and barrel junction
