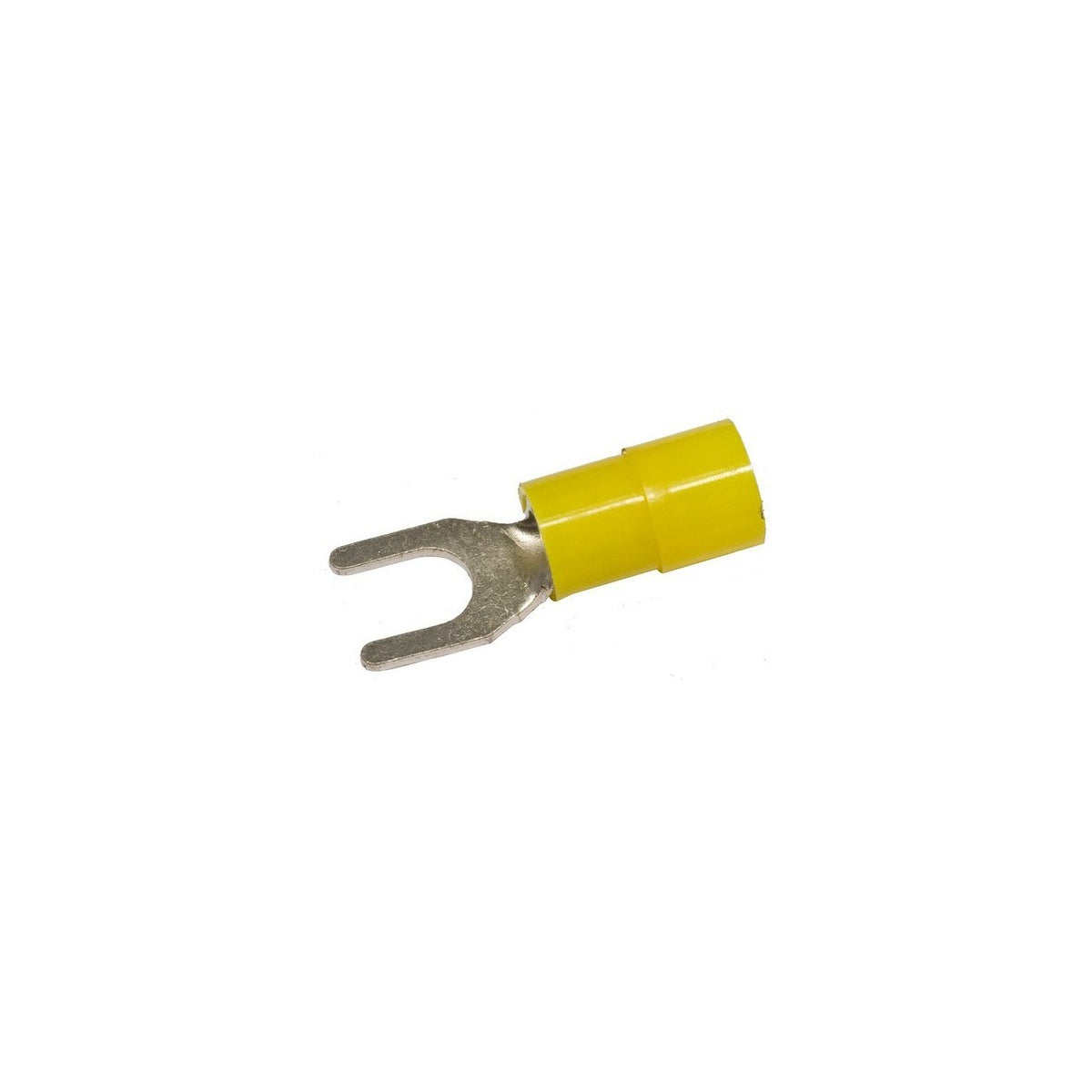

Nylon Insulated Fork/Spade Terminals - 12-10 Wire, #6 Stud for Electrical Wire and Cable Connections

This nylon insulated fork/spade terminal is designed for reliable electrical connections in wire and cable applications. Suitable for 12-10 AWG wire sizes and #6 stud, it provides secure termination with corrosion-resistant copper construction and color-coded insulation for easy identification. Ideal for use by electrical distributors and switchgear suppliers requiring durable and efficient wiring solutions.

Specifications

• Material: Copper Tubular/Copper Plate
• Insulation Type: Nylon
• Finish: Electro-Tin Plated
• Color: Yellow
• Wire Range: 12-10 AWG
• Stud Size: #6
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Amp Rating: 12 AWG - 35 Amps, 10 AWG - 50 Amps
• Dimensions (inches): Length 1.004, Diameter 0.252, D1 0.134, D2 0.146, E 0.512, F 0.276, W 0.327, T 0.039

Features

• Color-coded insulation for easy identification
• Manufactured from high strength copper alloy for durability
• Electro-tin plated finish provides corrosion resistance
• Easy entry expanded insulation reduces strand hang-up and improves crimping reliability
• Wire range stamped on surface for quick interpretation
• Brazed seams prevent splitting under maximum pressure
• Serrated barrel and flared insulation sleeve ensure excellent contact and mechanical stress relief at insulation and barrel junction
• UL, cUL, and RoHS certified
