Nylon Insulated Fork/Spade Terminals - 12-10 Wire, 5/16" Stud for Electrical Distribution

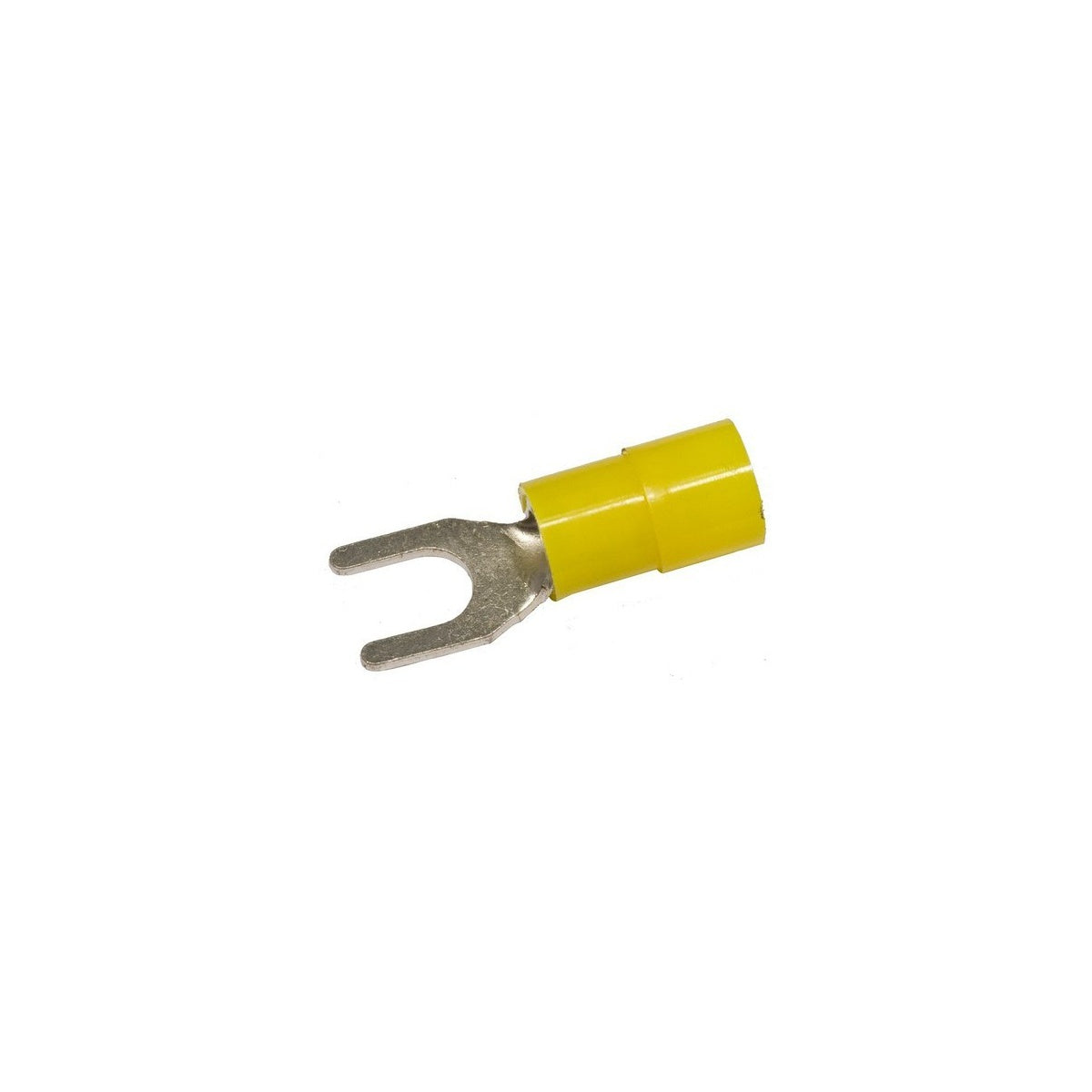

This nylon insulated fork/spade terminal is designed for secure and reliable electrical connections in wire and cable applications. Manufactured by Morris Products, it is suitable for use by electrical distributors and switchgear suppliers requiring durable and corrosion-resistant terminals. The terminal accommodates 12-10 AWG wire sizes and fits 5/16" studs, making it ideal for various lighting solutions and electrical wiring installations.

Specifications

• Material: Copper Tubular/Copper Plate
• Insulation Type: Nylon
• Finish: Electro-Tin Plated
• Color: Yellow
• Wire Range: 12-10 AWG
• Stud Size: 5/16"
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Amp Rating: 35 Amps (12 AWG), 50 Amps (10 AWG)
• Dimensions (inches): Length (L) 1.201, Diameter (D) 0.252, D1 0.134, D2 0.315, E 0.512, F 0.413, W 0.551, T 0.039
• Product Weight: 0.0070 lbs
• Certifications: UL, cUL, RoHS

Features

• Color-coded insulation for easy identification
• Manufactured from high-strength copper alloy for durability
• Electro-tin plating provides corrosion resistance
• Easy-entry expanded insulation eliminates strand hang-up, improving crimping rates and termination reliability
• Wire range stamped on the surface for quick interpretation
• Brazed seams prevent splitting under maximum pressure
• Serrated barrel and flared insulation sleeve ensure excellent contact and mechanical stress relief at insulation and barrel junction
