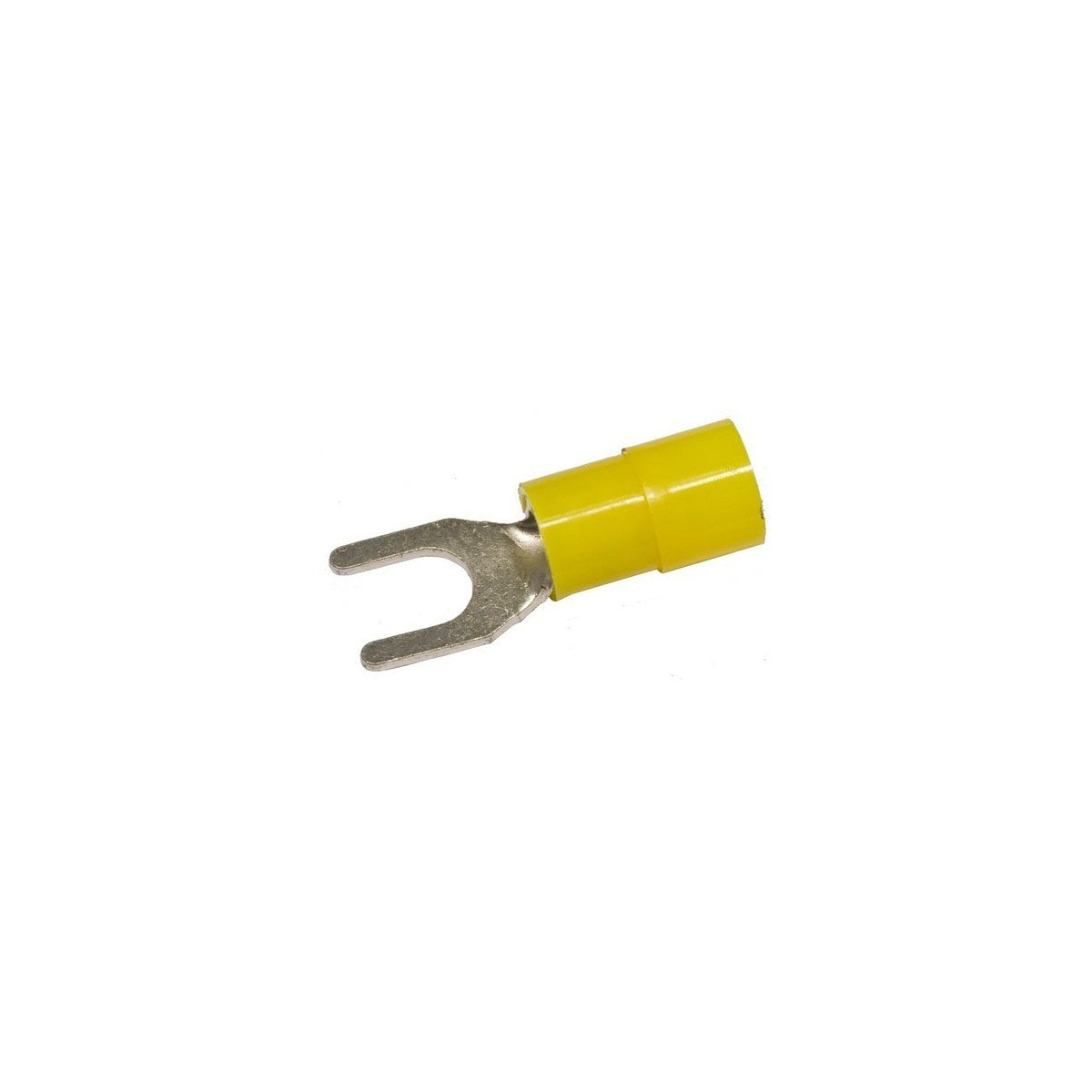

Nylon Insulated Fork/Spade Terminals - 12-10 Wire, #10 Stud for Electrical Connections

This nylon insulated fork/spade terminal is designed for secure and reliable electrical connections in wire and cable applications. Manufactured by Morris Products, it is suitable for use by electrical distributors and switchgear suppliers requiring durable and corrosion-resistant terminals for 12-10 AWG wire sizes with a #10 stud compatibility. The terminal features color-coded yellow nylon insulation for easy identification and enhanced mechanical stress relief.

Specifications

• Material: Copper Tubular/Copper Plate
• Finish: Electro-Tin Plated
• Color: Yellow
• Wire Range: 12-10 AWG
• Stud Size: #10
• Temperature Rating: 105°C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Amp Rating: 35 Amps (12 AWG), 50 Amps (10 AWG)
• Dimensions (inches): Length 1.004, Diameter 0.252, D1 0.134, D2 0.209, E 0.512, F 0.276, W 0.354, T 0.039

Features

• Color-coded nylon insulation for easy identification
• Manufactured from high strength copper alloy
• Electro-tin plated for corrosion resistance
• Easy entry expanded insulation eliminates strand “hang up” for improved crimping reliability
• Wire range stamped on the surface for quick interpretation
• Brazed seams prevent splitting under maximum pressure
• Serrated barrel and flared insulation sleeve provide excellent contact and mechanical stress relief at insulation and barrel junction
