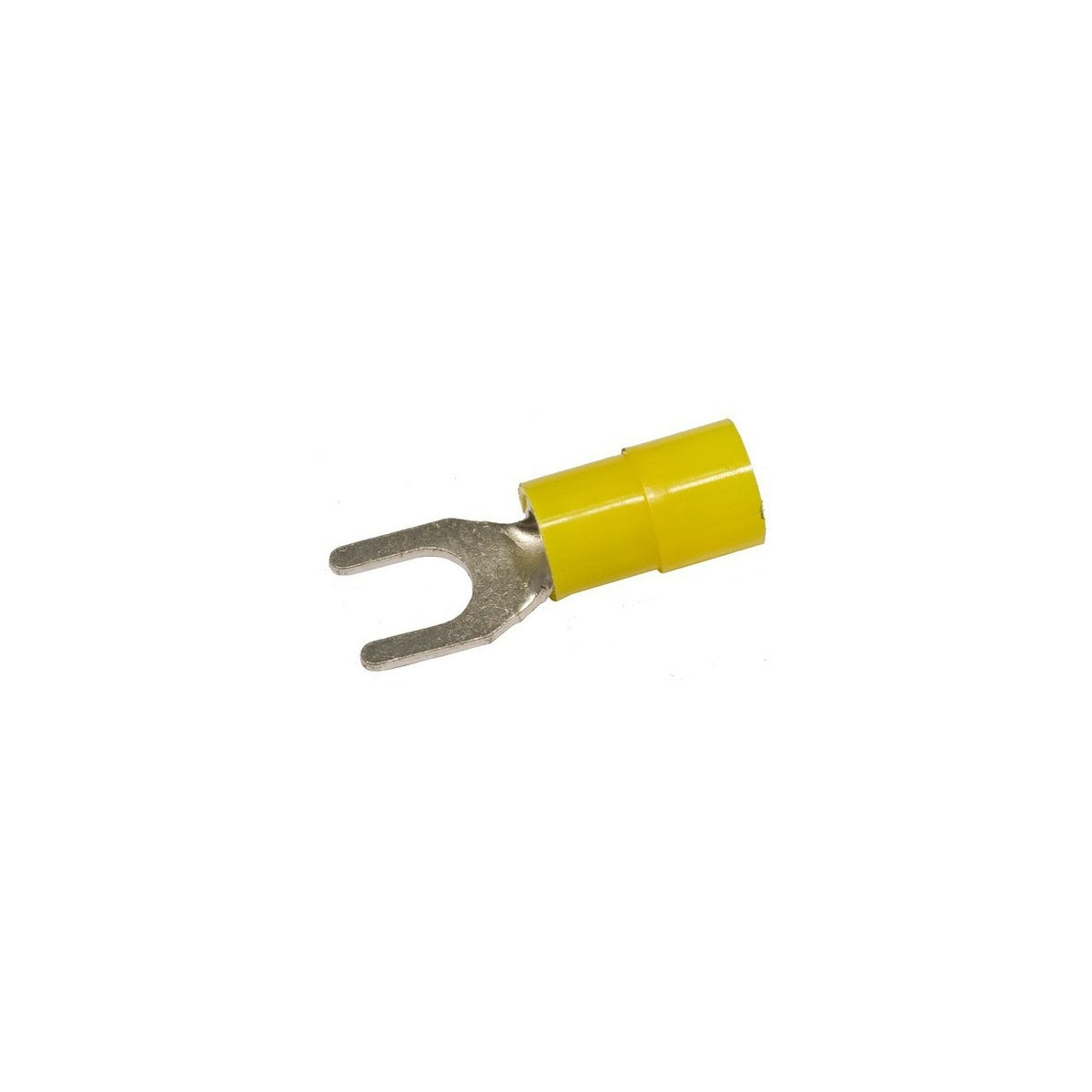

Nylon Insulated Fork/Spade Terminals - 12-10 Wire, 1/4" Stud for Electrical Connections

This nylon insulated fork/spade terminal is designed for secure electrical connections in wire and cable assemblies. Suitable for use by electrical distributors and switchgear suppliers, it provides reliable termination for 12-10 AWG wire sizes with a 1/4" stud. The terminal features high-strength copper construction with corrosion-resistant electro-tin plating and color-coded nylon insulation for easy identification.

Specifications

• Material: Copper Tubular/Copper Plate
• Insulation Type: Nylon
• Finish: Electro-Tin Plated
• Color: Yellow
• Wire Range: 12-10 AWG
• Stud Size: 1/4"
• Length (L): 1.24 inches (31.5 mm)
• Diameter (D): 0.252 inches (6.4 mm)
• Temperature Rating: 105¬∞C
• Voltage Rating: 600 V
• Flammability Rating: UL94V-0
• Amperage Rating: 35 Amps (12 AWG), 50 Amps (10 AWG)

Features

• Color-coded insulation for quick wire gauge identification
• Manufactured from high strength copper alloy for durability
• Electro-tin plated surface for enhanced corrosion resistance
• Easy entry expanded insulation reduces strand hang-up and improves crimping reliability
• Wire range stamped on terminal surface for easy interpretation
• Brazed seams prevent splitting under maximum pressure
• Serrated barrel and flared insulation sleeve provide excellent electrical contact and mechanical stress relief at the insulation and barrel junction
• UL, cUL, and RoHS certified for compliance and safety
