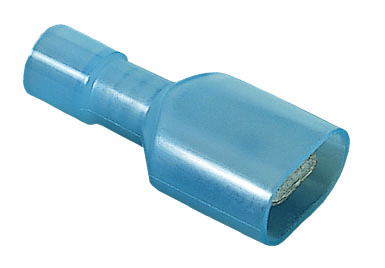

Nylon Fully-Insulated Male Disconnect, 16-14 AWG, .250", Box of 25
SKU: #212747
Part: #83-9921
UPC: 783250490769
Nylon Fully-Insulated Male Disconnect, 16-14 AWG, .250", Box of 25
SKU: #212747
Part: #83-9921
UPC: 783250490769
Total Price: $0.69 per each Sold in increments of 25 each
Next day delivery
Description
Nylon Fully-Insulated Male Disconnect, 16-14 AWG – Electrical Connector
This Nylon Fully-Insulated Male Disconnect by IDEAL Industries is designed for secure and reliable wire termination in electrical systems. Suitable for wire ranges 16-14 AWG, it provides durable insulation and a tin-plated brass connection, making it an essential component for electrical distributors, lighting solutions, wire and cable assemblies, and switchgear suppliers.
Specifications
- Manufacturer Part #: 83-9921
- Material: Brass, Nylon
- Finish: Tin-Plated
- Connection Type: Male
- Insulation Diameter: 0.185 in (4.7 mm)
- Wire Range: 16-14 AWG (1.5 - 2.5 mm²)
- Tab Size: 0.250 x 0.032 in (6.35 x 0.8 mm)
- Dimensions (inches): Length 0.945, Width 0.433, Tab Width 0.250, Tab Thickness 0.303
- Product Weight: 0.2000 lbs
Features
- Color-coded nylon insulation for easy wire size identification
- Durable tin-plated brass construction for corrosion resistance
- Fully insulated design enhances electrical safety
- Packaged in durable plastic for convenient storage and handling
