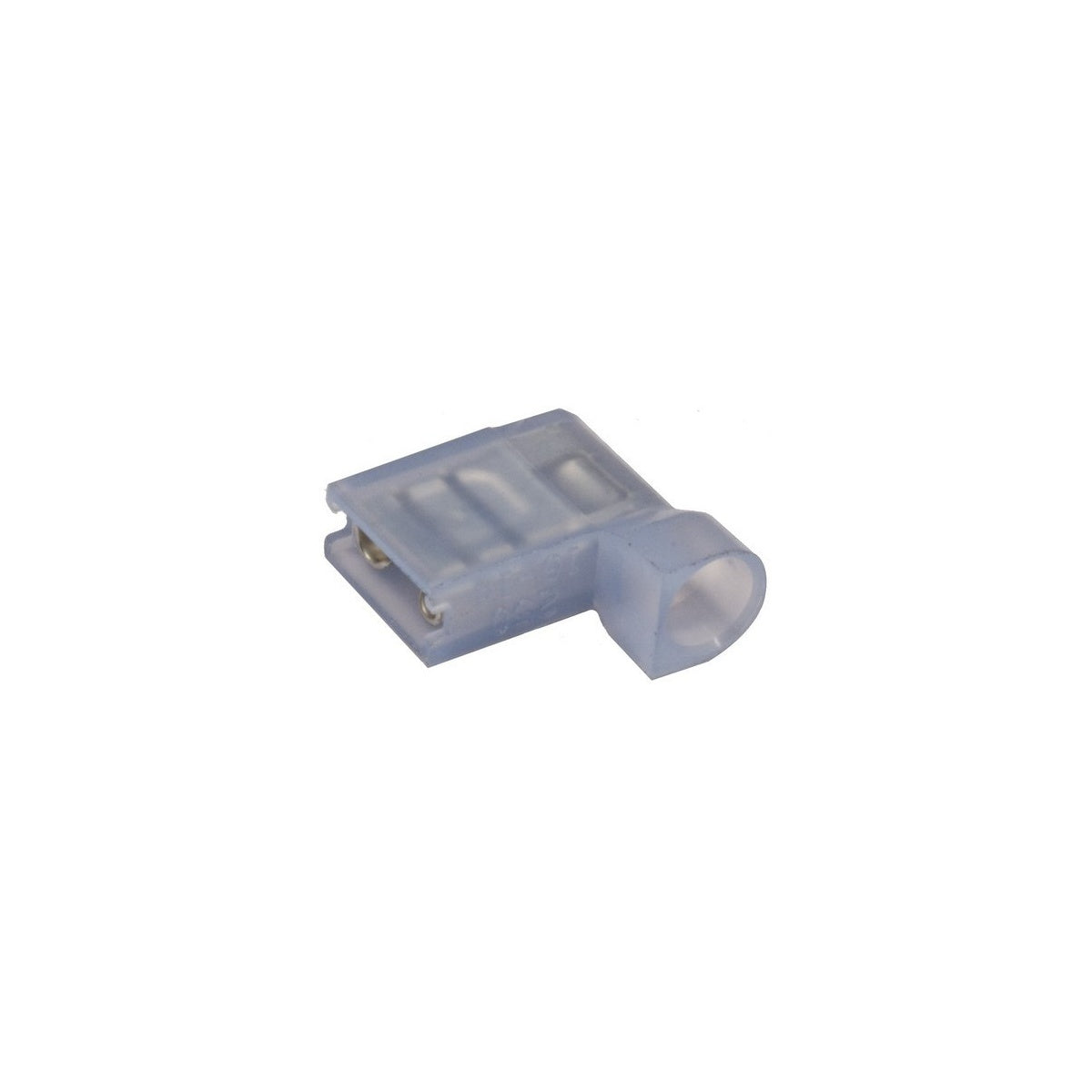

Nylon Fully Insulated Flag Female Disconnects - 16-14 Wire, .032x.250 Tab Electrical Connector

This nylon insulated right angle flag female disconnect is designed for reliable electrical connections in wire and cable assemblies. Suitable for use in electrical distribution and lighting solutions, it accommodates 16-14 AWG wires, providing secure and corrosion-resistant terminations. The product is ideal for switchgear suppliers and electrical distributors requiring durable and easy-to-identify connectors.

Specifications

• Material: Brass
• Insulation Type: Nylon
• Color: Blue
• Wire Range: 16-14 AWG
• Tab Size: .032 x .250 inches
• Finish: Electro-Tin Plated
• Temperature Rating: 105¬∞C
• Voltage Rating: 300 V
• Flammability Rating: UL94V-0
• Amp Rating: 14 AWG - 15 Amps, 16 AWG - 10 Amps
• Dimensions (inches): Length 0.598, Diameter 0.083, F 0.299, Width 0.26

Features

• Color-coded nylon insulation for easy identification
• Manufactured from high strength copper alloy brass
• Electro-tin plating provides corrosion resistance
• Expanded insulation eliminates strand hang-up and offers strain relief
• Excellent UV, temperature, and chemical resistance
• Wire range stamped on the surface for easy interpretation
• Brazed seams prevent splitting under maximum pressure
• Serrated barrel ensures excellent electrical contact and pull-out force resistance
• UL, cUL, and RoHS certified
