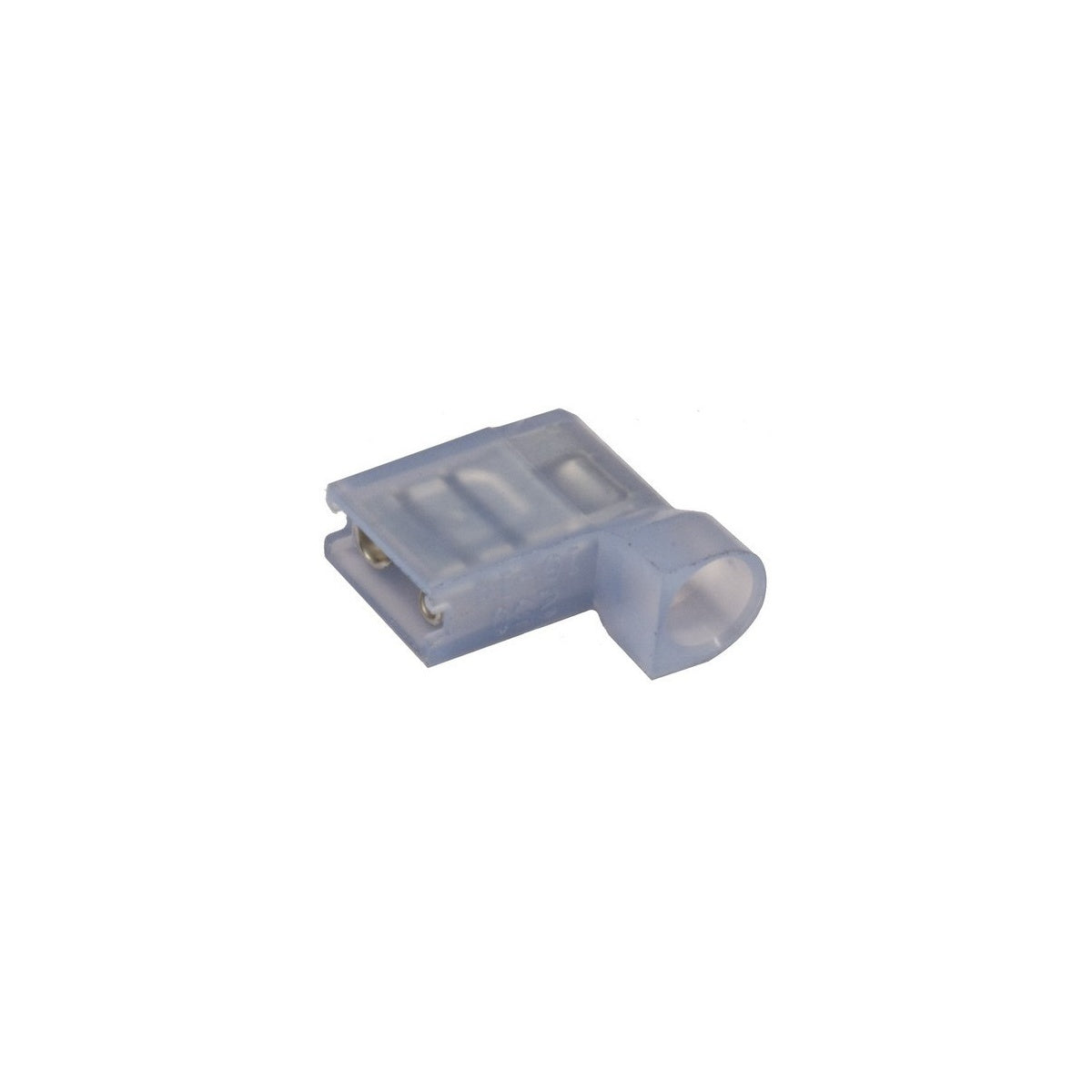

Nylon Fully Insulated Flag Female Disconnects - 16-14 Wire, .032x.187 Tab

This nylon insulated right angle flag female disconnect is designed for secure and reliable electrical connections in wire and cable applications. Suitable for electrical distributors and switchgear suppliers, it supports 16-14 AWG wire sizes with a .032 x .187 inch tab, offering corrosion resistance and strain relief in demanding environments.

Specifications

• Material: Brass
• Insulation Type: Nylon
• Finish: Electro-Tin Plated
• Color: Blue
• Wire Range: 16-14 AWG
• Tab Size: .032 x .187 inches
• Temperature Rating: 105¬∞C
• Voltage Rating: 300 V
• Flammability Rating: UL94V-O
• Amp Rating: 14 AWG - 15 Amps, 16 AWG - 10 Amps
• Dimensions (inches): Length 0.598, Diameter 0.083, F 0.276, Width 0.197
• Product Weight: 0.0030 lbs
• Certifications: UL, cUL, RoHS

Features

• Color coded nylon insulation for easy identification
• Manufactured from high strength copper alloy (brass)
• Electro-tin plated for corrosion resistance
• Expanded insulation eliminates strand ‚Äúhang up‚Äù and provides strain relief
• Excellent UV, temperature, and chemical resistance
• Wire range stamped on surface for easy interpretation
• Brazed seams prevent splitting under maximum pressure
• Serrated barrel ensures excellent electrical contact and pull-out force resistance

Downloads & Links

• Spec Sheet
