Nylon Fully Insulated Disconnects Male - 12-10 Wire, .250x.032 Tab | Electrical Connector

This nylon fully insulated male disconnect is designed for reliable electrical connections in wire and cable applications. Manufactured by Morris Products, it is suitable for electrical distributors and switchgear suppliers requiring durable, corrosion-resistant connectors for 12-10 AWG wire sizes. The yellow nylon insulation provides easy identification and excellent protection against UV, temperature, and chemical exposure, making it a practical solution in lighting and electrical distribution systems.

Specifications

• Material: Brass
• Finish: Electro-Tin Plated
• Color: Yellow
• Wire Range: 12-10 AWG
• Tab Size: 0.250 x 0.032 inches
• Temperature Rating: 105¬∞C
• Voltage Rating: 300 V
• Flammability Rating: UL94V-0
• Amp Rating: 20 Amps (12 AWG), 24 Amps (10 AWG)
• Product Weight: 0.0060 lbs

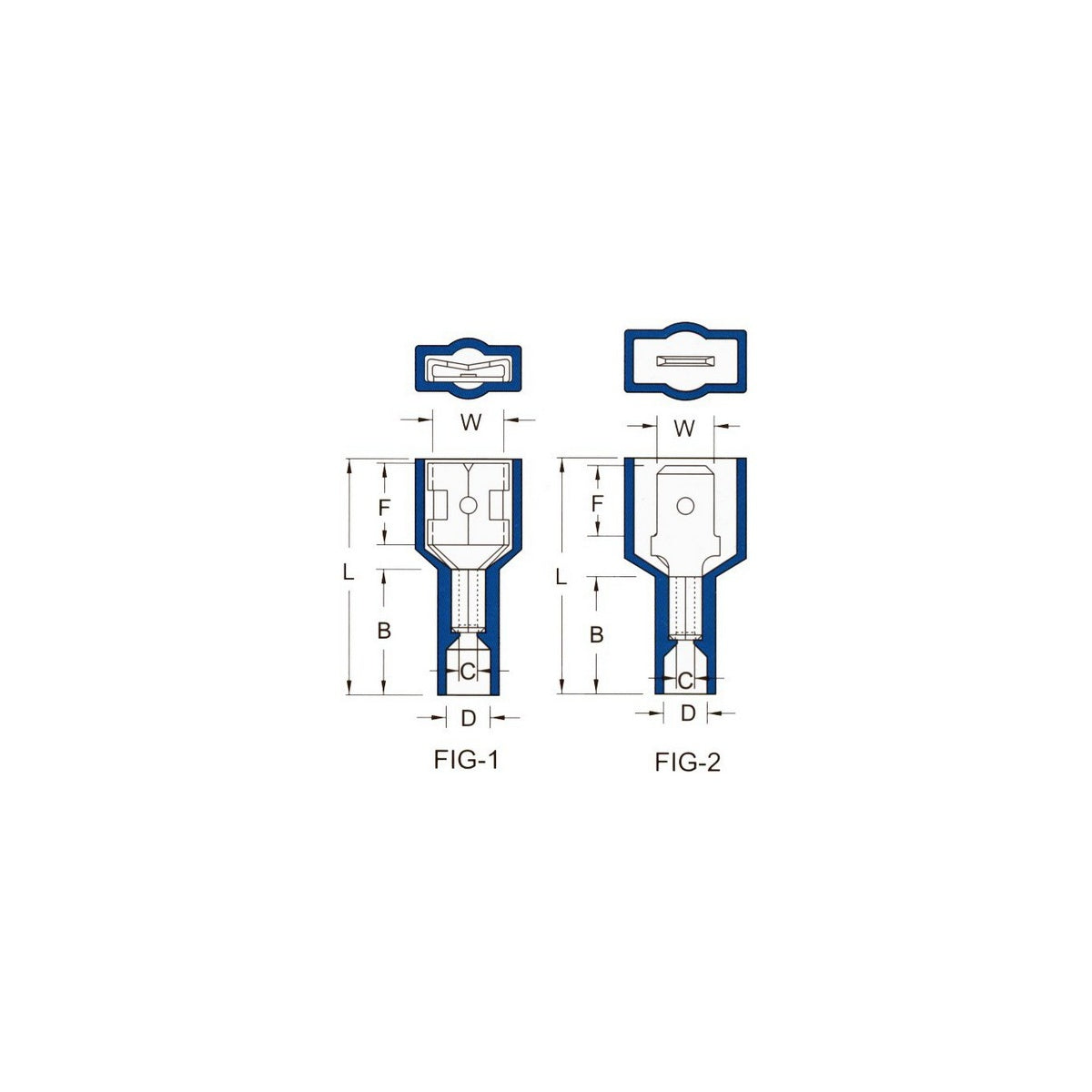

• Dimensions (inches): Length 0.984, B 0.512, C 0.134, D 0.248, F 0.303, W 0.25
• Certifications: UL, cUL, RoHS

Features

• Nylon color-coded insulation for easy identification
• Manufactured from high-strength copper alloy (brass) for durability
• Electro-tin plated for corrosion resistance
• Expanded insulation design eliminates strand hang-up and provides strain relief
• Wire range stamped on surface for easy interpretation
• Brazed seams prevent splitting under maximum pressure
• Serrated barrel ensures excellent electrical contact and pull-out force resistance

Downloads & Links

• Spec Sheet
