Nylon Fully Insulated Disconnects Female - 12-10 Wire, .250x.032 Tab Electrical Connector

This nylon fully insulated female disconnect is designed for reliable electrical connections in wire and cable applications. Suitable for 12-10 AWG wire sizes, it is ideal for use by electrical distributors and switchgear suppliers requiring durable and corrosion-resistant connectors in lighting solutions and general electrical wiring.

Specifications

• Material: Brass
• Finish: Electro-Tin Plated
• Color: Yellow
• Wire Range: 12-10 AWG
• Tab Size: 0.250 x 0.032 inches
• Temperature Rating: 105¬∞C
• Voltage Rating: 300 V
• Flammability Rating: UL94V-0
• Amp Rating: 20 Amps (12 AWG), 24 Amps (10 AWG)

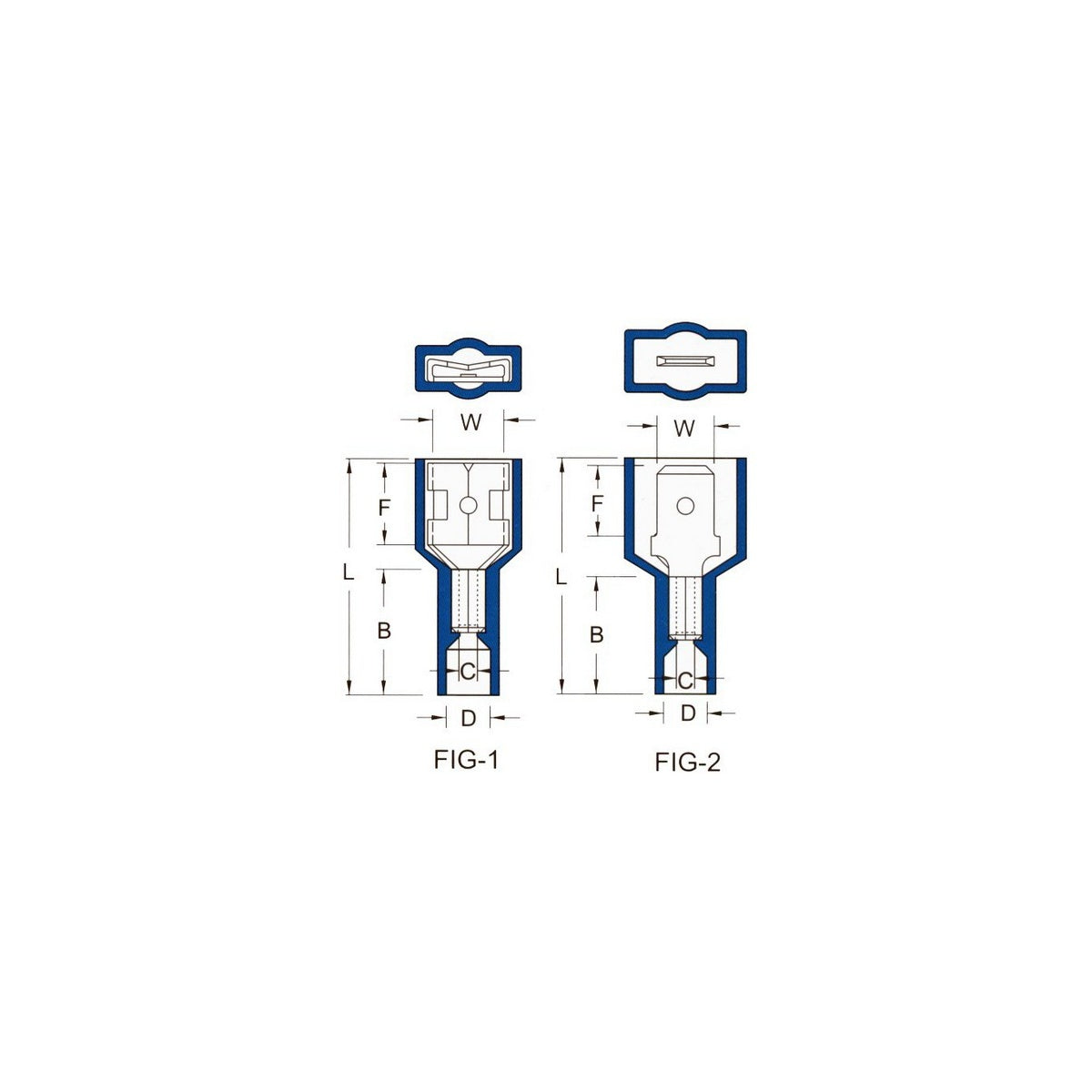

• Dimensions (inches): L 0.945, B 0.512, C 0.134, D 0.248, F 0.287, W 0.26
• Stock Thickness: 0.016 inches

Features

• Nylon color-coded insulation for easy identification
• Manufactured from high-strength copper alloy for durability
• Electro-tin plated for corrosion resistance
• Expanded insulation eliminates strand hang-up, provides strain relief, and offers excellent UV, temperature, and chemical resistance
• Wire range stamped on the surface for easy interpretation
• Brazed seams prevent splitting under maximum pressure
• Serrated barrel provides excellent electrical contact and pull-out force resistance
• UL, cUL, and RoHS certified
