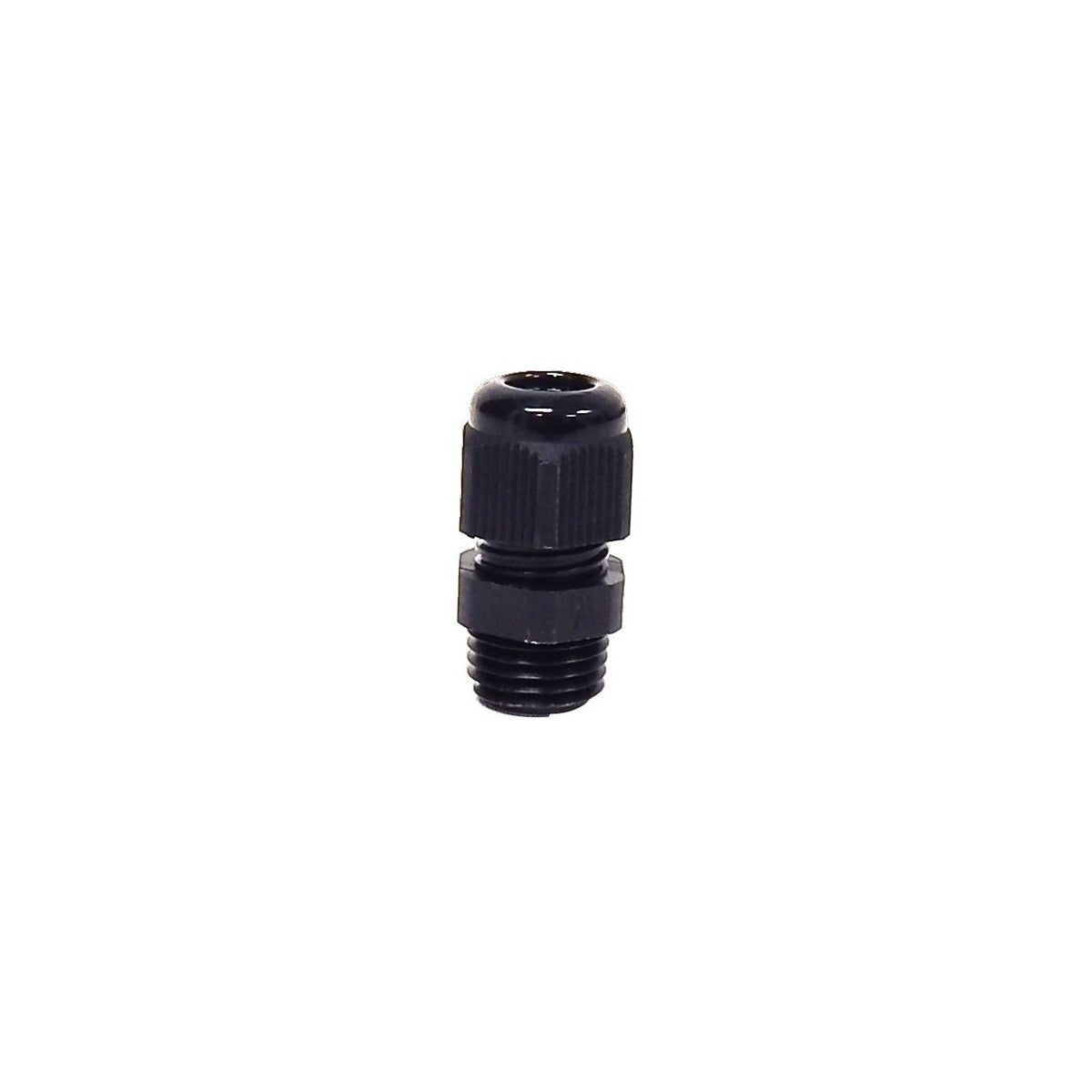

Nylon Cable Glands NPT Thread 1-1/4” – Electrical Cable Glands

The Nylon Cable Glands with NPT thread 1-1/4” are designed to provide secure strain relief and sealing for electrical cables in various industrial and commercial applications. Manufactured by Morris Products, these cable glands are suitable for electrical distributors and switchgear suppliers requiring reliable wire and cable management solutions. Made from UL-approved Nylon 66, they offer resistance to common chemicals and solvents while ensuring durability in demanding environments.

Specifications

• Material: Nylon 66 (UL approved, 94V-2 flame rating)
• Thread Type: NPT Thread 1-1/4”
• Temperature Rating: -22°F to 140°F
• IP Rating: IP68 Submersible & Dustproof
• Product Weight: 0.2400 lbs
• Manufacturer Part #: 22555

Features

• Seal & Clamp System tightens in a circular sequence on the sealing ring for superior strain relief without twisting or damaging cables
• Quick installation by pushing the cable through the liquid-tight nylon strain relief and tightening the nut
• Internal ratchet with self-locking feature protects against vibration
• ‘Collet’ design accommodates various sizes of cords, cables, and tubing
• Resistant to most common chemicals and solvents
• No disassembly required for installation
• Locknut sold separately

Downloads & Links

• Spec Sheet
