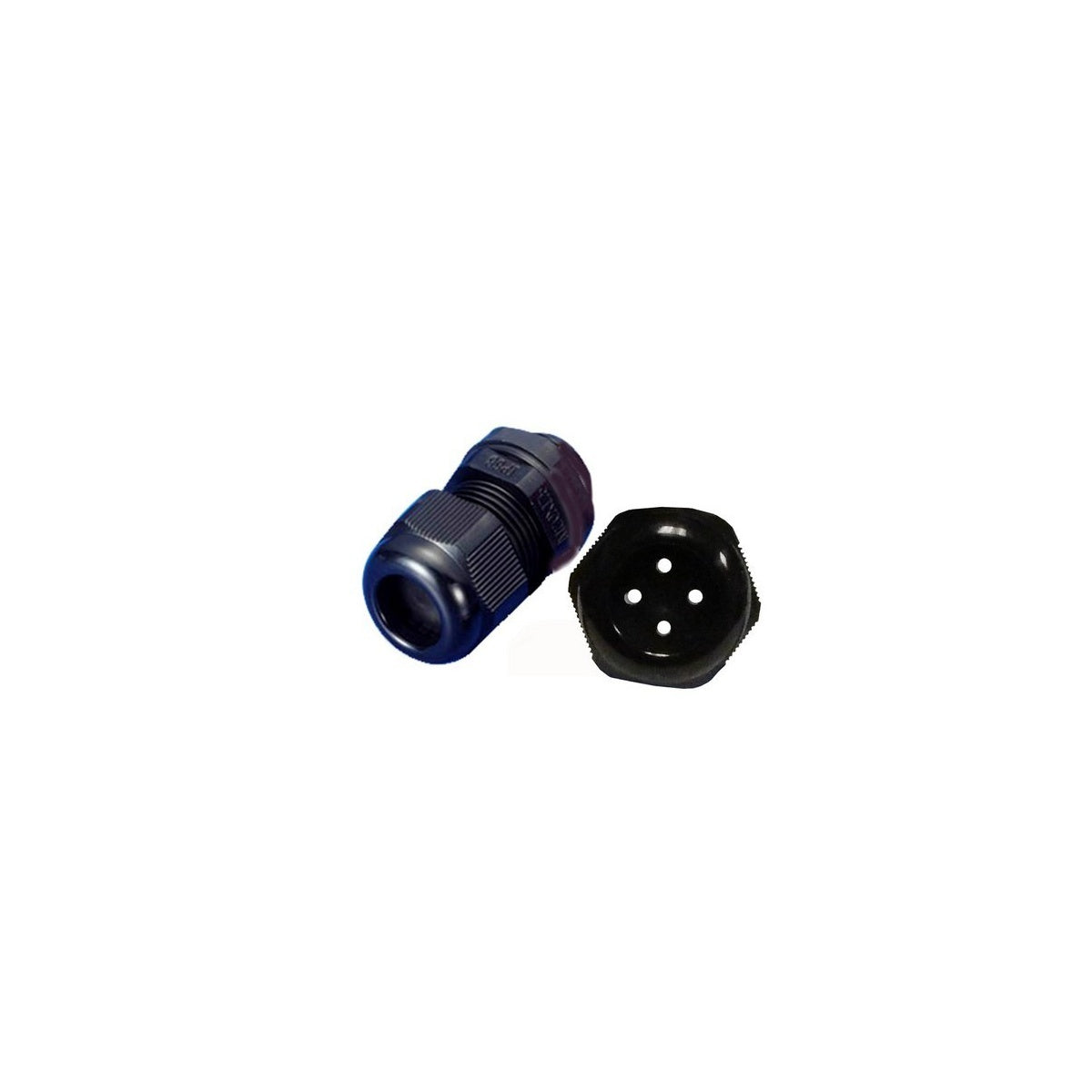

Nylon Cable Glands - Multi-Conductor - NPT Thread 4 Hole 1/2" .134" - .198" | Electrical Cable Glands

This nylon multi-conductor cable gland with NPT thread is designed for organizing and securing multiple cables in electrical installations. Suitable for electrical distributors and switchgear suppliers, it provides watertight strain relief and protection against environmental factors, making it ideal for wire and cable management in industrial and commercial lighting solutions.

Specifications

• Material: Nylon 66
• Cable Range: .134" - .198"
• Thread Type: 1/2" NPT (National Pipe Thread)
• Product Weight: 0.0530 lbs
• Flammability Rating: 94V-2
• Temperature Rating: -22¬∞F to 140¬∞F
• Color: UV Resistant Black
• IP Rating: IP68 (Submersible & Dustproof)
• UL Recognized

Features

• Multi-hole design organizes multiple cables within a single gland
• Seal & clamp system provides outstanding strain relief without twisting or damaging cables
• Internal ratchet with self-locking feature protects against vibrations
• Easy installation by pushing cable through liquid-tight nylon strain relief and tightening locknut (sold separately)
• Threads securely into panel for clearance
• Collet body design accommodates various sizes of cords, cables, and tubing
• Resistant to most common chemicals and solvents
• Wide clamping range with no disassembly required

Downloads & Links

• Spec Sheet
